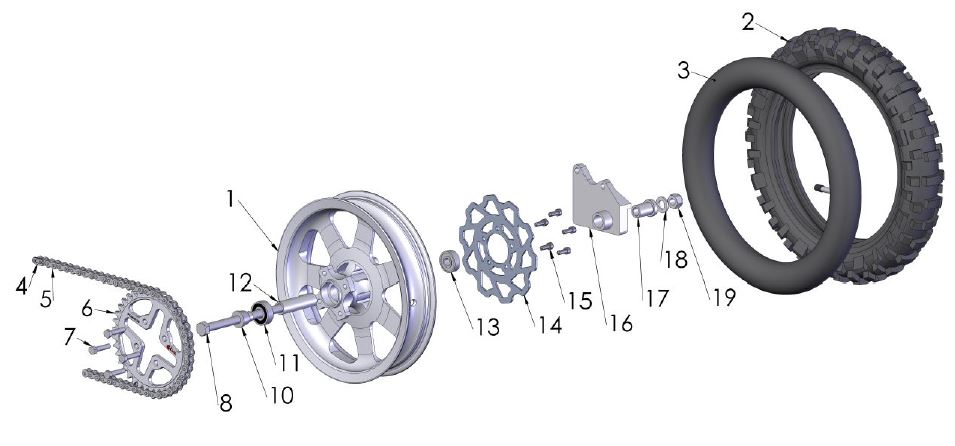

| Ref | Part Number | Description | Retail | |
|---|
| 1 | WAKG2007R | WHEEL REAR 10\" DISC W/BEARINGS | $ 332.59 |
|
| 2 | WCMU1075D | R/B WCMU1075D32 - TIRE - REAR - 70/100-10 - DUNLOP MX52 | $ 38.93 |
|
| 3 | WCMUTU10 | TUBE - 250/275 - 10 INCH | $ 9.43 |
|
| 4 | PCMU0001 | CHAIN - MASTER LINK | $ 2.2 |
|
| 5 | PCMU0088 | CHAIN 420H 88L FOR JR/P3 14/37 | $ 23.23 |
|
| 6 | PCMU0138 | R/B PCC50138 - SPROCKET - 38T ALUM 420 | $ 54.39 |
|
| 6A | PCMU0134 | R/B PCC50134 - SPROCKET - 34T ALUM 420 | $ 54.39 |
|
| 6B | PCMU0135 | R/B PCC50135 - SPROCKET - 35T ALUM 420 | $ 54.39 |
|
| 6C | PCMU0136 | R/B PCC50136 - SPROCKET - 36T ALUM 420 | $ 54.39 |
|
| 6D | PCMU0137 | R/B PCC50137 - SPROCKET - 37T ALUM 420 | $ 54.39 |
|
| 6E | PCMU0139 | R/B PCC50139 - SPROCKET - 39T ALUM 420 | $ 54.39 |
|
| 6F | PCMU0140 | R/B PCC50140 - SPROCKET - 40T ALUM 420 | $ 54.39 |
|
| 6G | PCMU0141 | SPROCKET 41T ALUM NO DAMP | $ 54.39 |
|
| 6H | PCMU0142 | SPROCKET 42T ALUM NO DAMP | $ 54.39 |
|
| 7 | HCBH0702 | M7 X 30 HH ZINC | $ 1.09 |
|
| 7A | HCWF0701 | 7MM FLAT WASHER | $ 0.53 |
|
| 7B | HCNL0701 | M7 LOCKNUT | $ 1.09 |
|
| 8 | WCMU0016 | M12 X 195MM AXLE / PIVOT BOLT | $ 32.14 |
|
| 10 | WCMU0101 | SPACER WHEEL 50CC FR & RR LH | $ 14.33 |
|
| 11 | WCMU0120 | BEARING - WHEEL-SEALED HD | $ 20.01 |
|
| 12 | WCMU0035 | SPACER - WHEEL BEARING - REAR 50CC - THROUGH 2017 | $ 14.33 |
|
| 13 | WCMU0020 | BEARING - WHEEL (SEALED) | $ 16.56 |
|
| 14 | BCMU0502 | BRAKE - ROTOR REAR - 160MM | $ 65.52 |
|
| 15 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 16 | BCKG0103 | CARRIER - BRAKE CALIPER - REAR 50CC | $ 43.26 |
|
| 17 | BCKG0006 | SPACER - FLOATING CALIPER CARRIER - 50CC | $ 14.33 |
|
| 18 | HCWF1202 | 12MM FLAT WASHER | $ 0.53 |
|
| 19 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| ACCESSORY | BCKG0104 | BRAKE CARRIER CUSHION | $ 14.98 |
|
| ACCESSORY | PCMU0236 | R/B PCC50236 (WITH HKMU0002 BOLT KIT IF NEEDED) | $ 58.84 |
|
| ACCESSORY | PCMU0237 | R/B PCC50237 (WITH HKMU0002 BOLT KIT IF NEEDED) | $ 58.84 |
|
| ACCESSORY | PCMU0238 | R/B PCC50238 (WITH HKMU0002 BOLT KIT IF NEEDED) | $ 58.84 |
|
| ACCESSORY | PCMU0239 | R/B PCC50239 (WITH HKMU0002 BOLT KIT IF NEEDED) | $ 58.84 |
|
| ACCESSORY | PCMU0240 | OBSOLETE - R/B PCC50240 (WITH HKMU0002 BOLT KIT IF NEEDED) | $ 58.84 |
|
| ACCESSORY | WCMU1075D32 | R/B WCMU1075D33 - TIRE - REAR - 70/100-10 - DUNLOP MX3S | $ 42.27 |
|
