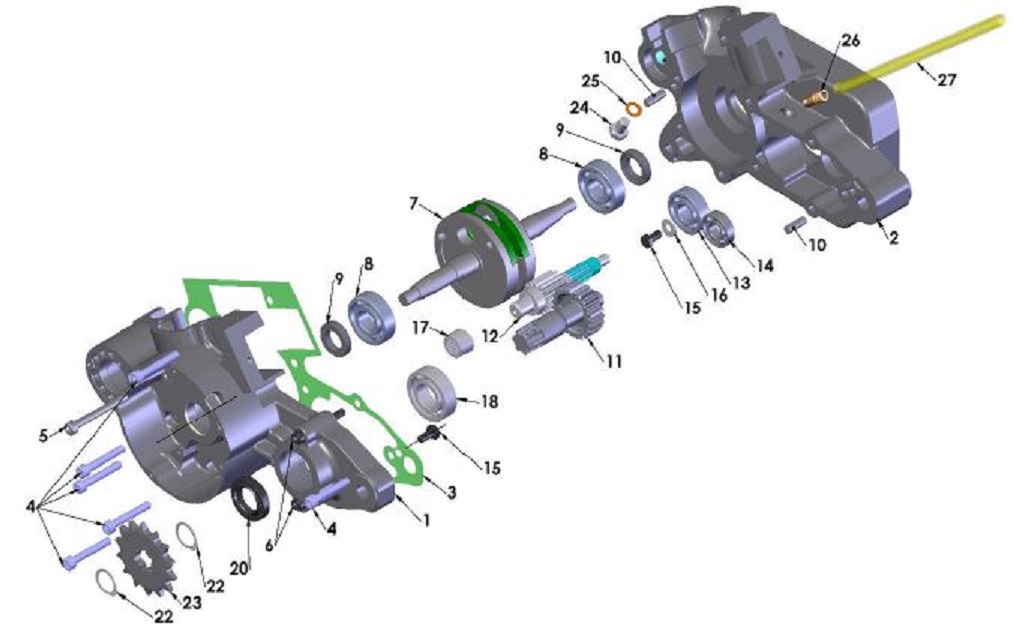

| Ref | Part Number | Description | Retail | |
|---|
| 1 | EKCS0003 | | $ |
|
| 3 | ZCCS0005 | GASKET - CENTERCASE 2010 50 | $ 14.33 |
|
| 4 | HCBC0605 | R/B HCBC0640 - M6 X 40 SHCS ZINC | $ 1.09 |
|
| 5 | HCBC0608 | R/B HCBC0655 - M6 X 55 SHCS ZINC | $ 1.09 |
|
| 6 | HCBC0606 | R/B HCBC0645 - M6 X 45 SHCS ZINC | $ 1.09 |
|
| 7 | ECMU0057 | R/B ECMU0258 - CRANKSHAFT - 41.7MM STROKE - 3 SIDE SPLINE | $ 250.24 |
|
| 8 | ECMU0016 | BEARING - 50CC CRANKSHAFT & 65CC TRANS | $ 22.12 |
|
| 9 | ECMU0118 | SEAL - CRANKSHAFT - 50CC STD | $ 11.44 |
|
| 10 | HCDP1401 | DOWELPIN - 1/4 X 5/8 - HARDENED | $ 1.09 |
|
| 11 | ECMU0999 | GEAR OUTPUT WIDE TOOTH 50 | $ 165.67 |
|
| 12 | ECMU0100 | GEAR - INPUT - 50CC FOR CFD | $ 130.06 |
|
| 13 | ECMU0001 | BEARING - TRANS. SEC. GEAR | $ 22.12 |
|
| 14 | ECKG0031 | BEARING 6001 NO SEALS | $ 9.88 |
|
| 15 | HCBH0612 | M6 X 12 HH 10.9 ZINC-FLAKE - ROTOR BOLTS | $ 1.09 |
|
| 16 | HCWF0316 | WASHER - FLAT - ID .25 X OD .56 X .051 THK - BRNG RETAINER | $ 0.53 |
|
| 17 | ECMU0020L | BEARING - PRECISION - LEFT SIDE | $ 23.23 |
|
| 18 | ECKGBR01 | BEARING OUTPUT- 50 & 65 | $ 29.91 |
|
| 20 | ECMU0114 | SEAL - OUTPUT - 50CC 2016 | $ 8.77 |
|
| 22 | ECKGSR03 | SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT | $ 2.54 |
|
| 23 | PCKG0014 | SPROCKET 14T | $ 18.78 |
|
| 23A | PCKG0013 | SPROCKET 13T | $ 18.78 |
|
| 23B | PCKG0015 | SPROCKET 15T | $ 18.78 |
|
| 23C | PCKG0016 | SPROCKET 16T | $ 18.78 |
|
| 24 | HCBH0805 | M8 X 12 HH ZINC | $ 1.09 |
|
| 25 | HCWC0000 | CRUSH WASHER - 8MM COPPER 0.8 THICK | $ 1.09 |
|
| 26 | ECMU0233 | R/B ECMU0233P - VENT HOSE NIPPLE (LARGE) | $ 9.88 |
|
| 27 | ECMU0557 | HOSE CRANKCASE VENT 2010 - CURRENT 50cc | $ 8.88 |
|
| ACCESSORY | PCMU0213 | SPROCKET 13T 415 CHAIN | $ 22.12 |
|
| ACCESSORY | PCMU0214 | SPROCKET 14T 415 CHAIN | $ 22.12 |
|
| ACCESSORY | PCMU0215 | SPROCKET 15T 415 CHAIN | $ 22.12 |
|
| ACCESSORY | PCMU0216 | SPROCKET 16T 415 CHAIN | $ 22.12 |
|
| NOT SHOWN | ECMU0176 | SHIM - SPROCKET - 0.2 THK 20/28 ID/OD | $ 3.32 |
|
| NOT SHOWN | ECMU0177 | SHIM - SPROCKET - 0.3 THK 20/28 ID/OD | $ 3.32 |
|
| NOT SHOWN | ECMU0178 | SHIM - SPROCKET - 0.5 THK 20/28 ID/OD | $ 3.32 |
|
