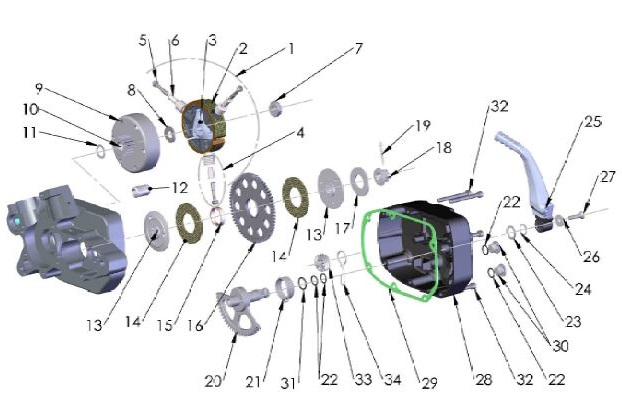

| Ref | Part Number | Description | Retail | |
|---|
| 1 | CAMU0002 | CLUTCH - KING/JR - COMPLETE ASSY - 5GX - BLUE BAG | $ 328.88 |
|
| 2 | CAMU0009 | 3 SHOES & STACKS W BOLTS - UNIVERSAL 50cc - 5GX - BLUE BAG | $ 208.88 |
|
| 3 | CCMU0005 | CLUTCH ARBOR - TRI-SIDE | $ 127.84 |
|
| 4 | CAMU0014 | WASHER STACKS - KING/JR - SET OF 3 - CLUTCH - 5GX - BLUE BAG | $ 41.88 |
|
| 5 | HCBT0001 | BOLT - TORX - 5GX CLUTCH - M6 X 29 - SPECIAL | $ 8.77 |
|
| 6 | CCMU0008 | SLEEVE - CLUTCH STACK 5GX | $ 4.32 |
|
| 7 | ECMU0018 | CRANKSHAFT START NUT - CLUTCH NUT | $ 31.02 |
|
| 7A | ECDC0030 | BELLVILLE - LOCK WASHER - 10MM | $ 3.2 |
|
| 8 | CCMU0007 | SHIM - CLUTCH BACKING SPACER - 3 SPLINE | $ 14.33 |
|
| 9 | ECMU0120 | CLUTCH BASKET NEDL BRNG - V4 | $ 99.57 |
|
| 10 | ECMU0119 | BEARING - NEEDLE - CLUTCH 3 SHOE | $ 14.33 |
|
| 11 | ECMU0040 | SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15 | $ 2.76 |
|
| 12 | ECMU0132 | FITTING-COOLANT | $ 27.68 |
|
| 13 | ECMU0306 | SLIP HUB V3 CFD | $ 42.82 |
|
| 14 | ECMU0249 | FRICTION MATERIAL V3 CFD THICK | $ 18.78 |
|
| 15 | ECMU0305 | BUSHING V3 CFD 7MM | $ 16.22 |
|
| 16 | ECMU0301 | GEAR V3 CFD | $ 176.8 |
|
| 17 | ECMU0308 | BELLEVILLE SPRING V3 CFD | $ 10.99 |
|
| 18 | ECMU0307 | NUT V3 CFD | $ 20.56 |
|
| 19 | HCCP0002 | R/B HCCP0010 COTTERPIN 3/32 X 1 1/2\" | $ 0.53 |
|
| 20 | EAMU0001 | OBSOLETE - GEAR AND SHAFT - KICKSTART - 50CC | $ 98.9 |
|
| 21 | ECMU0116 | SPRING - KICKSTART RETURN - 50CC | $ 15.56 |
|
| 22 | ZCMUB014 | O-RING - KICK SHAFT & OIL FILL PLUG | $ 1.42 |
|
| 23 | HCWS1622 | WASHER - KICK START BACKUP | $ 2.09 |
|
| 24 | ECDC0036 | SNAP RING - EXT 16MM - SPRING RET | $ 2.2 |
|
| 25 | EAMU0011 | LEVER KICK START ASSEMBLY | $ 83.32 |
|
| 26 | ECMU0250 | WASHER - KICK ARM | $ 9.88 |
|
| 27 | HCFH0625 | M6 X 25 FLAT HEAD ZINC | $ 1.09 |
|
| 28 | ECMU0175 | COVER - W/SEAL - CLUTCH/KICKER 2016 50 | $ 154.54 |
|
| 29 | ZCMU0030 | GASKET - CLUTCH COVER - PRE-VENOM | $ 13.22 |
|
| 30 | ECMU0168 | R/B ECMU0272 - OIL FILL PLUG ALUMINUM O-RING STYLE | $ 10.99 |
|
| 31 | ZCMUOR24 | O-RING - KICK SHAFT - CX50 2016 | $ 2.48 |
|
| 32 | HCBC0608 | R/B HCBC0655 - M6 X 55 SHCS ZINC | $ 1.09 |
|
| 33 | ECMU0207 | KICKSTARTER SMALL GEAR | $ 37.7 |
|
| 34 | ECMUSP01 | SPRING - KICK START DOG-SM.SPRING | $ 8.88 |
|
| KIT | HKCP0001 | COTTERPIN PACK OF 10 1/8\" X 1 1/4\" | $ 4.43 |
|
| KIT | EKMU0002 | KICKSTART PIVOT KIT SPRING-BALL-SCREW | $ 7.65 |
|
| KIT | HKAM0022 | HARDWARE KIT - CLUTCH SHIM | $ 29.5 |
|
| KIT | EKMU0033 | V3 CFD REFRESH KIT FOR 2011 & LATER | $ 50.61 |
|
| TOOL | MCMUTL70 | TOOL - PULLER - CLUTCH & FLYWHEEL - CX50 | $ 27.68 |
|
| TOOL | MCMUTL18 | TOOL - SPROCKET SOCKET - HIGH TORQUE | $ 43.26 |
|
| TOOL | EAMU0004 | TOOL - CFD GEAR STOP ASSEMBLY | $ 43.26 |
|
| TOOL | ECMU0078 | TOOL - SOCKET - CLUTCH NUT - CX50 | $ 35.59 |
|
