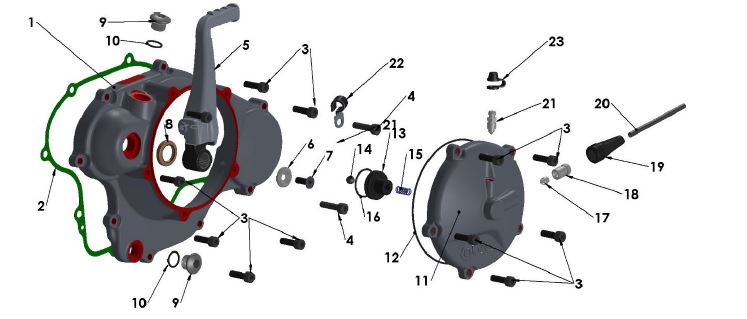

| Ref | Part Number | Description | Retail | |
|---|
| 1 | ECC60178 | R/B ECC60239 -CLUTCH COVER - CX65 2015 - W/O BEARING OR SEAL | $ 199.06 |
|
| 2 | ZCC60016 | GASKET - CLUTCH COVER PV 2015 CX65 | $ 13.22 |
|
| 3 | HCBC0602 | R/B HCBC0620 - M6 X 20 SHCS ZINC | $ 1.09 |
|
| 4 | HCBC0625 | M6 X 25 SHCS ZINC | $ 1.09 |
|
| 5 | EAMU0011 | LEVER KICK START ASSEMBLY | $ 83.32 |
|
| 6 | ECMU0250 | WASHER - KICK ARM | $ 9.88 |
|
| 7 | HCFH0616 | M6 X 16 FLAT HEAD W ZINC | $ 1.09 |
|
| 8 | ECDC0078 | SEAL - KICKSTARTER | $ 4.32 |
|
| 9 | ECMU0168 | R/B ECMU0272 - OIL FILL PLUG ALUMINUM O-RING STYLE | $ 10.99 |
|
| 10 | ZCMUB014 | O-RING - KICK SHAFT & OIL FILL PLUG | $ 1.42 |
|
| 11 | ECC60179 | CLUTCH COVER CAP - CX65 2015 - | $ 87.88 |
|
| 12 | ZCC60013 | ORING - CLUTCH COVER CAP - 2015 CX65 | $ 2.76 |
|
| 13 | CCC60005 | PISTON - CLUTCH SLAVE - CX65 | $ 22.12 |
|
| 14 | CCEX0009 | BALL 5/16`` CLUTCH & FUEL CAP | $ 2.2 |
|
| 15 | CCC60006 | CLUTCH SLAVE PRELOAD SPRING | $ 6.54 |
|
| 16 | ZCMUOR35 | O-RING - CLUTCH SLAVE (MINERAL OIL) & STEERING STEM SEAL | $ 2.2 |
|
| 17 | BCMU0017 | FERRULE- COMPRESSION - MAGURA | $ 1.09 |
|
| 18 | BCMU0020 | CLUTCH - SLEEVE NUT M10-1 - MAGURA | $ 4.43 |
|
| 19 | BCMU0021 | COVER - FOR SLEEVE NUT | $ 6.54 |
|
| 20 | CCC60010 | R/B CCC60041 - CLUTCH LINE REPLACEMENT KIT 2010 - 2016 | $ 25.46 |
|
| 21 | BCMU0018 | BLEED SCREW 8MM x 1.00 | $ 5.43 |
|
| 22 | CCC60030 | BRACKET - CLUTCH LINE HOLDER | $ 6.66 |
|
| 23 | BCC60034 | CAP - BRAKE/CLUTCH BLEED SCREW | $ 5.08 |
|
| ACCESSORY | EKMU0002 | KICKSTART PIVOT KIT SPRING-BALL-SCREW | $ 7.65 |
|
