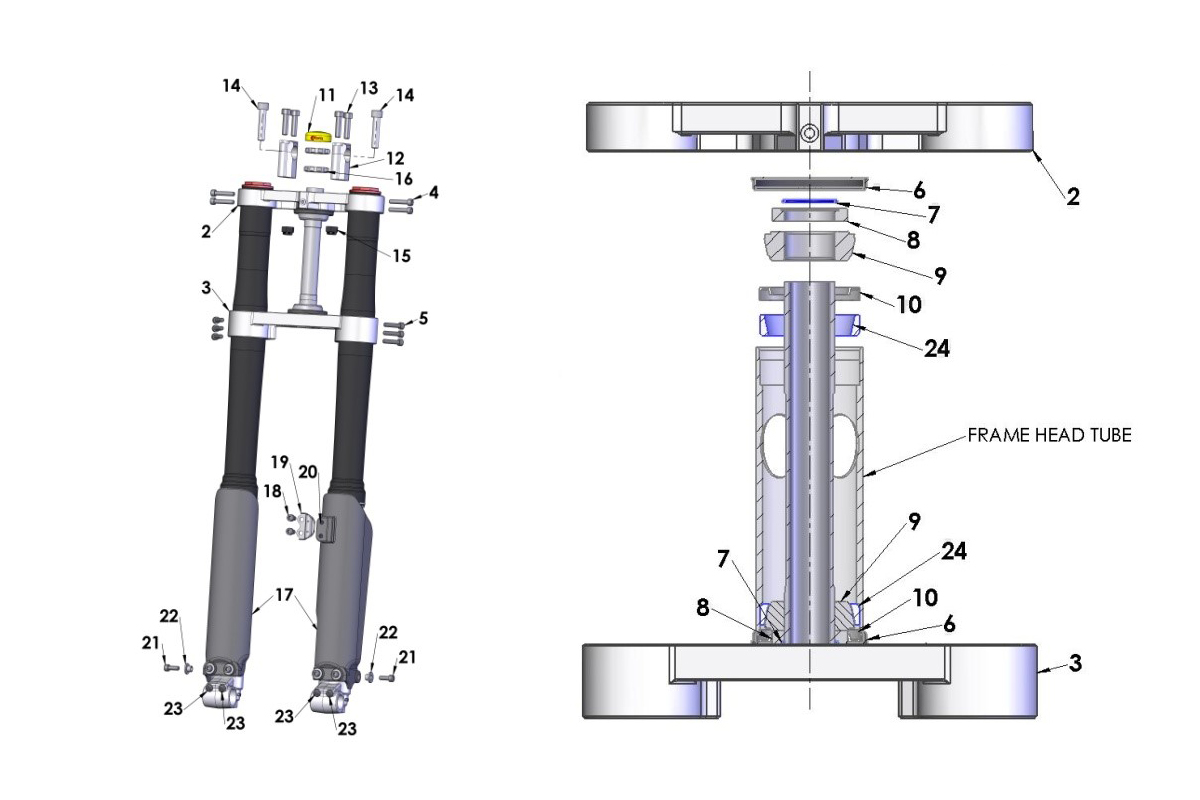

| Ref | Part Number | Description | Retail | |
|---|
| 1 | KAC62013 | FORK SET COMPLETE CX65 37MM | $ 834.42 |
|
| 2 | FCC60062 | TRIPLE CLAMP TOP | $ 154.54 |
|
| 3 | FAC60022 | TRIPLE CLAMP BOTTOM ASSY CX65 37MM | $ 211.3 |
|
| 4 | HCBC0603 | R/B HCBC0630 - M6 X 30 SHCS ZINC | $ 1.09 |
|
| 5 | HCBC0625 | M6 X 25 SHCS ZINC | $ 1.09 |
|
| 6 | FCMU1103 | R/B FCMU0079 - DUST COVER STEER STEM RUBBER | $ 9.43 |
|
| 7 | SCMU0036 | R/B ZCMUOR35 - O-RING - 25.1X1.6BUNA-N | $ 2.2 |
|
| 8 | FCMU0023 | SPACER STEERING STEM SD | $ 8.77 |
|
| 9 | FCMU0004 | BEARING - STEERING TAPERED | $ 16.56 |
|
| 10 | FCMU0024 | SEAL - STEERING STEM - 6MM THK | $ 18.78 |
|
| 11 | FCMU0151 | STEERING STEM CAP | $ 5.54 |
|
| 12 | TKMU0404 | HANDLE BAR RISER KIT - SHORT (STOCK) | $ 48.83 |
|
| 12A | TKMU0403 | HANDLE BAR RISER KIT - TALL | $ 54.39 |
|
| 13 | HCBC0806 | R/B HCBC0830 - M8 X 30 SHCS ZINC | $ 1.09 |
|
| 14 | HCBC1001 | 10 X 45 SHCS ZINC WHEN OUT, USE HCBC1040 | $ 2.98 |
|
| 15 | HCNL1001 | M10 LOCKNUT-1.5 THREAD PITCH | $ 1.64 |
|
| 16 | HCNJ0102 | JAM NUT STEERING STEM | $ 14.33 |
|
| 17 | KCC60014 | OBSOLETE - GUARD - FORK - SET CX65 - 2009 - 2021 | $ 29.91 |
|
| 18 | HCBC0612 | M6 X 12 SHCS ZINC | $ 1.09 |
|
| 19 | BCC60015 | BRAKELINE CLAMP | $ 5.54 |
|
| 20 | HCNS0601 | M6 NUT DIN 934 CLASS 8 - ZINC CLEAR | $ 0.53 |
|
| 21 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 22 | TCC60019 | WASHER - CHAIN SLIDER AND FORK GUARD | $ 2.76 |
|
| 23 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 24 | FCMU0011 | RACE FOR STEERING HEAD | $ 8.77 |
|
| ACCESSORY | FKMU0003 | KIT - STEERING STEM SEALS AND SPACERS 2012-2015 | $ 99.02 |
|
| TOOL | MCMUTL11 | TOOL - SOCKET JAM NUT STEERING HEAD | $ 43.26 |
|
| TOOL | MCMUTL44 | TOOL - STEERING STEM BEARING AND SEAL INSTALLER AS | $ 72.2 |
|
