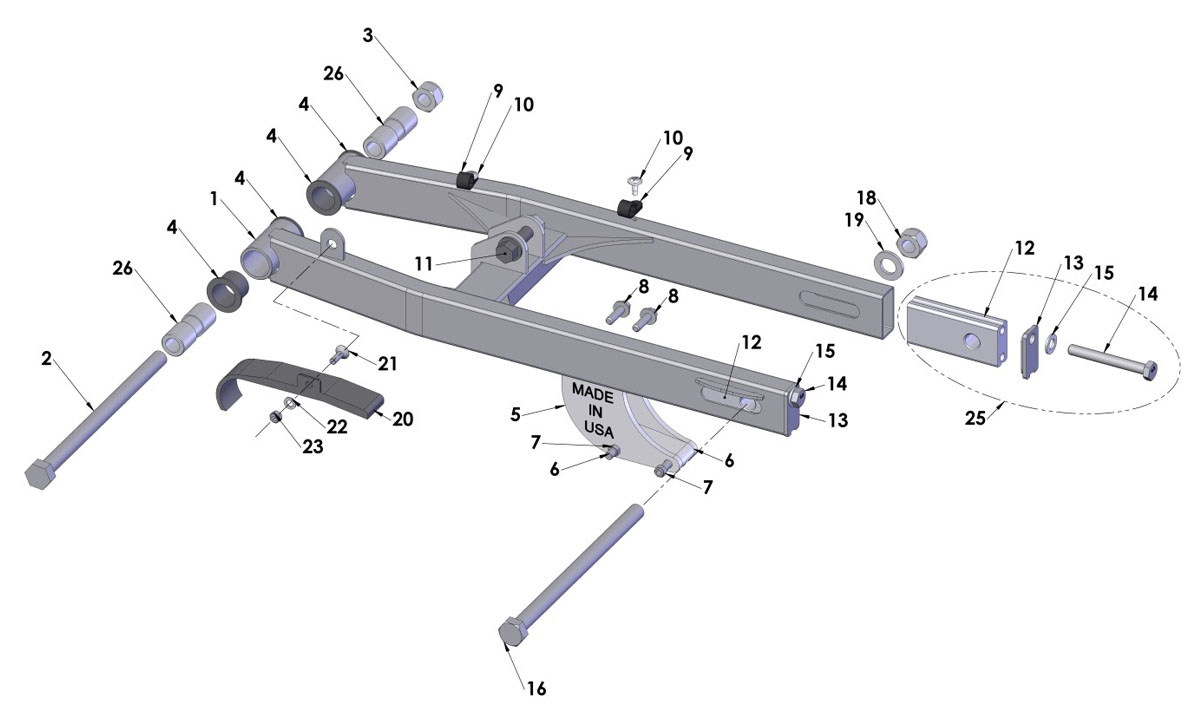

| Ref | Part Number | Description | Retail | |
|---|
| 1 | GACS2010 | R/B GACS2017 - SWINGARM WELDED ASSY- 2010 KING | $ 194.6 |
|
| 2 | HCBH1203 | R/B WCMU0016 - M12 X 188.5 PIVOT BOLT | $ 32.14 |
|
| 3 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| 4 | GCMU0001 | SWINGARM BUSHING 1-INDIVIDUAL | $ 10.55 |
|
| 5 | PAFW0001 | R/B PAMU0001 -CHAIN BLOCK ASSY - FACTORY WORKS EDITION - FWE | $ 49.94 |
|
| 6 | HCBFT640 | R/B HCBFT635 M6 X 40 FLAT HEAD | $ 1.09 |
|
| 7 | HCNL0601 | M6 LOCKNUT | $ 1.09 |
|
| 8 | HCBF0620 | M6 X 20 FLANGE HD HEX 8MM ZINC 8.8 | $ 1.09 |
|
| 9 | HCCC0000 | CABLE CLAMP-3/8 INCH | $ 1.09 |
|
| 10 | HCPP0832 | #8X1/2 SELF TAPPING SCREW | $ 1.09 |
|
| 11 | HCBF1040 | R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER | $ 7.65 |
|
| 12 | FCMU0203 | WHEEL PULL | $ 24.35 |
|
| 13 | FCMU0202 | ENDCAP - WHEEL PULL - KING & CM | $ 8.77 |
|
| 14 | HCBH0810 | R/B HCBH1865 M8 X 65 HH FULL THREADS ZINC | $ 1.54 |
|
| 14A | HCWL0801 | 8MM LOCK WASHER STANDARD | $ 0.53 |
|
| 15 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 16 | WCMU0016 | M12 X 195MM AXLE / PIVOT BOLT | $ 32.14 |
|
| 18 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| 19 | HCWF1202 | 12MM FLAT WASHER | $ 0.53 |
|
| 20 | GCMU0017 | TOP SWINGARM GUARD - 50CC - PRE 2017 | $ 16.56 |
|
| 21 | HCFH0516 | M5 X 16 FLAT HEAD | $ 1.09 |
|
| 22 | HCWF0501 | 5MM FLAT WASHER | $ 0.53 |
|
| 23 | HCNL0501 | M5 LOCKNUT | $ 1.09 |
|
| 24 | PCKG0004 | R/B PKMU0001 - CHAIN GUIDE - SLIDER BOTTOM | $ 10.99 |
|
| 25 | FAMU0005 | WHEEL PULL ASSEMBLY | $ 32.25 |
|
| 26 | GCCS0001 | SPACER - SWNGARM PIVOT TUBE KG 10-16 / ALL 50cc 2017- LATER | $ 13.67 |
|
