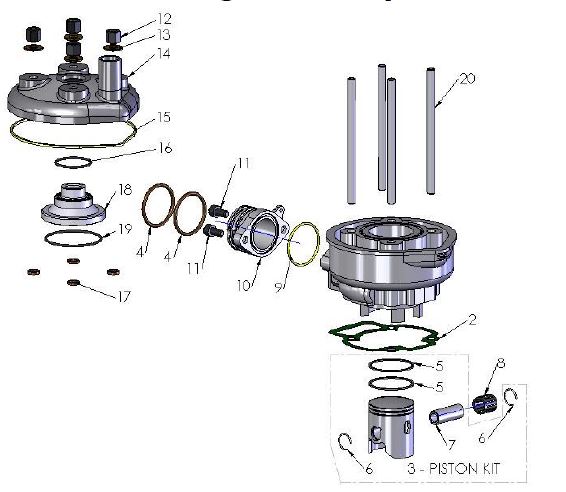

| Ref | Part Number | Description | Retail | |
|---|
| 1 | ECCJ0001 | R/B ECCJ0001\"K\" or \"C\"-CYLINDER - JR/P3 - 2012 TO 2017 | $ 455 |
|
| 2A | ZCMU0703 | GASKET - BASE 0.3MM | $ 8.77 |
|
| 2B | ZCKG0501 | GASKET - BASE 0.4MM | $ 8.77 |
|
| 2C | ZCMU0705 | GASKET - BASE 0.5MM | $ 8.77 |
|
| 2D | ZCMU0706 | GASKET - BASE 0.6MM | $ 8.77 |
|
| 2E | ZCMU0708 | GASKET - BASE 0.8MM | $ 8.77 |
|
| 3A | ECMU0060A | PISTON KIT-39MM BRIDGED A | $ 104.47 |
|
| 3B | ECMU0060B | PISTON KIT-39MM BRIDGED B | $ 104.47 |
|
| 3C | ECMU0060C | PISTON KIT-39MM BRIDGED C | $ 104.47 |
|
| 3D | ECMU0060D | PISTON KIT-39MM BRIDGED D | $ 104.47 |
|
| 4 | ZCMOTE11 | O-RING - EXHAUST FLANGE | $ 3.2 |
|
| 5 | ECMU0155 | RING SET 39MM 50CC | $ 32.14 |
|
| 6 | ECMUSR00 | CIRCLIP - PAIR - 39MM PISTON | $ 4.43 |
|
| 7 | ECKG0012 | WRIST PIN - 50CC | $ 17.22 |
|
| 8 | ECMU0077 | BEARING - WRIST PIN FOR 50CC | $ 16.67 |
|
| 9 | ZCMUOR07 | O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP | $ 4.43 |
|
| 10 | ECMU0086 | EXHAUST FLANGE - 27MM | $ 42.82 |
|
| 11 | HCBC0612 | M6 X 12 SHCS ZINC | $ 1.09 |
|
| 12 | HCNS0703 | 7MM NUT - TALL 4 CYLINDER STUD | $ 3.32 |
|
| 13 | HCWS1401 | 1/4`` WASHER FLAT HARDENED CYLHD | $ 1.09 |
|
| 14 | ECMU0530 | CYLINDER HEAD - OUTER - 05-16 | $ 99.02 |
|
| 15 | ZCMUOR02 | O-RING-GASKET LARGE COBRA ENG | $ 9.43 |
|
| 16 | ZCMUV024 | O-RING - CYLINDER INSERT-SMALL-05 | $ 2.54 |
|
| 17 | ZCMUOR10 | O-RING - CYLINDER STUD - VITON - 05-16 50CC | $ 1.64 |
|
| 18 | ECCS0017 | CYLINDER HEAD INSERT | $ 88.89 |
|
| 19 | ZCMUOR05 | O-RING - HEAD - MEDIUM 50CC | $ 8.88 |
|
| 20 | ECMU0147 | STUD CYLINDER 7MM | $ 10.99 |
|
| KIT | ZKMUOR11 | ORING KIT 2011 2-PIECE HEAD | $ 28.88 |
|
| KIT | ZKCSTE11 | GASKET KIT - TOP END - 50CC | $ 31.2 |
|
| TOOL | MCMUTL03 | TOOL - PISTON STOP | $ 14.45 |
|
