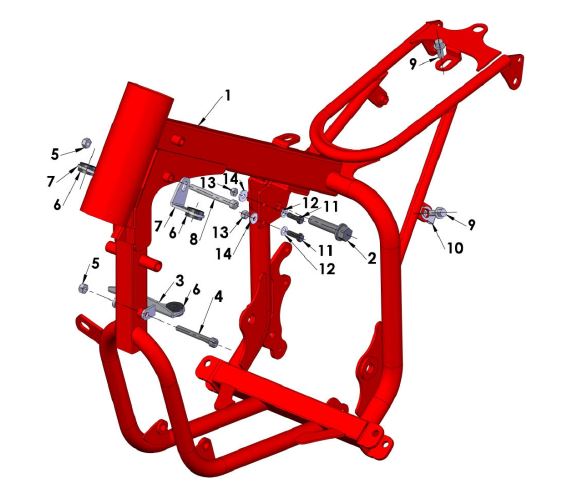

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FACJ2016 | FRAME JR/P3 2016 | $ 641.96 |
|
| 2 | HCBF1040 | R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER | $ 7.65 |
|
| 3 | EACJ0001 | BRACKET ASSY BOTTOM RAD - JR/P3 | $ 22.12 |
|
| 4 | HCBC0608 | R/B HCBC0655 - M6 X 55 SHCS ZINC | $ 1.09 |
|
| 5 | HCNL0601 | M6 LOCKNUT | $ 1.09 |
|
| 6 | MCKGGR00 | GROMMET-UNIVERSAL-COBRA | $ 2.2 |
|
| 7 | ECHA0109 | MOUNT - RADIATOR UPPER - JR/P3 | $ 8.77 |
|
| 8 | HCBC0665 | M6 X 65 SHCS ZINC | $ 1.54 |
|
| 9 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 10 | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $ 2.2 |
|
| 11 | HCBH0502 | OBSOLETE - M5 X 16 HH ZINC | $ 1.09 |
|
| 12 | HCWP0002 | WASHER ID5MM THICK | $ 0.31 |
|
| 13 | HCNL0501 | M5 LOCKNUT | $ 1.09 |
|
| 14 | HCWF0501 | 5MM FLAT WASHER | $ 0.53 |
|
