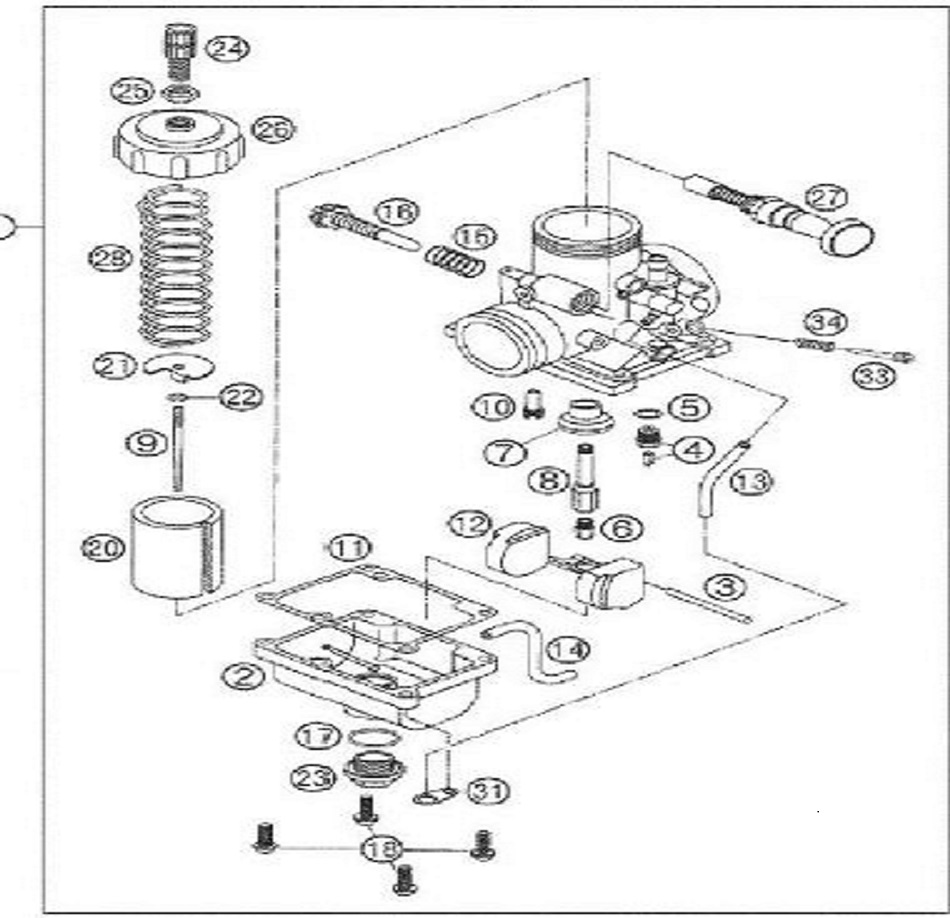

| Ref | Part Number | Description | Retail | |
|---|
| 1 | RCR60026 | CARBURETOR BORED 26mm MIKUNI WITH 280 MAIN - 42.5 PILOT | $ 210.18 |
|
| 2 | RCC60017 | FLOAT BOWL CHAMBER VM24 | $ 35.88 |
|
| 3 | RCMU0271 | NEEDLE VALVE & SEAT ASSY MIKUNI CARBURETORS REPLACEMENT | $ 37.82 |
|
| 6A | RCMU0190 | MAIN JET - 190 - MIKUNI | $ 6.66 |
|
| 6B | RCMU0195 | MAIN JET - 195 - MIKUNI | $ 6.66 |
|
| 6C | RCMU0200 | MAIN JET - 200 - MIKUNI | $ 6.66 |
|
| 6D | RCMU0205 | MAIN JET - 205 - MIKUNI | $ 6.66 |
|
| 6E | RCMU0210 | MAIN JET - 210 - MIKUNI | $ 6.66 |
|
| 6F | RCMU0215 | MAIN JET - 215 - MIKUNI | $ 6.66 |
|
| 6G | RCMU0220 | MAIN JET - 220 - MIKUNI | $ 6.66 |
|
| 6H | RCMU0230 | MAIN JET - 230 - MIKUNI | $ 6.66 |
|
| 6J | RCMU0240 | MAIN JET - 240 - MIKUNI | $ 6.66 |
|
| 6K | RCMU1250 | MAIN JET - 250 - MIKUNI | $ 6.66 |
|
| 6L | RCMU1260 | MAIN JET - 260 - MIKUNI | $ 6.66 |
|
| 6M | RCMU1270 | MAIN JET - 270 - MIKUNI | $ 6.66 |
|
| 6N | RCMU1280 | MAIN JET - 280 - MIKUNI | $ 6.66 |
|
| 6O | RCMU1290 | MAIN JET - 290 - MIKUNI | $ 6.66 |
|
| 9 | RCEX0026 | NEEDLE JET - 5I-14 STOCK | $ 14.33 |
|
| 10A | RCEX0030 | PILOT JET - 30 MIKUNI | $ 6.54 |
|
| 10B | RCEX0032 | PILOT JET - 32.5 MIKUNI | $ 6.54 |
|
| 10C | RCEX0035 | PILOT JET - 35 MIKUNI | $ 6.54 |
|
| 10D | RCEX0037 | PILOT JET - 37.5 MIKUNI | $ 6.54 |
|
| 10E | RCEX0040 | PILOT JET - 40 MIKUNI | $ 6.54 |
|
| 10F | RCEX0042 | PILOT JET - 42.5 MIKUNI | $ 6.54 |
|
| 10G | RCEX0045 | PILOT JET - 45 MIKUNI | $ 6.54 |
|
| 10H | RCEX0047 | PILOT JET - 47.5 MIKUNI | $ 6.54 |
|
| 10I | RCEX0050 | PILOT JET - 50 MIKUNI | $ 6.54 |
|
| 10J | RCEX0052 | PILOT JET - 52.5 MIKUNI | $ 6.54 |
|
| 10K | RCEX0055 | PILOT JET - 55 MIKUNI | $ 6.54 |
|
| 10L | RCEX0057 | PILOT JET - 57.5 MIKUNI | $ 6.54 |
|
| 10M | RCEX0060 | PILOT JET - 60 MIKUNI | $ 6.54 |
|
| 11 | RCC60013 | GASKET FLOAT BOWL VM24 | $ 5.43 |
|
| 15 | RCEX0016 | SPRING - IDLE ADJUSTING SCREW | $ 4.32 |
|
| 16 | RCEX0015 | IDLE ADJUSTING SCREW | $ 9.63 |
|
| 17 | ZCDCOR01 | ORING - SPROCKET SPACER | $ 2.54 |
|
| 18 | RCEX0012 | FLOAT BOWL SCREW | $ 3.32 |
|
| 20 | RCC60025 | SLIDE 1.5 MIKUNI VM24/26 | $ 43.26 |
|
| 21 | RCC60016 | SLIDE STUFFER MIKUNI | $ 21.01 |
|
| 22 | RCMU0277 | E-CLIP MIKUNI NEEDLE | $ 2.2 |
|
| 24 | RCEX0005 | ADJUSTER | $ 3.87 |
|
| 25 | RCEX0006 | LOCK NUT | $ 2.2 |
|
| 27 | RCC60026 | CHOKE ASSY MIKUNI VM24/26 | $ 27.8 |
|
| 33 | RCEX0013 | AIR ADJUSTING SCREW | $ 8.77 |
|
| 34 | RCEX0014 | SPRING - AIR ADJUSTING SCREW | $ 4.43 |
|
| NOT SHOWN | RCMU0415 | CABLE ADJUSTER CAP | $ 2.2 |
|
| NOT SHOWN | RCC60021 | O-RING PILOT AIR SCREW - MIKUNI - VM24 | $ 2.32 |
|
| NOT SHOWN | RCC60020 | WASHER PILOT AIR SCREW - MIKUNI - VM24 | $ 2.2 |
|
