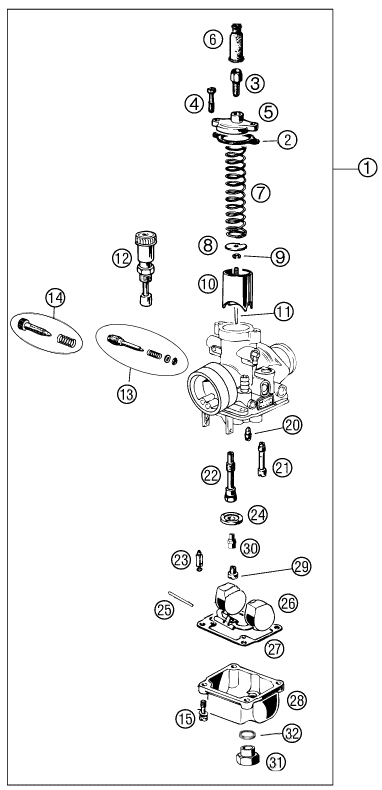

| Ref | Part Number | Description | Retail | |
|---|
| 1 | RACS0019 | CARBURETOR-19MM - WITH DEEP WELL | $ 181.88 |
|
| 2 | ZCMU0007 | GASKET - CARB CAP | $ 3.32 |
|
| 3 | RCMU0003 | CARB - CABLE ADJUSTER DELLORTO STRAIGHT | $ 3.2 |
|
| 4 | RCMU0006 | CARB - TOP SCREW #10A | $ 1.09 |
|
| 5 | RCMU0106 | CARB - TOP CAP - DELLORTO | $ 5.88 |
|
| 6 | RCMU0102 | CARB - RUBBER CABLE CAP SEAL-#8 - DELLORTO | $ 3.87 |
|
| 7 | RCMU0004L | SPRING - SLIDE - DELLORTO - LIGHT | $ 9.88 |
|
| 8 | RCMU0028 | CARB - NEEDLE RETAINER PLATE #13 | $ 6.54 |
|
| 9 | RCMU0007 | CARB - NEEDLE CLIP #14 | $ 2.2 |
|
| 10 | RCMU0305 | SLIDE #40 - CARB - DELLORTO | $ 38.81 |
|
| 11 | RCMU0601 | NEEDLE - W7 - DELLORTO CARB | $ 14.33 |
|
| 12 | RCMU0204 | CARB - CHOKE ASSY - DELLORTO | $ 16.56 |
|
| 12A | RCMU0209 | O-RING - CHOKE ASSEMBLY - DELLORTO | $ 1.09 |
|
| 13 | RCMU0009 | CARB - FUEL MIXTURE SCREW #16 | $ 14.33 |
|
| 14 | RCMU0011 | CARB - IDLE ADJUSTMENT SCREW #18 | $ 5.43 |
|
| 15 | RCMU0201 | CARB - FLOAT BOWL SCREW - DELLORTO | $ 1.98 |
|
| 20 | RCMU0055 | PILOT JET - 55 - DELLORTO | $ 6.32 |
|
| 20A | RCMU0048 | PILOT JET - 48 - DELLORTO | $ 6.32 |
|
| 20B | RCMU0050 | PILOT JET - 50 - DELLORTO | $ 6.32 |
|
| 20C | RCMU0052 | PILOT JET - 52 - DELLORTO | $ 6.32 |
|
| 20D | RCMU0065 | PILOT JET - 65 - DELLORTO | $ 6.32 |
|
| 22 | RCMU0262 | ATOMIZER AU262 FOR DELL\'ORTO PHBG STANDARD | $ 18.78 |
|
| 23 | RCMU0107 | CARB - FLOAT NEEDLE - DELLORTO | $ 7.21 |
|
| 24 | RCMU0012 | DIFFUSER - DELLORTO PHBG STANDARD 1.6 | $ 5.43 |
|
| 25 | RCMU0016 | CARB - FLOAT RETAINER PIN #22 | $ 2.2 |
|
| 26 | RCMU0301 | CARB - FLOAT #7 | $ 25.46 |
|
| 27 | RCMU0103 | CARB - FLOAT BOWL GASKET - DELLORTO | $ 5.43 |
|
| 28 | RCMU0043 | BOWL - CARB FLOAT W/ THREADED HOLE - DELLORTO PHBG | $ 33.25 |
|
| 29 | RCMU0093 | MAIN JET - 93 - DELLORTO | $ 6.32 |
|
| 29A | RCMU0089 | MAIN JET - 89 - DELLORTO | $ 6.32 |
|
| 29B | RCMU0090 | MAIN JET - 90 - DELLORTO | $ 6.32 |
|
| 29C | RCMU0091 | MAIN JET - 91 - DELLORTO | $ 6.32 |
|
| 29D | RCMU0092 | MAIN JET - 92 - DELLORTO | $ 6.32 |
|
| 29E | RCMU0094 | MAIN JET - 94 - DELLORTO | $ 6.32 |
|
| 29F | RCMU0095 | MAIN JET - 95 - DELLORTO | $ 6.32 |
|
| 30 | RCMU0044 | EXTENSION - MAIN JET - DELLORTO PHBG | $ 8.77 |
|
| 31 | RCMU0039 | PLUG - FLOAT BOWL - DELLORTO PHBG | $ 10.99 |
|
| 32 | ZCMU0037 | GASKET - DELLORTO BOWL PLUG | $ 0.53 |
|
| ACCESSORY | RCMU0031 | SLIDE # 30 DELLORTO | $ 38.81 |
|
| ACCESSORY | RCMU0250 | SLIDE # 50 DELLORTO | $ 38.81 |
|
| ACCESSORY | ECKG0160 | SLIDE # 60 DELLORTO | $ 38.81 |
|
| ACCESSORY | RCMU0026 | NEEDLE - W4 - DELLORTO CARB | $ 13.67 |
|
| ACCESSORY | RCMU0602 | NEEDLE - W16 - DELLORTO CARB | $ 14.33 |
|
| NOT SHOWN | RCCM1301 | CARB - VELOCITY STACK-50CC | $ 21.01 |
|
| NOT SHOWN | RCCS0006 | FUEL LINE KING 50 2010 AND NEWER | $ 2.2 |
|
| NOT SHOWN | MCMUCL04 | HOSE CLAMP 8MM | $ 2.2 |
|
| NOT SHOWN | RCMU0020 | ELBOW - CARB VENT | $ 4.32 |
|
| NOT SHOWN | RAMU0001 | CANNULUS - Y STYLE CARB VENT SYSTEM - DELLORTO | $ 16.56 |
|
