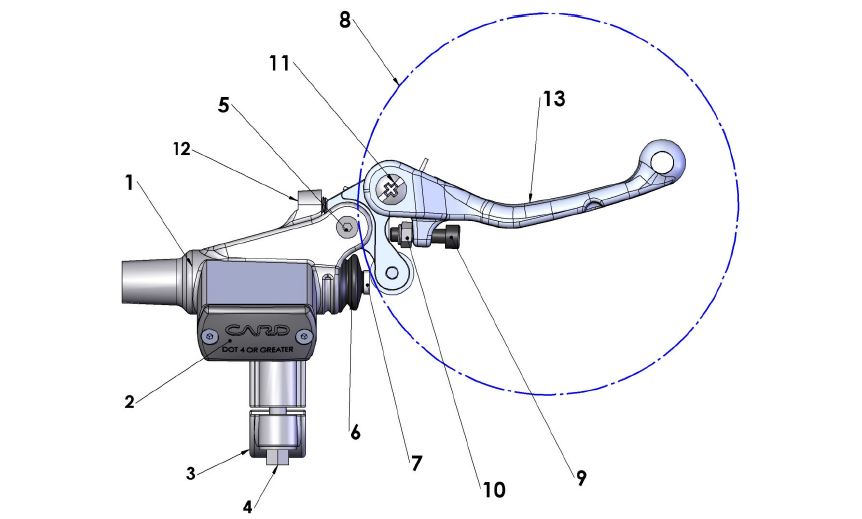

| Ref | Part Number | Description | Retail | |
|---|
| BAC60008 | BRAKE ASSY FRONT CX65 (MC-LINE-CALIPER) ZL150 | $ 365.98 |
|
| 1 | BAC60010 | R/B BAMU0006 - MASTER CYLINDER ASSY - BRAKE FRONT CX65 ZL50 | $ 210.18 |
|
| 2 | BKC60008 | CAP & BLADDER KIT W 2 SCREWS - BRAKE & CLUTCH - ZL150 | $ 9.88 |
|
| 3 | BCC60058 | M/C CLAMP ZL150 - BRAKE AND CLUTCH | $ 17.67 |
|
| 4 | HCBF1625 | M6 X 25 FLANGED HD HEX 8MM ZINC FOR CARD MASTER CYLINDERS | $ 1.09 |
|
| 5 | BKC60007 | BRAKE/CLUTCH - M/C PIVOT BOLT KIT - ZL150 | $ 7.65 |
|
| 6 | BCC60017 | BOOT - BRAKE AND CLUTCH MASTER CYLINDER PISTON COVER | $ 3.87 |
|
| 7 | BKC60004 | REBUILD KIT - FRONT CX65 CARD MASTER - 11MM DIA- 2012 - 2018 | $ 36.7 |
|
| 8 | CKC60004 | R/B BAMU0009 - LEVER ASSY - CLUTCH & BRAKE CARD M/C | $ 65.52 |
|
| 9 | HCBC0502 | R/B HCBC0520 - M5 x 0.8 - 20 - SHCS - DIN 912 - ISO 4762, | $ 1.09 |
|
| 10 | HCNL0501 | M5 LOCKNUT | $ 1.09 |
|
| 11 | CKC60005 | BOLT KIT - PIVOT - MALE & FEMALE | $ 10.99 |
|
| 12 | HCSS0601 | R/B HCSS0610 - SET SCREW-M6-1 x 10mm LG FLAT POINT | $ 1.09 |
|
| 13 | CCC60015 | R/B BCMU0059 - LEVER - ROLLER BREAKAWAY - LONG | $ 39.93 |
|
| NOT SHOWN | BCC60055 | VR/B BCMU0116 - BOOT - FRONT BRAKE & CLUTCH M/C - ZL150 | $ 22.12 |
|
| NOT SHOWN | CCC60026 | SPRING - LEVER RETURN - CLUTCH & BRAKE | $ 7.65 |
|
| NOT SHOWN | CCC60025 | SPACER - SPRING CENTERING - LEVER PIVOT | $ 5.43 |
|
| NOT SHOWN | BCC60054 | NFS use \"B\" HOSE - FRONT BRAKE - UNBENT - CX65 | $ 89 |
|
| TOOL | BKMU0003 | TOOL - BLEEDING KIT - FORMULA - CARD - AJP | $ 43.26 |
|
