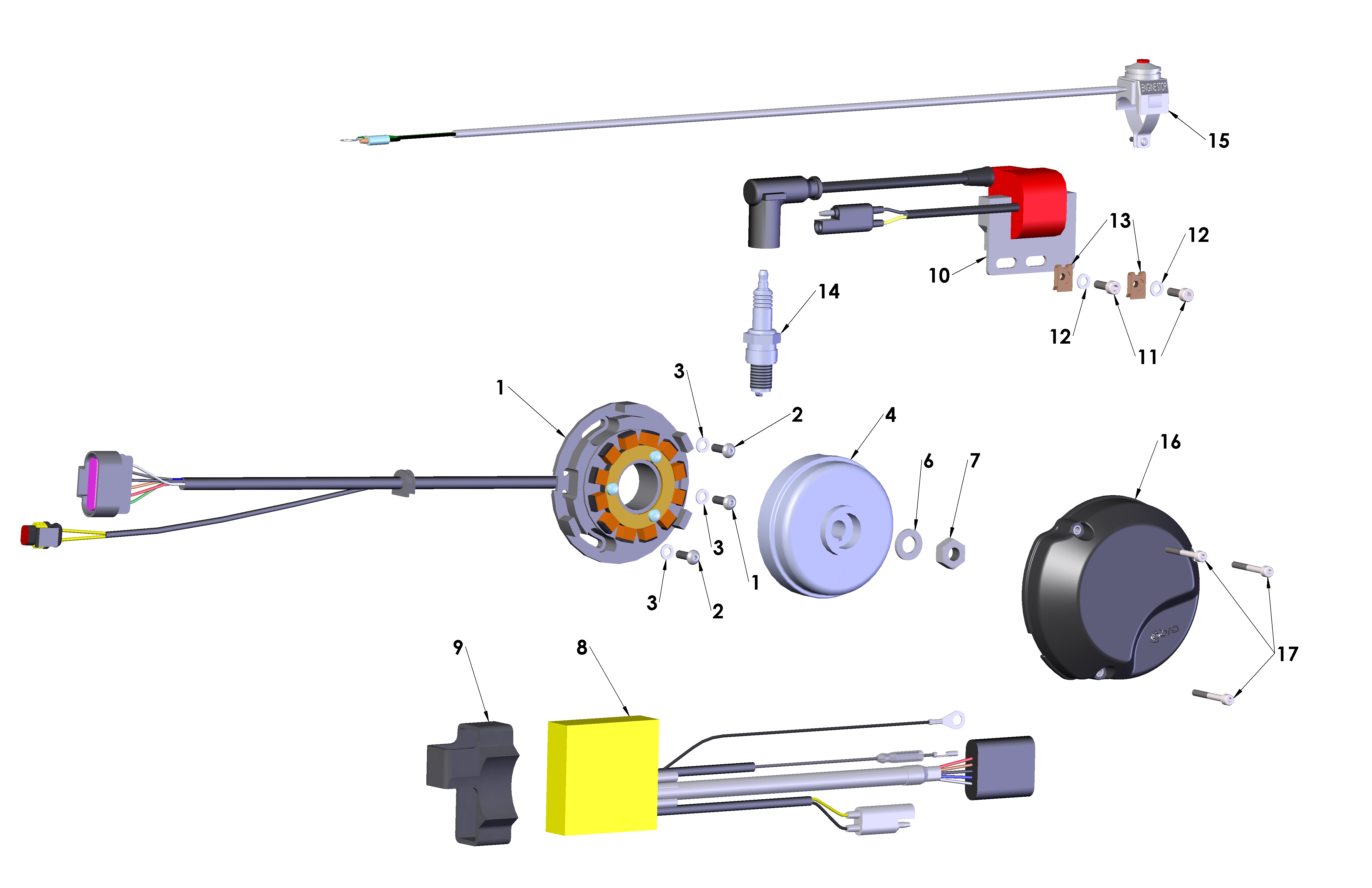

| Ref | Part Number | Description | Retail | |
|---|
| 1 | ICC60014 | R/B ICC60018 STATOR - POWER VALVE CX65 | $ 219.09 |
|
| 2 | HCBT0516 | M5 X 16 TORX HEAD | $ 2.6 |
|
| 3 | HCWF0501 | 5MM FLAT WASHER | $ 0.53 |
|
| 4 | ICC60007 | FLYWHEEL - HEAVY | $ 163.45 |
|
| 5 | ICMU0012 | KEY FOR ROTOR | $ 1.09 |
|
| 6 | HCWF0010 | 10MM FLAT WASHER | $ 0.53 |
|
| 7 | HCNS1001 | 10MM X 1.25 NUT | $ 1.09 |
|
| 8 | ICC60017 | CDI UNIT - YELLOW - POWER VALVE CX65 - 2017 | $ 236.89 |
|
| 9 | ICMU0035 | CDI MOUNT - ALL RUBBER | $ 15.44 |
|
| 10 | ICC60005 | COIL IGNITION 2010 CX65 | $ 63.29 |
|
| 11 | HCBC0516 | M5 x 0.8 x 16 - SHCS - DIN 912, ISO 4762, CL12.9 | $ 1.09 |
|
| 12 | HCWF0501 | 5MM FLAT WASHER | $ 0.53 |
|
| 13 | HCCN0000 | 5MM EXTRUDED ``U`` NUT | $ 2.09 |
|
| 14 | ECMU0033I | R/B ECMU0033C - SPARK PLUG - AUTOLITE - XS4063 | $ 12.22 |
|
| 15 | FCMU0033 | KILL SWITCH | $ 22.24 |
|
| 16 | ECC60166 | COVER - IGNITION - CX65 & VENOM | $ 36.59 |
|
| 17 | HCBC0402 | R/B HCBC0435 - M4 X 35 SHCS ZINC | $ 1.09 |
|
| ACCESSORY | ICMU0016 | SPARK PLUG CAP-5K OHM - PVL | $ 17.67 |
|
| ACCESSORY | MCKGGR00 | GROMMET-UNIVERSAL-COBRA | $ 2.2 |
|
| NOT SHOWN | FCMU0030 | COVER - KILL SWITCH SCREW | $ 0.27 |
|
| TOOL | MCMUTL05 | TOOL - FLYWHEEL PULLER 65 | $ 44.38 |
|
| TOOL | MCMUTL19 | TOOL - HARNESS - PV DIAGNOSTIC | $ 54.39 |
|
