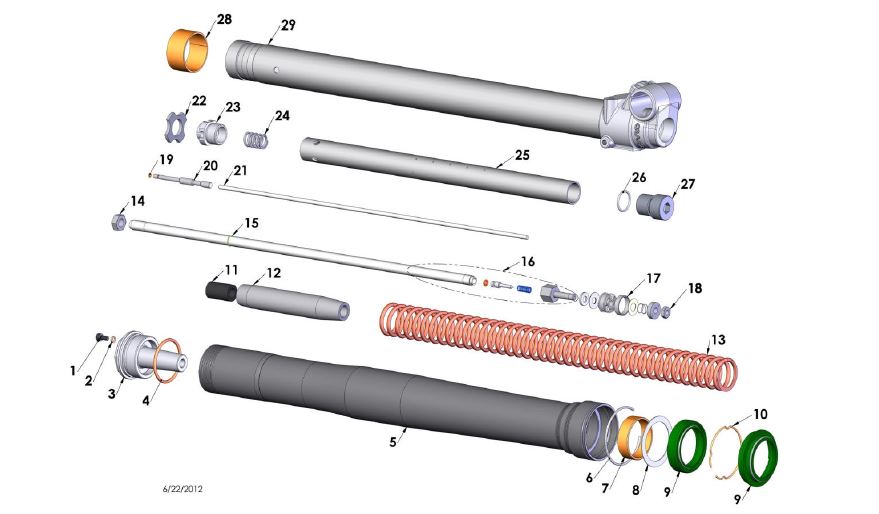

| Ref | Part Number | Description | Retail | |
|---|
| 1 | HCBC0408 | M4 x 0.7 x 8 - SHCS - ZINC | $ 1.09 |
|
| 2 | ZCKG0001 | GASKET - BLEED SCREW FORK | $ 2.88 |
|
| 3 | KCC60044L | FORK CAP - CALIPER SIDE - 37MM | $ 96.23 |
|
| 4 | ZCC60011 | O-RING 37MM FORK CAP | $ 2.76 |
|
| 5 | KCC60037 | FORK - OUTER TUBE 37MM | $ 232.44 |
|
| 6 | KCC60043 | RING CLIP - FORK OUTER WEAR 37MM | $ 5.43 |
|
| 7 | KCC60041 | FORK GLIDE RING BOTTOM 37MM | $ 14.33 |
|
| 8 | KCC60047 | SPACER - FORK SEAL - 37MM | $ 7.65 |
|
| 9 | KCC60039 | FORK SEAL & SWIPER KIT 37MM - SKF | $ 41.04 |
|
| 10 | KCC60066 | RING CLIP - FORK SEAL RETAINER 37MM | $ 5.43 |
|
| 11 | KCC60067 | FORK - JOUNCE BUMPER | $ 8.32 |
|
| 12 | KCC60064 | GUIDE - FORK SPRING - 37MM | $ 22.24 |
|
| 13A | KCC63726 | SPRING - FORK .26 KG/MM (SINGLE) | $ 48.88 |
|
| 13B | KCC63724 | SPRING - FORK .24 KG/MM (SINGLE) | $ 48.88 |
|
| 13C | KCC63728 | SPRING - FORK .28 KG/MM (SINGLE) | $ 48.88 |
|
| 14 | HCNJ3824 | NUT JAM 3/8-24 CLASS 8 | $ 3.32 |
|
| 15 | KCC60068 | FORK - RING CLIP - SPRING GUIDE RETAINER | $ 4.76 |
|
| 16 | KAC60003 | DAMPER ROD ASSEMBLY 37MM | $ 98.46 |
|
| 17 | KCCS0018 | FORK - MID VALVE GLIDE RING | $ 9.88 |
|
| 18 | HCNJ0601 | 6MM JAM NUT | $ 1.09 |
|
| 19 | BCKG0033 | ORING - 2.1MM ID - 1MM - BUNA | $ 2.2 |
|
| 20 | KCC60052 | FORK ADJUSTMENT SCREW TOP - LONG | $ 51.72 |
|
| 21 | KCC60049 | FORK ADJUSTER PIN | $ 19.9 |
|
| 22 | KCC60042 | PERCH - FORK SPRING - HARDENED - 37MM | $ 9.43 |
|
| 23 | KCCS0001 | R/B KCMU0013 - FORK - CARTRIDGE CAP | $ 28.8 |
|
| 24 | KCKG0050 | FORK - TOP OUT SPRING | $ 8.77 |
|
| 25 | KCC60056 | FORK CARTRIDGE TUBE - SMART LEG | $ 61.07 |
|
| 26 | ZCKGB017 | O-RING FORK BOTTOM PLUG | $ 2.2 |
|
| 27 | KCC60057 | FORK - BOTTOM PLUG - SMART LEG | $ 32.14 |
|
| 28 | KCC60036 | FORK GLIDE RING TOP 37MM | $ 14.33 |
|
| 29 | KAC60002 | FORK LOWER COMPLETE NON-BRAKE SIDE - 37MM | $ 236.31 |
|
| TOOL | MCMUTL38 | TOOL - FORK SEAL SWIPER DRIVER - 37MM | $ 65.63 |
|
| TOOL | MCMUTL37 | TOOL - FORK CAP WRENCH - 37MM | $ 11.12 |
|
| TOOL | MCMUTL04 | TOOL - CARTRIDGE TUBE WRENCH | $ 49.94 |
|
