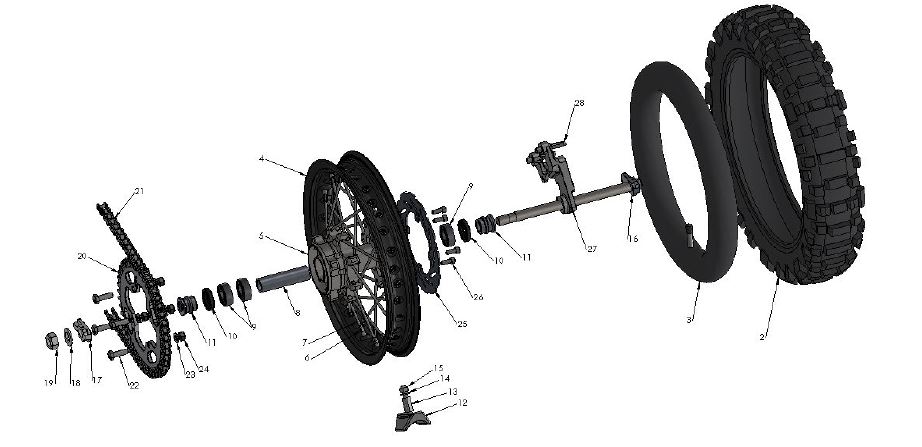

| Ref | Part Number | Description | Retail | |
|---|
| 1 | WAC6R017 | OBSOLETE - WHEEL ASSEMBLY - REAR - CX65 2017 | $ 521.77 |
|
| 2 | WCC6R012D | TIRE - REAR - 80/100-12 - DUNLOP MX52 | $ 43.38 |
|
| 3 | WCDCTU12 | TUBE - 275-80/100-12 REAR | $ 15.88 |
|
| 4 | WCMU1200B | 12`` RIM BLACK | $ 110.03 |
|
| 5 | WCC60034BLK | HUB - REAR - SEALED - BLACK | $ 377.1 |
|
| 6 | WKC6RR01 | REAR SPOKE W/ NIPPLE (1pc) - 32 PC WHEEL | $ 3.56 |
|
| 8 | WCC60037 | SPACER - REAR WHEEL BEARING | $ 22.12 |
|
| 9 | WCMU0120 | BEARING - WHEEL-SEALED HD | $ 20.01 |
|
| 10 | WCC60035 | SEAL - REAR HUB - 23 x 35 x 7 | $ 14.45 |
|
| 11 | WCC60036 | SPACER - L&R REAR WHEEL | $ 10.99 |
|
| 12 | WCMU0110 | R/B WCMU0019 - RIM LOCK NARROW 1.4/1.6 | $ 12.22 |
|
| 13 | WCDC0008 | RIM LOCK SPACER | $ 4.32 |
|
| 14 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 15 | HCNS0801 | 8MM NUT | $ 0.64 |
|
| 16 | WCC60004 | OBSOLETE - AXLE - REAR - CX65 | $ 47.48 |
|
| 17 | GCC60010 | CHAIN ADJUST BLOCK OFFSET | $ 22.12 |
|
| 18 | HCWF1400 | 14MM FLAT WASHER | $ 1.09 |
|
| 19 | HCNL1402 | M14 x 2.0 LOCKNUT | $ 4.32 |
|
| 20A | PCDC0039 | SPROCKET - 39T ALUM | $ 54.39 |
|
| 20B | PCDC0040 | SPROCKET - 40T ALUM | $ 54.39 |
|
| 20C | PCDC0041 | SPROCKET - 41T ALUM | $ 54.39 |
|
| 20D | PCDC0042 | SPROCKET - 42T ALUM | $ 54.39 |
|
| 20E | PCDC0043 | SPROCKET - 43T ALUM | $ 54.39 |
|
| 20F | PCDC0044 | SPROCKET - 44T ALUM | $ 54.39 |
|
| 20G | PCDC0045 | SPROCKET - 45T ALUM | $ 54.39 |
|
| 20H | PCDC0046 | SPROCKET - 46T ALUM | $ 54.39 |
|
| 20I | PCDC0047 | SPROCKET - 47T ALUM | $ 54.39 |
|
| 20J | PCDC0048 | SPROCKET - 48T ALUM | $ 54.39 |
|
| 20K | PCDC0049 | SPROCKET - 49T ALUM | $ 54.39 |
|
| 20L | PCDC0050 | SPROCKET - 50T ALUM | $ 54.39 |
|
| 20M | PCDC0051 | OBSOLETE-SPROCKET - 51T ALUM | $ 58.84 |
|
| 20N | PCDC0052 | SPROCKET - 52T ALUM | $ 58.84 |
|
| 20O | PCDC0053 | SPROCKET - 53T ALUM | $ 58.84 |
|
| 21 | PCMU0116 | CHAIN 420H 116L CX65 14/45 | $ 25.46 |
|
| 22 | HCBH0825 | M8 X 25 HH ZINC | $ 1.09 |
|
| 23 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 24 | HCNL0801 | R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL | $ 1.09 |
|
| 25 | BCC60004 | BRAKE ROTOR REAR | $ 74.42 |
|
| 26 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 27 | BCC60093 | CARRIER - BRAKE CALIPER - CX65 - CARD 2 PISTON | $ 76.65 |
|
| ACCESSORY | WCC6R012D32 | R/B WCC6R012D33 - TIRE - REAR - 80/100-12 - DUNLOP MX3S | $ 47.27 |
|
| TOOL | MCMUTL17 | TOOL - SPOKE NIPPLE WRENCH - ALUMINUM SPLINED | $ 15.44 |
|
