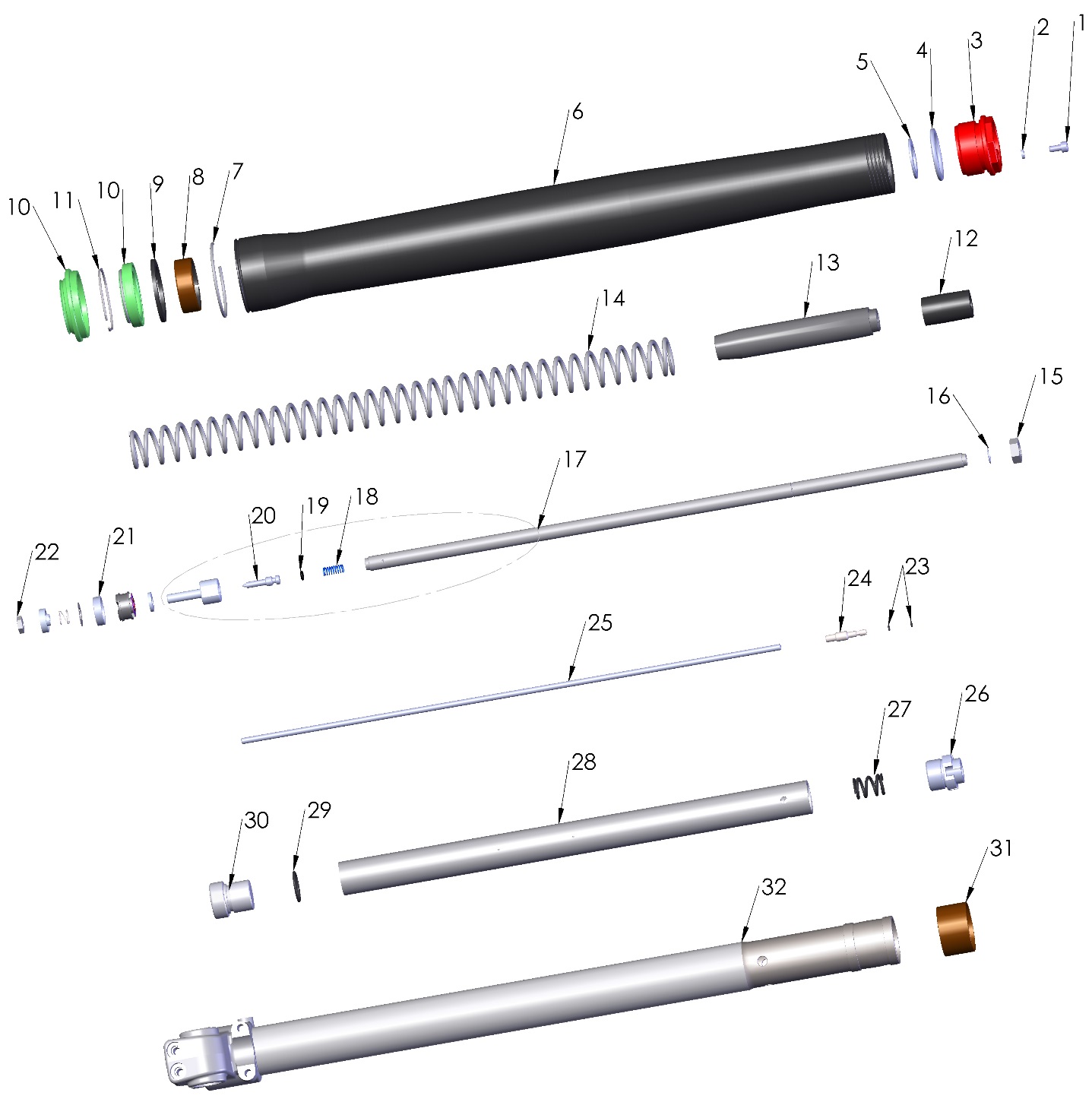

| Ref | Part Number | Description | Retail | |
|---|
| 1 | HCBC0408 | M4 x 0.7 x 8 - SHCS - ZINC | $ 1.09 |
|
| 2 | ZCKG0001 | GASKET - BLEED SCREW FORK | $ 2.88 |
|
| 3 | KCCS0004C | FORK CAP - CONVENTIONAL REBOUND 32MM USD | $ 87.89 |
|
| 4 | ZCMUOR18 | O-RING - 3MM X 27MM ID | $ 2.2 |
|
| 5 | KCCS0036 | FORK SPRING WEAR PLATE 32MM | $ 6.54 |
|
| 6 | KCCS0005 | OUTER TUBE - FORK - 32MM | $ 220.86 |
|
| 7 | KCCS0035 | FORK - RING CLIP - OUTER WEAR 32MM | $ 5.43 |
|
| 8 | KCCS0006 | FORK - GLIDE RING BOTTOM 32MM | $ 14.33 |
|
| 9 | KCCS0032 | SPACER - FORK SEAL- 32MM | $ 7.65 |
|
| 10 | KKCS0004 | FORK - SEAL & SWIPER KIT - 32MM SKF (1 seal 1 swiper) | $ 39.93 |
|
| 11 | KCCS0002 | RING CLIP -FORK - SEAL RETAINER 32MM | $ 6.54 |
|
| 12 | KCC60067 | FORK - JOUNCE BUMPER | $ 8.32 |
|
| 13 | KCCS0013 | GUIDE - FORK SPRING - 32MM | $ 22.12 |
|
| 14 | KCCJ3221 | SPRING - FORK 0.21 KG/MM - 32MM JR/P3 | $ 48.88 |
|
| 14A | KCCJ3218 | SPRING - FORK 0.18 KG/MM - 32MM JR/P3 | $ 48.88 |
|
| 14B | KCCJ3225 | SPRING - FORK 0.25 KG/MM - 32MM JR/P3 | $ 48.88 |
|
| 15 | HCNJ3824 | NUT JAM 3/8-24 CLASS 8 | $ 3.32 |
|
| 16 | KCC60068 | FORK - RING CLIP - SPRING GUIDE RETAINER | $ 4.76 |
|
| 17 | KAC60003 | DAMPER ROD ASSEMBLY 37MM | $ 98.46 |
|
| 18 | KCC60058 | O-RING MID-VALVE ADJ NEEDLE | $ 1.09 |
|
| 19 | KCC60050 | NEEDLE - FORK MID-VALVE ADJUSTER | $ 27.68 |
|
| 20 | KCC60051 | SPRING - FORK ADJUSTER NEEDLE | $ 5.43 |
|
| 21 | KCCS0018 | FORK - MID VALVE GLIDE RING | $ 9.88 |
|
| 22 | HCNJ0601 | 6MM JAM NUT | $ 1.09 |
|
| 23 | BCKG0033 | ORING - 2.1MM ID - 1MM - BUNA | $ 2.2 |
|
| 24 | KCCS0033 | FORK ADJUSTMENT SCREW TOP - SHORT | $ 40.59 |
|
| 25 | KCC60049 | FORK ADJUSTER PIN | $ 19.9 |
|
| 26 | KCMU0013 | FORK - CARTRIDGE CAP | $ 32.14 |
|
| 27 | KCKG0050 | FORK - TOP OUT SPRING | $ 8.77 |
|
| 28 | KCCJ0002 | FORK - TRAVEL LIMITER SPACER | $ 15.44 |
|
| 29 | KCKG0019 | CARTRIDGE TUBE - JR KG 65 FORKS - ALUM | $ 49.94 |
|
| 30 | KCMU0021 | O-RING - FORK - BASE VALVE & COMP ADJ | $ 1.09 |
|
| 31 | KCC60057 | FORK - BOTTOM PLUG - SMART LEG | $ 32.14 |
|
| 32 | KCCS0007 | FORK - GLIDE RING TOP 32MM | $ 14.33 |
|
| 34 | KAMU0004 | FORK LOWER COMPLETE NON-BRAKE SIDE - HOLLOW AXLE | $ 216.86 |
|
| TOOL | MCMUTL39 | TOOL - FORK SEAL SWIPER DRIVER - 32MM | $ 61.18 |
|
| TOOL | MCMUTL32 | TOOL - FORK CAP WRENCH - 32MM | $ 17.67 |
|
| TOOL | MCMUTL04 | TOOL - CARTRIDGE TUBE WRENCH | $ 49.94 |
|
