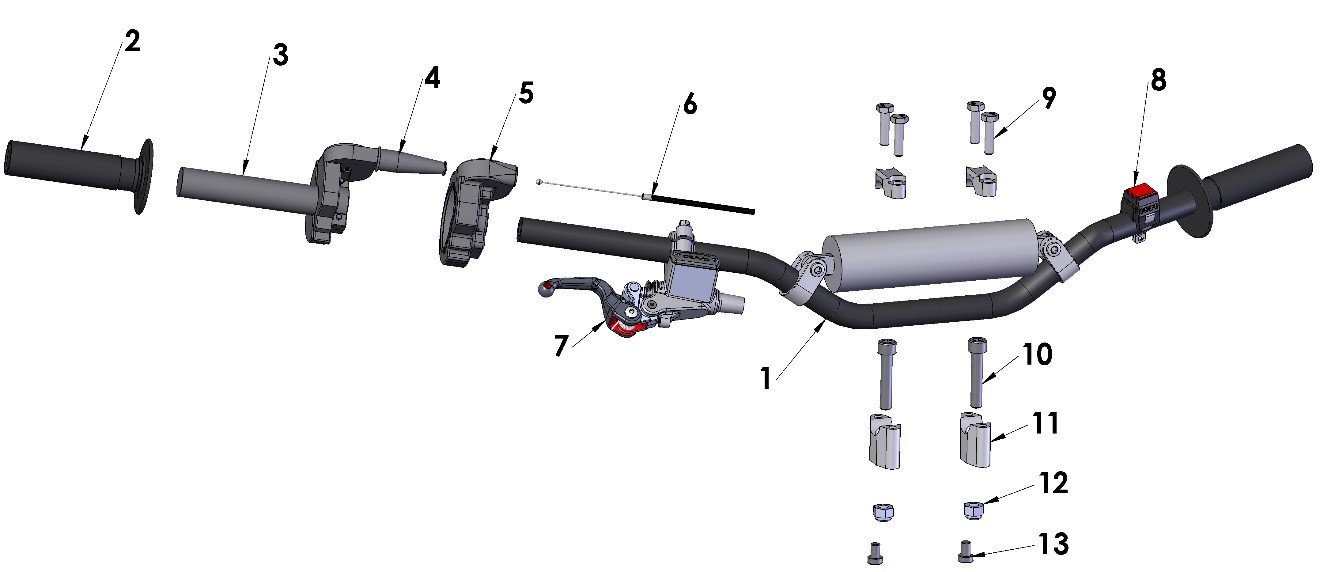

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FAMU0017 | HANDLEBARS - MICRO BARS - 50CC | $ 77.89 |
|
| 2 | TCMU0021 | GRIPS - MICRO - GREY - PAIR | $ 12.23 |
|
| 3 | FAMU0016 | THROTTLE ASSEMBLY - PRO TAPER MICRO | $ 99.03 |
|
| 3A | FAMU0015 | THROTTLE TUBE KIT - MICRO BARS | $ 77.89 |
|
| 3B | HCBC0525 | M5 x 0.8 x 25 - SHCS - DIN 912, ISO 4762, CL. 12.9 - ZINC | $ 1.09 |
|
| 3C | FCMU0041 | STOP RING - THROTTLE - MICRO BAR | $ 1.88 |
|
| 4 | FCPW0004 | THROTTLE HOUSING INLET BOOT | $ 7.77 |
|
| 5 | FCMU0021 | THROTTLE HOUSING COVER | $ 17.67 |
|
| 6 | FCMU0019 | CABLE - THROTTLE - MEDIUM | $ 14.78 |
|
| 6A | HCNJ0801 | 8MM X 1 JAMNUT | $ 0.64 |
|
| 7 | BAMU0002 | SEE NOTE - BRAKE ASSY - 50CC FRONT - CARD 2 PISTON | $ 243.57 |
|
| 8 | FCMU0033 | KILL SWITCH | $ 22.24 |
|
| 9 | HCBC0806 | R/B HCBC0830 - M8 X 30 SHCS ZINC | $ 1.09 |
|
| 10 | HCBC1040 | 10 X 40 SHCS ZINC | $ 2.09 |
|
| 11 | TKMU0404 | HANDLE BAR RISER KIT - SHORT (STOCK) | $ 48.83 |
|
| 11A | TKMU0403 | HANDLE BAR RISER KIT - TALL | $ 54.39 |
|
| 12 | HCNL1001 | M10 LOCKNUT-1.5 THREAD PITCH | $ 1.64 |
|
| 13 | HCBC0812 | M8 X 12 SHCS LOW PROFILE HEAD | $ 1.54 |
|
| ACCESSORY | BAMU0005 | R/B CKC60004 - LEVER ASSY - BREAKAWAY SHORTY- BRAKE CARD M/C | $ 65.52 |
|
| ACCESSORY | BAMU0004 | R/B BAMU0006 - MASTER CYL ASSY - 11.0 FRONT BRAKE | $ 176.8 |
|
| ACCESSORY | MCMUAM11 | GRIP DONUT - PAIR - PRO TAPER MICRO BAR | $ 4.43 |
|
| ACCESSORY | FKMU0007 | HANDLEBAR KIT - PRO TAPER MICRO JR/P3 - WITH COBRA THROTTLE | $ 166.91 |
|
