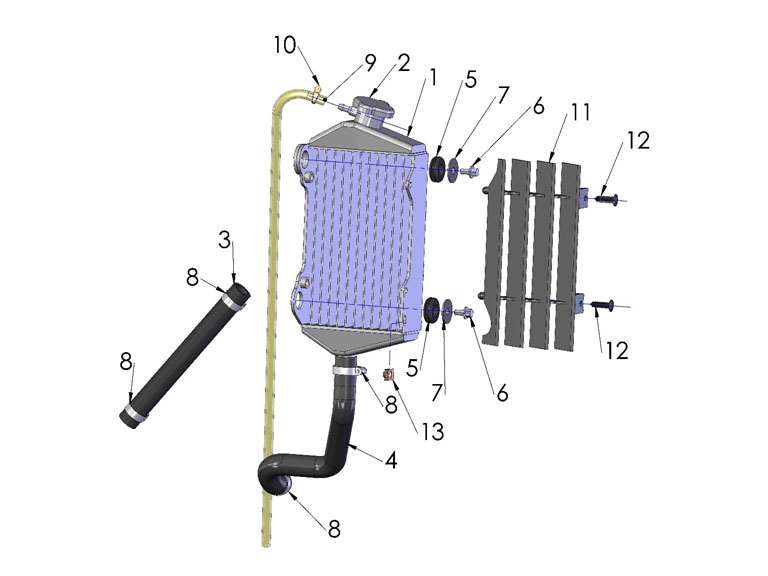

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FCCS0058 | RADIATOR - CX50 SR - 2016 - 2020 | $ 216.86 |
|
| 2 | FCMU0052 | RADIATOR CAP 1.3 BAR - WITH RIBS | $ 17.67 |
|
| 3 | ECCS0034 | HOSE - RAD TOP - KING 2018 & LATER | $ 15.44 |
|
| 4 | ECMU0275 | HOSE - ENGINE COOLANT - BOTTOM - CX50 VENOM | $ 25.46 |
|
| 5A | MCMUGR03 | GROMMET FOR SILENCER & UPPER KING RADIATOR MOUNT | $ 4.98 |
|
| 5B | MCC6GR01 | GROMMET - RADIATOR | $ 4.76 |
|
| 6 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 7 | HCWF1478 | 1/4`` FLAT WASHER 7/8`` OD | $ 0.53 |
|
| 8 | MCMUCL07 | HOSE CLAMP (14 - 27MM) | $ 2.76 |
|
| 9 | FCKG0214 | HOSE RADIATOR OVERFLOW | $ 11.88 |
|
| 10 | MCMUCL05 | CLAMP-CARB HOSE 10MM | $ 0.53 |
|
| 11 | FCCS0043 | LOUVER KING 2010 | $ 18.78 |
|
| 12 | HCSP0002 | FASTENER, BODY PANEL | $ 0.53 |
|
| 12A | HCPP0001 | PUSH PIN - REMOVABLE - CX65 RAD LOUVER | $ 1.64 |
|
| 13 | HCCN0000 | 5MM EXTRUDED ``U`` NUT | $ 2.09 |
|
| TOOL | MCMUTL16 | TOOL - RADIATOR CAP REMOVAL | $ 22.24 |
|
