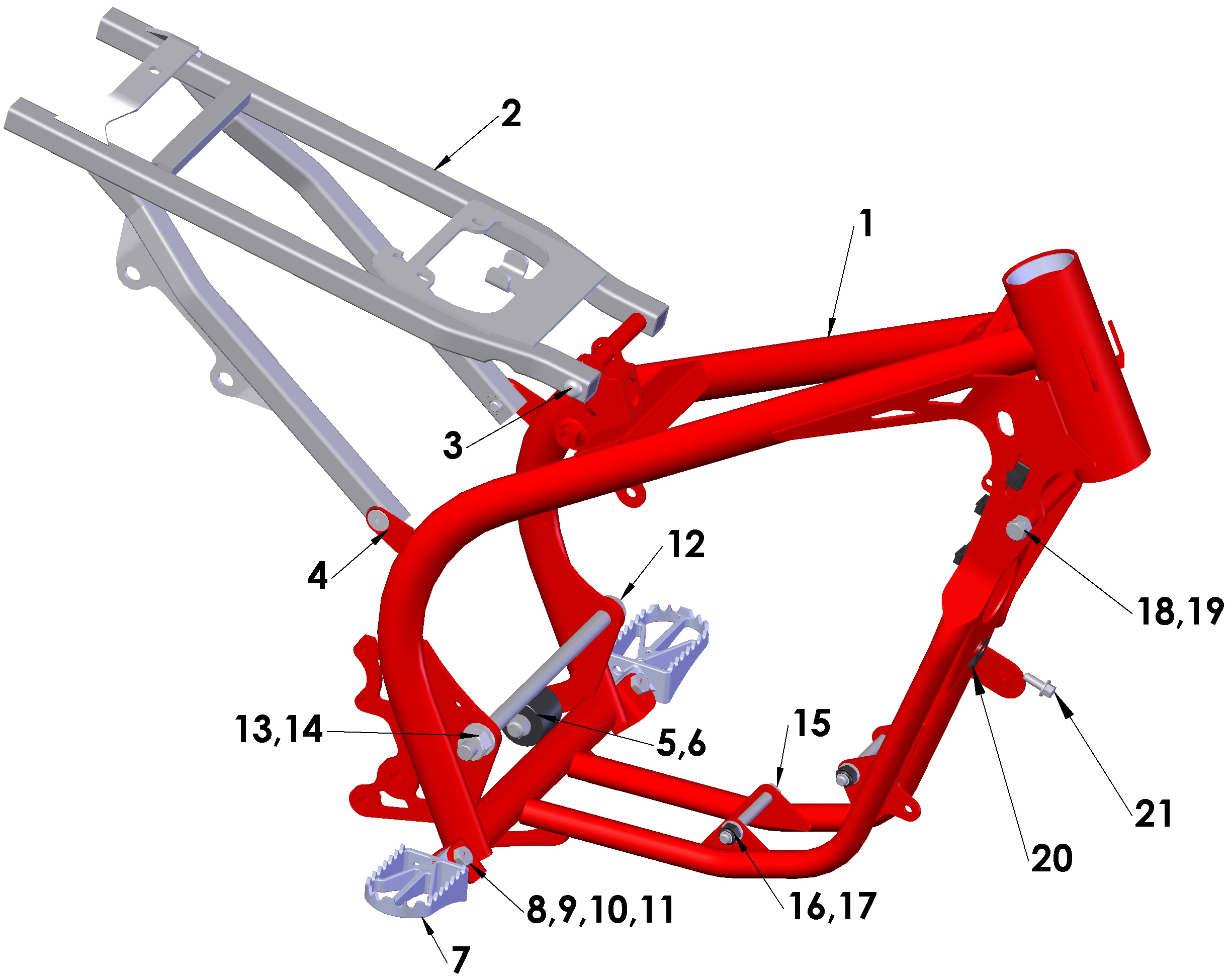

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FAC62017 | FRAME CX65 2017 - BIG SOLENOID | $ 777.71 |
|
| 2 | FAC60016 | SUBFRAME CX65 2010-2021 | $ 165.67 |
|
| 3 | HCBB0835 | M8 X 35 BUTTON HEAD ZINC | $ 1.09 |
|
| 4 | HCFH0825 | 8 X 25 FLAT HEAD | $ 1.09 |
|
| 5 | FCC60020 | CHAIN ROLLER W BOLT BEARING & SEALS | $ 18.34 |
|
| 6 | BCDC0153 | BANJO WASHER 10MM ID | $ 1.09 |
|
| 7 | TCMU0139 | ULTRAWIDE FOOTPEG KIT 50cc / 65cc | $ 77.76 |
|
| 8 | TCC60012 | SPRING - FOOTPEG ULTRA WIDE | $ 5.43 |
|
| 9 | FCMU0031 | CLEVIS PIN - FOOTPEG | $ 4.32 |
|
| 10 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 11 | HCCP0008 | COTTERPIN - 1/8` X 3/4` 316 STAINLESS | $ 0.53 |
|
| 12 | GCC60015 | R/B GCC60020 12 X 200MM AXLE / PIVOT BOLT | $ 32.14 |
|
| 13 | HCWF1202 | 12MM FLAT WASHER | $ 0.53 |
|
| 14 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| 15 | HCBH0865 | M8 X 65 HH ZINC | $ 1.54 |
|
| 16 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 17 | HCNL0801 | R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL | $ 1.09 |
|
| 18 | HCBH0807 | M8 X 20 HH ZINC | $ 1.09 |
|
| 19 | HCNS0801 | 8MM NUT | $ 0.64 |
|
| NOT SHOWN | MCMUZT28 | ZIP TIP 8` FRAME MOUNTED | $ 1.4 |
|
