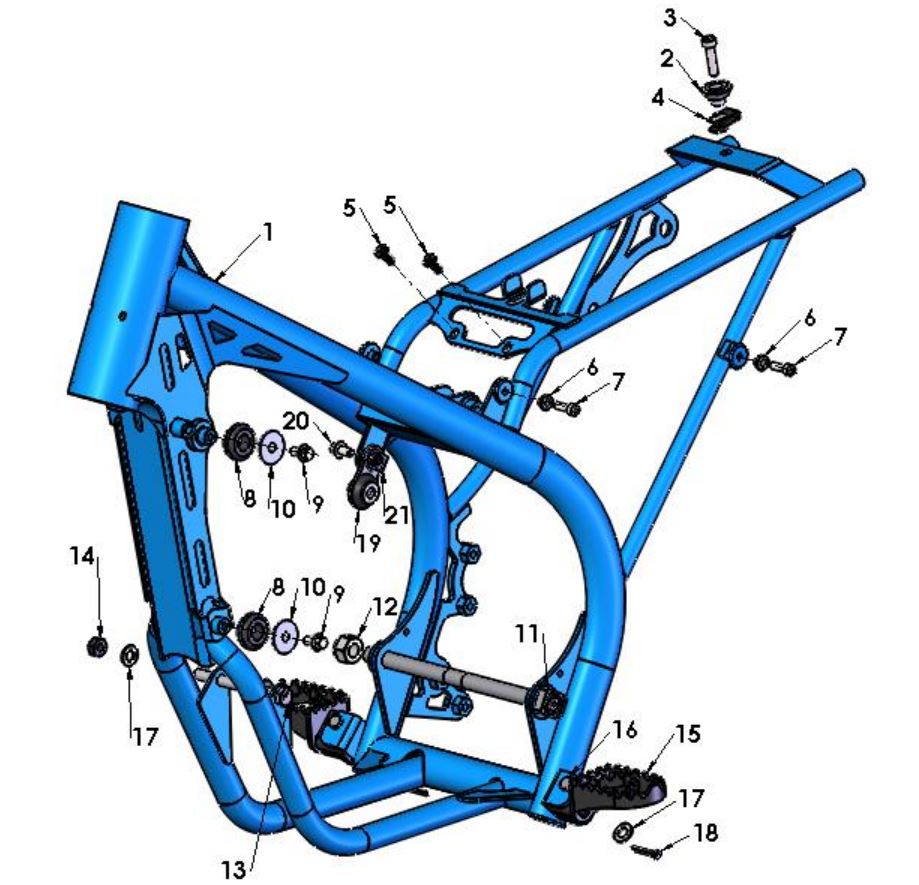

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FACS2019 | FRAME - 2019 CX50 SR KING VENOM | $ 653.08 |
|
| 2 | TCC60018 | SEAT MOUNT SPACER REAR 65/50 | $ 13.33 |
|
| 3 | HCBC0625 | M6 X 25 SHCS ZINC | $ 1.09 |
|
| 4 | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $ 2.2 |
|
| 5 | HCSP0003 | SCREW - PLASCREW | $ 0.98 |
|
| 6 | TCC60017 | WASHER - 5MM BODY PANEL | $ 4.32 |
|
| 7 | HCBC0514 | M5 X 14 SHCS ZINC | $ 1.09 |
|
| 8 | MCC6GR01 | GROMMET - RADIATOR | $ 4.76 |
|
| 9 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 10 | HCWF1478 | 1/4`` FLAT WASHER 7/8`` OD | $ 0.53 |
|
| 11 | GCMU0020 | BOLT - TITANIUM - SWINGARM PIVOT and AXLE - CX50 | $ 143.42 |
|
| 12 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| 13 | HCBH0880 | M8 X 80 HH ZINC | $ 6.66 |
|
| 14 | HCNL0801 | R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL | $ 1.09 |
|
| 15 | TAMU0005 | FOOTPEG SET (LEFT & RIGHT) | $ 63.41 |
|
| 16 | FCMU0031 | CLEVIS PIN - FOOTPEG | $ 4.32 |
|
| 17 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 18 | HCCP0008 | COTTERPIN - 1/8` X 3/4` 316 STAINLESS | $ 0.53 |
|
| 19 | XCMU0033 | ISOLATION MOUNT | $ 18.34 |
|
| 20 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 21 | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $ 2.2 |
|
| ACCESSORY | TCMU0139 | ULTRAWIDE FOOTPEG KIT 50cc / 65cc | $ 77.76 |
|
| ACCESSORY | TCMU0106 | SPRING - FOOTPEG STD KING/JR PEG | $ 5.43 |
|
