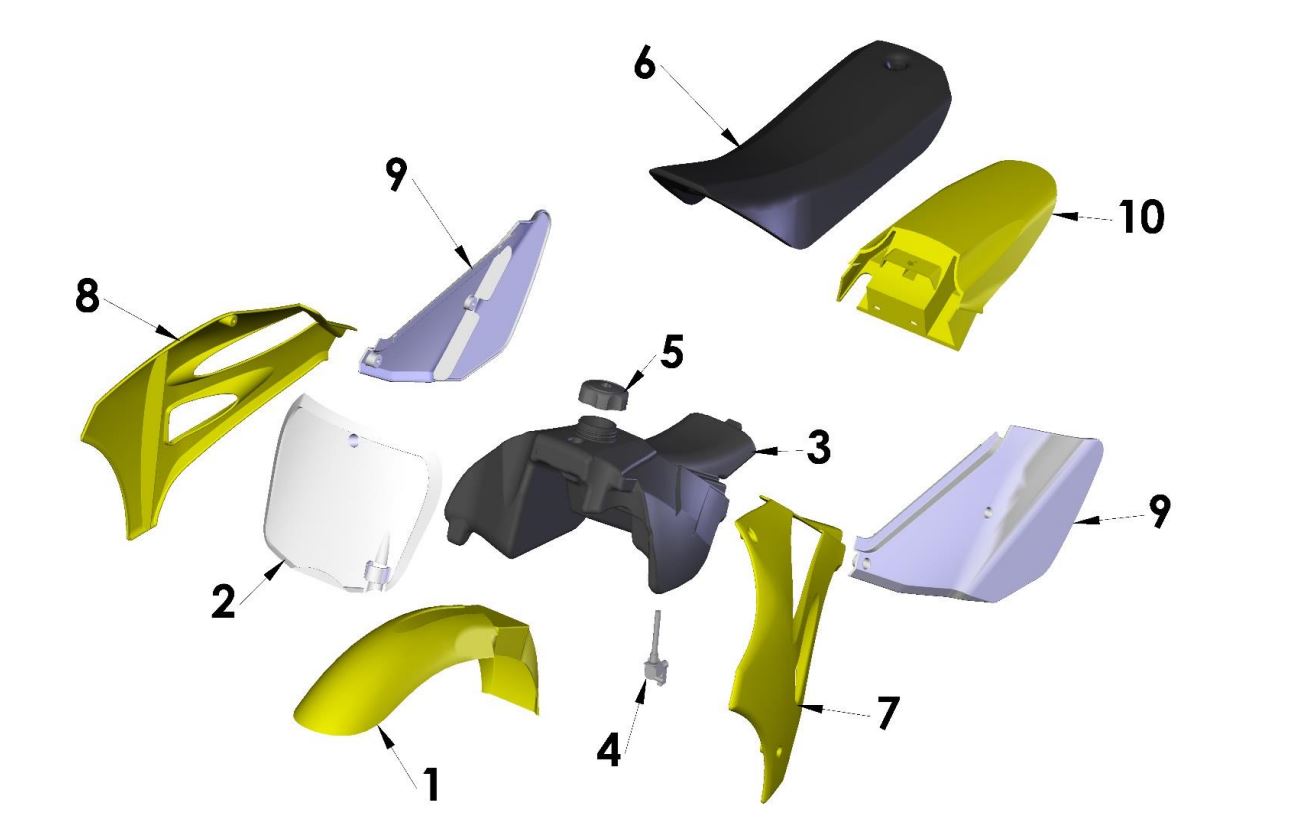

| Ref | Part Number | Description | Retail | |
|---|
| 1 FLO | TCMU0034FLL | FENDER - FRONT FLO YELLOW DRILLED WIDE - 2019 CX50 | $ 32.14 |
|
| 1 WHITE | TCMU0034WHT | FENDER - FRONT WHITE DRILLED WIDE - 2019 CX50 | $ 32.14 |
|
| 1 BLACK | TCMU0034BLK | FENDER - FRONT BLACK DRILLED WIDE - 2019 CX50 | $ 32.14 |
|
| 1 YELLOW | TCMU0034 | FENDER - FRONT YELLOW DRILLED WIDE - 2019 CX50 | $ 32.14 |
|
| 1A | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 2 WHITE | TCC60002W | NUMBER PLATE FRONT- WHITE | $ 19.45 |
|
| 2 BLACK | TCC60002B | NUMBER PLATE FRONT- BLACK | $ 19.45 |
|
| 2 YELLOW | TCC60002 | NUMBER PLATE FRONT - YELLOW | $ 19.45 |
|
| 2A | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 3 | TCC60024 | FUEL TANK - CX65/KING - 2010-2020 | $ 165.67 |
|
| 3A | HCBC0503 | R/B HCBC0530 - M5 X 30 SHCS ZINC | $ 1.09 |
|
| 3B | TCC60027 | BUSHING TANK MOUNT - 5MM | $ 7.65 |
|
| 3C | TCC60029 | SPACER - SEAT MOUNT | $ 14.33 |
|
| 3D | HCFH0620 | M6 X 20 FLAT HEAD W ZINC | $ 1.09 |
|
| 4 | TCMU0151 | PETCOCK - FUEL - NO RESERVE | $ 20.01 |
|
| 5 | TCHA0002 | CAP - FUEL TANK- 65/KING/JR/P3 | $ 22.12 |
|
| 5A | TCHA0003 | HOSE FUEL TANK CAP - 65/KING/JR/P3 | $ 2.76 |
|
| 6 | TAFW0001 | SEAT ASSEMBLY - FACTORY WORKS EDITION 2017 | $ 143.42 |
|
| 6A | | | $ |
|
| 6B | TCC60018 | SEAT MOUNT SPACER REAR 65/50 | $ 13.33 |
|
| 6C | HCBC0625 | M6 X 25 SHCS ZINC | $ 1.09 |
|
| 7 FLO | TCC60222FLL | R/B TCC60022FLO - SHROUD LEFT - FLO YELLOW CX65 - FLEX | $ 25.46 |
|
| 7 WHITE | TCC60222WHT | R/B TCC60022WHT - SHROUD LEFT WHITE CX65 - FLEX | $ 32.14 |
|
| 7 BLACK | TCC60222BLK | R/B TCC60022BLK - SHROUD LEFT BLACK CX65 - FLEX | $ 32.14 |
|
| 7 YELLOW | TCC60222 | R/B TCC60022 -SHROUD LEFT YELLOW CX65 - FLEX | $ 25.46 |
|
| 7A | TCC60017 | WASHER - 5MM BODY PANEL | $ 4.32 |
|
| 7B | HCBC0514 | M5 X 14 SHCS ZINC | $ 1.09 |
|
| 7C | HCCN0001 | 5MM CLIP-ON NUT | $ 2.09 |
|
| 7D | HCSP0004 | SCREW - PLASCREW | $ 1.09 |
|
| 8 FLO | TCC60023FLL | SHROUD RIGHT - FLO YELLOW CX65/KING | $ 25.46 |
|
| 8 WHITE | TCC60023WHT | SHROUD RIGHT WHITE CX65/KING | $ 32.14 |
|
| 8 BLACK | TCC60023BLK | SHROUD RIGHT BLACK CX65/KING | $ 32.14 |
|
| 8 YELLOW | TCC60023 | SHROUD RIGHT YELLOW CX65/KING | $ 25.46 |
|
| 8A | HCSP0004 | SCREW - PLASCREW | $ 1.09 |
|
| 9 WHITE | TCCS0001WHT | NUMBER PLATES SIDE (SET) - WHITE KING | $ 41.15 |
|
| 9 BLACK | TCCS0001BLK | NUMBER PLATES SIDE (SET) -BLACK KING | $ 41.15 |
|
| 9A | HCBC0514 | M5 X 14 SHCS ZINC | $ 1.09 |
|
| 9B | TCC60017 | WASHER - 5MM BODY PANEL | $ 4.32 |
|
| 9C | HCCN0000 | 5MM EXTRUDED ``U`` NUT | $ 2.09 |
|
| 10 FLO | TCCS0005FLL | R/B TCC60007 - FENDER - REAR KING FLO YELLOW | $ 32.8 |
|
| 10 WHITE | TCCS0005WHT | FENDER - REAR KING WHITE | $ 32.8 |
|
| 10 BLACK | TCCS0005BLK | FENDER - REAR KING BLACK | $ 32.8 |
|
| 10 YELLOW | TCCS0005 | R/B TCC60007 - FENDER - REAR KING YELLOW | $ 32.8 |
|
| 10A | HCSP0004 | SCREW - PLASCREW | $ 1.09 |
|
| 10B | HCBC0514 | M5 X 14 SHCS ZINC | $ 1.09 |
|
| 10C | HCWP0002 | WASHER ID5MM THICK | $ 0.31 |
|
| 10D | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $ 2.2 |
|
| BLACK | TKCS2019BLK | BODYWORK KIT - 2019 - KING - BLACK | $ 143.42 |
|
| GRAPHICS | TCMU2019 | OBSOLETE - GRAPHICS KIT 2019 - 65 / KING | $ -0.02 |
|
| WHITE | TKCS2019WHT | BODYWORK KIT - 2019 - KING - WHITE | $ 143.42 |
|
| YELLOW | TKCS2019Y | BODYWORK KIT - 2019 - KING - YELLOW | $ 143.42 |
|
