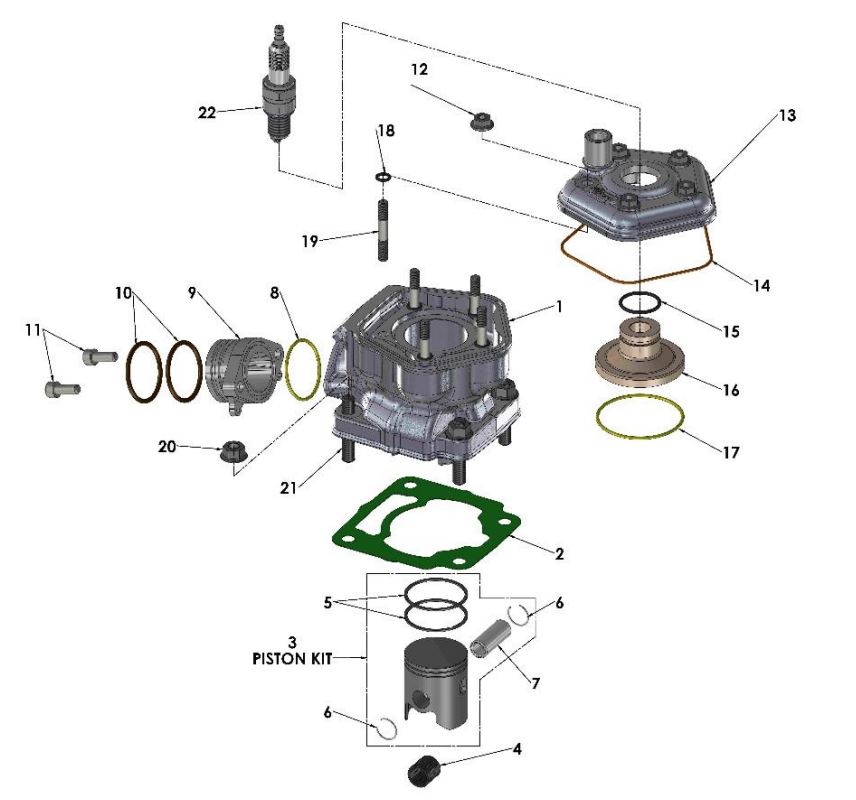

| Ref | Part Number | Description | Retail | |
|---|
| 1 | EKMU0015 | R/B EKMU0361 CYLINDER KIT - VENOM 50CC - KG JR P3 | $ 488.38 |
|
| 2A | ZCMU0102 | BASE GASKET - 0.2MM - CX50 VENOM | $ 9.21 |
|
| 2B | ZCMU0103 | BASE GASKET - 0.3MM - CX50 VENOM | $ 9.21 |
|
| 2C | ZCMU0104 | BASE GASKET - 0.4MM - CX50 VENOM | $ 9.21 |
|
| 2D | ZCMU0105 | BASE GASKET - 0.5MM - CX50 VENOM | $ 9.21 |
|
| 2E | ZCMU0106 | BASE GASKET - 0.6MM - CX50 VENOM | $ 9.21 |
|
| 2F | ZCMU0107 | IF 0.7MM GASKET IS NEEDED USE ZCMU0103 AND ZCMU0104 TOGETHER | $ 0 |
|
| 2G | ZCMU0108 | BASE GASKET - 0.8MM - CX50 VENOM | $ 9.21 |
|
| 3A | ECMU0276A | PISTON KIT-39MM NON-BRIDGED A | $ 104.47 |
|
| 3B | ECMU0276B | PISTON KIT-39MM NON-BRIDGED B | $ 104.47 |
|
| 3C | ECMU0276C | PISTON KIT-39MM NON-BRIDGED C | $ 104.47 |
|
| 3D | ECMU0276D | PISTON KIT-39MM NON-BRIDGED D | $ 104.47 |
|
| 4 | ECMU0077 | BEARING - WRIST PIN FOR 50CC | $ 16.67 |
|
| 5 | ECMU0155 | RING SET 39MM 50CC | $ 32.14 |
|
| 6 | ECMUSR00 | CIRCLIP - PAIR - 39MM PISTON | $ 4.43 |
|
| 7 | ECKG0012 | WRIST PIN - 50CC | $ 17.22 |
|
| 8 | ZCMUOR07 | O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP | $ 4.43 |
|
| 9 | ECMU0262 | FLANGE - EXHAUST CX50 VENOM & 65 2017-2025 | $ 49.94 |
|
| 10 | ZCMOTE11 | O-RING - EXHAUST FLANGE | $ 3.2 |
|
| 11 | HCBC0612 | M6 X 12 SHCS ZINC | $ 1.09 |
|
| 12 | HCNF0601 | 6MM FLANGE NUT-ZINC - CLASS 10 | $ 0.64 |
|
| 13 | ECC60149 | CYLINDER HEAD OUTER - 65CC & VENOM | $ 98.9 |
|
| 14 | ZCC60009 | O-RING - CYL HEAD LARGE - 65CC & VENOM | $ 7.65 |
|
| 15 | ZCMUOR23 | ORING - HEAD INSERT - VITON | $ 4.98 |
|
| 16 | ECMU0279 | INSERT - HEAD - VENOM CX50 - 2017 | $ 98.9 |
|
| 17 | ZCMUOR05 | O-RING - HEAD - MEDIUM 50CC | $ 8.88 |
|
| 18 | ZCMUOR03 | O-RING 6.07X1.78 SILICONE | $ 1.09 |
|
| 19 | ECC60107 | STUD - CYLINDER HEAD 6MM X 41MM | $ 5.43 |
|
| 20 | HCNF0801 | 8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS | $ 1.09 |
|
| 21 | ECC60109 | STUD - CYLINDER 8MM X 44.5MM | $ 7.21 |
|
| 22 | ECMU0010I | R/B ECMU0151 SPARK PLUG AUTOLITE XS61 IRIDIUM | $ 12.77 |
|
| ACCESSORY | ZKMUOR13 | ORING KIT - TOP END - CX65 2013 TO CURRENT & ALL VENOM | $ 16.11 |
|
| ENGINE | EACS2017 | ENGINE - CX50SR 2017 - LATER- VENOM | $ 1889.53 |
|
| TOOL | MCMUTL03 | TOOL - PISTON STOP | $ 14.45 |
|
