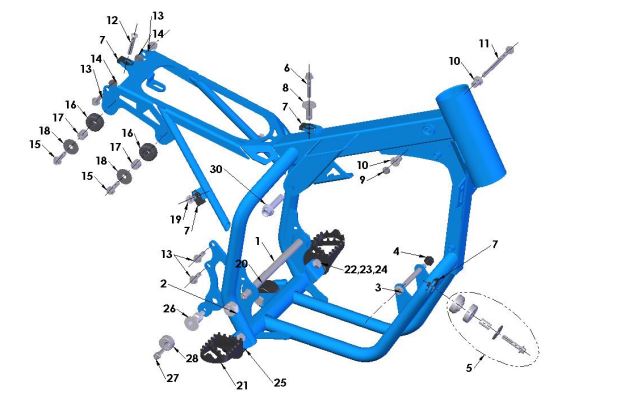

| Ref | Part Number | Description | Retail | |
|---|
| 1 | HCBH1203 | R/B WCMU0016 - M12 X 188.5 PIVOT BOLT | $ 32.14 |
|
| 2 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| 3 | HCBH0880 | M8 X 80 HH ZINC | $ 6.66 |
|
| 4 | HCNL0801 | R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL | $ 1.09 |
|
| 5 | MCMUGR02 | GROMMET KIT PIPE & SPACER | $ 9.88 |
|
| 6 | HCBF0635 | M6 X 35 FLANGE HD HEX 8MM ZINC 8.8 | $ 1.09 |
|
| 7 | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $ 2.2 |
|
| 8 | TCHA0004 | BUSHING-REAR TANK MOUNTING | $ 9.88 |
|
| 9 | HCNL0601 | M6 LOCKNUT | $ 1.09 |
|
| 10 | TCHA0006 | BUSHING-MOUNTING | $ 7.65 |
|
| 11 | HCBC0685 | M6 X 85 SHCS ZINC | $ 1.54 |
|
| 12 | HCBB0635 | M6 X 35 BUTTON HEAD ZINC | $ 1.09 |
|
| 13 | HCBF0620 | M6 X 20 FLANGE HD HEX 8MM ZINC 8.8 | $ 1.09 |
|
| 14 | HCNF0602 | 6MM NYLOC FLANGE NUT CLASS 8 | $ 1.09 |
|
| 15 | HCBF0625 | M6 X 25 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 16 | MCMUGR03 | GROMMET FOR SILENCER & UPPER KING RADIATOR MOUNT | $ 4.98 |
|
| 17 | TCKG0001 | SPACER GENERAL 1/2DIA 13.2 LG | $ 2.76 |
|
| 18 | HCWF1478 | 1/4`` FLAT WASHER 7/8`` OD | $ 0.53 |
|
| 19 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 20 | FCC60020 | CHAIN ROLLER W BOLT BEARING & SEALS | $ 18.34 |
|
| 21 | TAMU0005 | FOOTPEG SET (LEFT & RIGHT) | $ 63.41 |
|
| 22 | FCMU0031 | CLEVIS PIN - FOOTPEG | $ 4.32 |
|
| 23 | HCWF0803 | R/B HCWF0801 - 8MM FLAT WASHER CLEAR ZINC | $ 0.53 |
|
| 24 | HCCP0008 | COTTERPIN - 1/8` X 3/4` 316 STAINLESS | $ 0.53 |
|
| 25 | TCMU0106 | SPRING - FOOTPEG STD KING/JR PEG | $ 5.43 |
|
| 26 | BCMU0027 | PIVOT BOLT - ALUM BRAKE PEDAL | $ 22.12 |
|
| 27 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 28 | FCEX0018 | BRAKE ADJUST ECCENTRIC | $ 13.22 |
|
| 29 | HCBF1040 | R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER | $ 7.65 |
|
