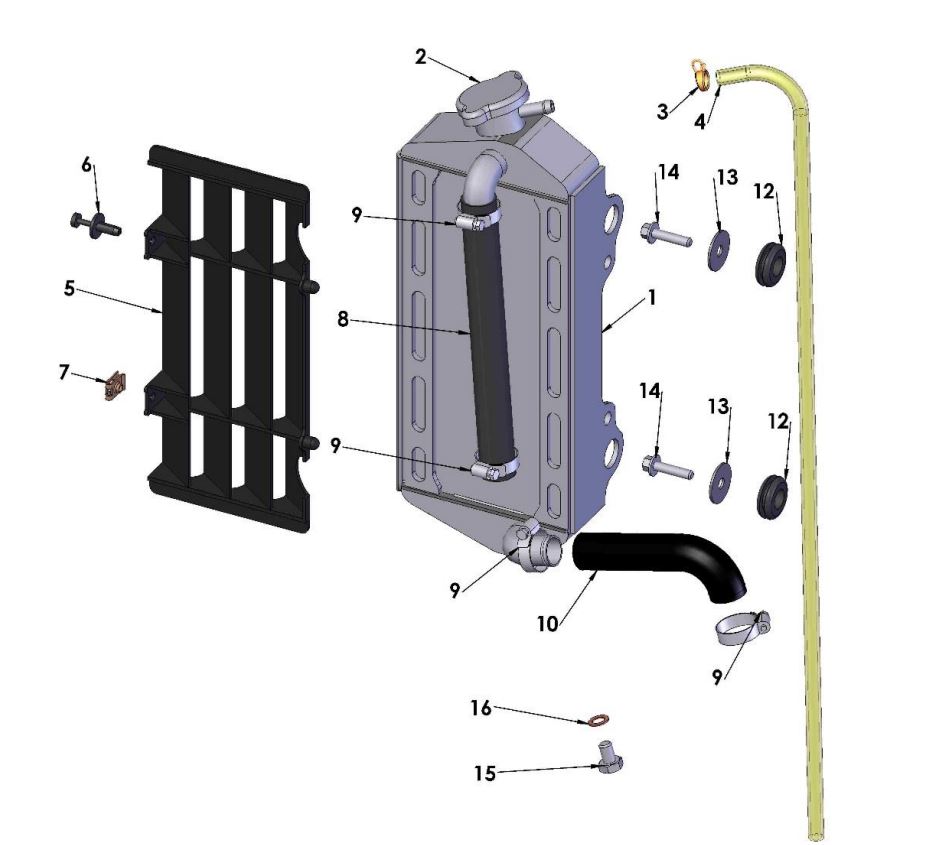

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FCC60060 | RADIATOR CX65 2012 - 2021 | $ 216.86 |
|
| 2 | FCMU0052 | RADIATOR CAP 1.3 BAR - WITH RIBS | $ 17.67 |
|
| 3 | MCMUCL05 | CLAMP-CARB HOSE 10MM | $ 0.53 |
|
| 4 | FCKG0214 | HOSE RADIATOR OVERFLOW | $ 11.88 |
|
| 5 | FCDC0009 | RADIATOR LOUVER-CX65 | $ 18.78 |
|
| 6 | HCPP0001 | PUSH PIN - REMOVABLE - CX65 RAD LOUVER | $ 1.64 |
|
| 7 | HCCN0000 | 5MM EXTRUDED ``U`` NUT | $ 2.09 |
|
| 8 | ECC60034 | HOSE - TOP RAD CX65 - 2012 AND NEWER | $ 17.67 |
|
| 9 | MCMUCL07 | HOSE CLAMP (14 - 27MM) | $ 2.76 |
|
| 9 | MCMUCL07 | HOSE CLAMP (14 - 27MM) | $ 2.76 |
|
| 10 | ECC60192 | R/B ECC60192P - HOSE - LOWER RADIATOR | $ 18.78 |
|
| 12 | MCMUGR03 | GROMMET FOR SILENCER & UPPER KING RADIATOR MOUNT | $ 4.98 |
|
| 13 | HCWF1478 | 1/4`` FLAT WASHER 7/8`` OD | $ 0.53 |
|
| 14 | HCBF0620 | M6 X 20 FLANGE HD HEX 8MM ZINC 8.8 | $ 1.09 |
|
| 15 | HCBH0805 | M8 X 12 HH ZINC | $ 1.09 |
|
| 16 | HCWC0000 | CRUSH WASHER - 8MM COPPER 0.8 THICK | $ 1.09 |
|
| ACCESSORY | ECR60020 | HOSE SET SILICONE CX65 RED 2015 | $ 87.78 |
|
| ACCESSORY | ECR60021 | HOSE SET SILICONE CX65 BLUE 2015 | $ 87.78 |
|
| TOOL | MCMUTL16 | TOOL - RADIATOR CAP REMOVAL | $ 22.24 |
|
