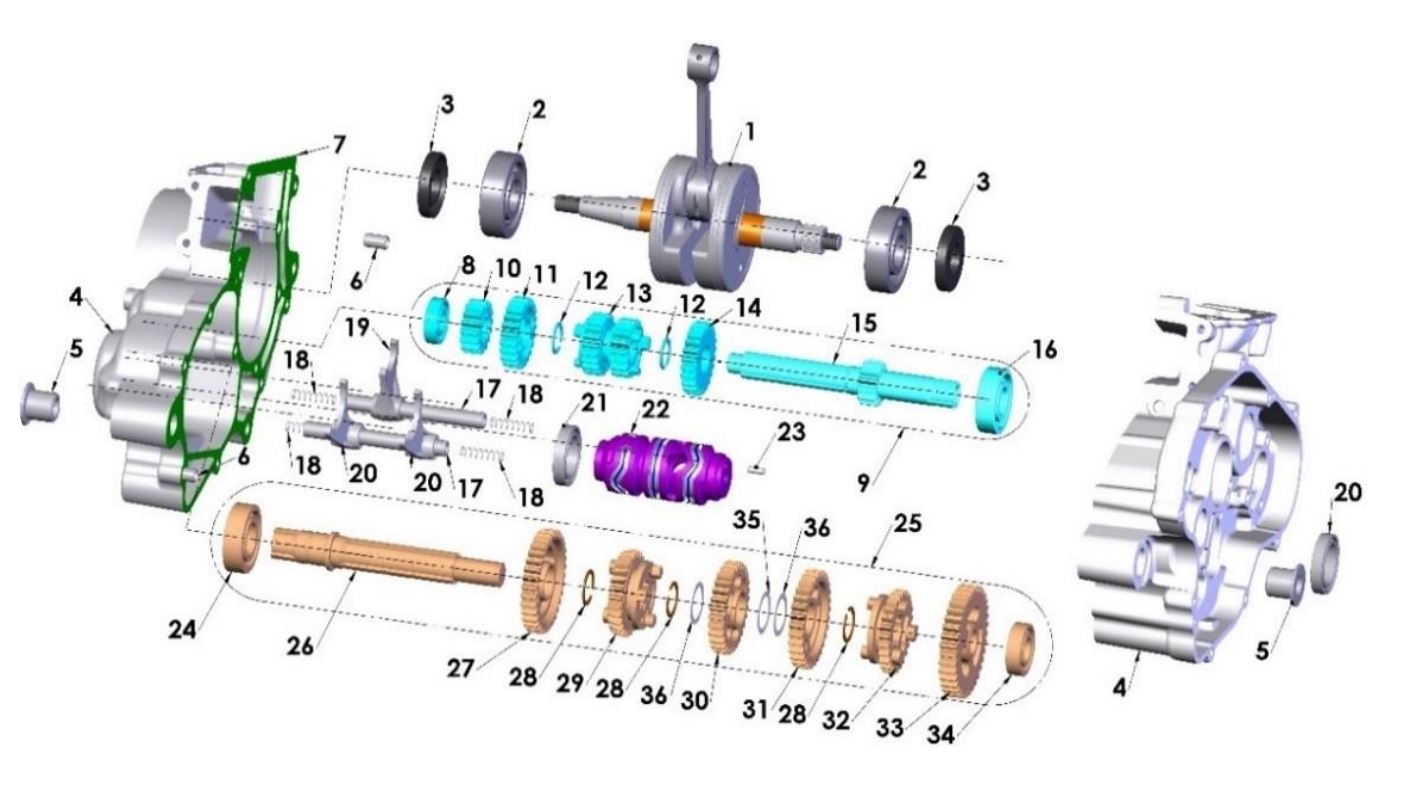

| Ref | Part Number | Description | Retail | |
|---|
| 1 | ECC60219 | R/B ECC60188 CRANKSHAFT 65 2017 | $ 372.65 |
|
| 2 | ECR60007 | BEARING - CRANKSHAFT - C4 | $ 38.81 |
|
| 3 | ECDC0024 | SEAL - CRANKSHAFT | $ 10.33 |
|
| 4 | EKC62015 | | $ |
|
| 5 | ECC60028 | BUSHING - ENGINE PIVOT - 12MM | $ 13.22 |
|
| 6 | ECWX0025 | R/B ECMU0122 - HOLLOW DOWEL - 8.4 x 14 x 7 | $ 2.2 |
|
| 7 | ZCC60014 | GASKET - CENTERCASE PV 2015 CX65 | $ 15.56 |
|
| 8 | ECKG0031 | BEARING 6001 NO SEALS | $ 9.88 |
|
| 9 | EAC60041 | PRIMARY SHAFT SUB-ASSY - 2016 - NO BEARINGS | $ 277.42 |
|
| 10 | ECC60306 | GEAR - 2ND INPUT 16T INVOLUTE | $ 51.05 |
|
| 11 | ECDC0005 | GEAR - 5TH INPUT 23T | $ 51.05 |
|
| 12 | ECDC0003 | SNAP RING - EXT 17MM | $ 2.2 |
|
| 13 | ECC60304 | GEAR - 3/4TH INPUT 18/21T - INVOLUTE | $ 71.53 |
|
| 14 | ECDC0002 | GEAR - 6TH INPUT 24T | $ 55.5 |
|
| 15 | ECC60301 | SHAFT - TRANS INPUT - INVOLUTE | $ 110.03 |
|
| 16 | ECMU0016 | BEARING - 50CC CRANKSHAFT & 65CC TRANS | $ 22.12 |
|
| 17 | ECC60070 | ROD - SHIFTER - HOLLOW (USE WITH ECC60071 SPRING) | $ 16.56 |
|
| 18 | ECC60071 | SPRING - SHIFTER ROD | $ 5.43 |
|
| 19 | ECDC0048 | SHIFT FORK - INPUT | $ 54.39 |
|
| 20 | ECDC0049 | R/B ECC60256 - SHIFT FORK,OUTPUT | $ 61.07 |
|
| 21 | ECDC0022 | BEARING - SHIFT DRUM | $ 22.12 |
|
| 22 | ECC60186 | SHIFT DRUM - MACHINED - 2015 & NEWER | $ 143.42 |
|
| 23 | ECDC0051 | DOWEL PIN 4X16.0 | $ 2.2 |
|
| 24 | ECKGBR01 | BEARING OUTPUT- 50 & 65 | $ 29.91 |
|
| 25 | EAC60042 | OUTPUT SHAFT SUB-ASSY - 2016 - NO BEARINGS | $ 356.38 |
|
| 26 | ECDC0307 | | $ |
|
| 27 | ECC60114 | GEAR - 2ND OUTPUT 34T 4 DOG SQUARE | $ 58.4 |
|
| 28 | ECDC0017 | SNAP RING - EXT 18MM HEAVY DUTY | $ 2.76 |
|
| 29 | ECC60323 | GEAR - 5TH OUTPUT 28T INVOLUTE 4LD | $ 0 |
|
| 30 | ECC60111 | R/B ECC60111M - GEAR 4TH OUTPUT 30T 4 DOG SQUARE | $ 58.4 |
|
| 31 | ECC60110 | GEAR - 3RD OUTPUT 31T 4 DOG SQUARE | $ 58.4 |
|
| 32 | ECC60325 | GEAR - 6TH OUTPUT 26T INVOLUTE - 4LD | $ 0 |
|
| 33 | ECC60116 | R/B - ECC60116M - GEAR - 1ST OUTPUT 37T 4 DOG SQUARE | $ 58.4 |
|
| 34 | ECDC0021 | BEARING - OUTPUT | $ 27.68 |
|
| 35 | ECC60160 | SHIM - TRANSMISSION - 26 x 0.2 x 20 | $ 1.91 |
|
| 36 | ECC60161 | SHIM - TRANSMISSION - 25 x 0.5 x 20 | $ 1.91 |
|
| ACCESSORY | EKEX0001 | R/B EKC60007 - CONNECTING ROD KIT 90mm MANUAL ENG | $ 92.23 |
|
| ACCESSORY | ECMU0040 | SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15 | $ 2.76 |
|
| ACCESSORY | ECMU0040T | SHIM - CLUTCH TO HUB SPACER 22 x 0.38 x 15 | $ 2.76 |
|
| CASE SCREWS - LONG | HCBC0604 | R/B HCBC0635 - M6 X 35 SHCS ZINC | $ 1.09 |
|
| CASE SCREWS - SHORT | HCBC0603 | R/B HCBC0630 - M6 X 30 SHCS ZINC | $ 1.09 |
|
| ENGINE | EAC62017 | ENGINE - 2017 CX65 PV | $ 2724.13 |
|
