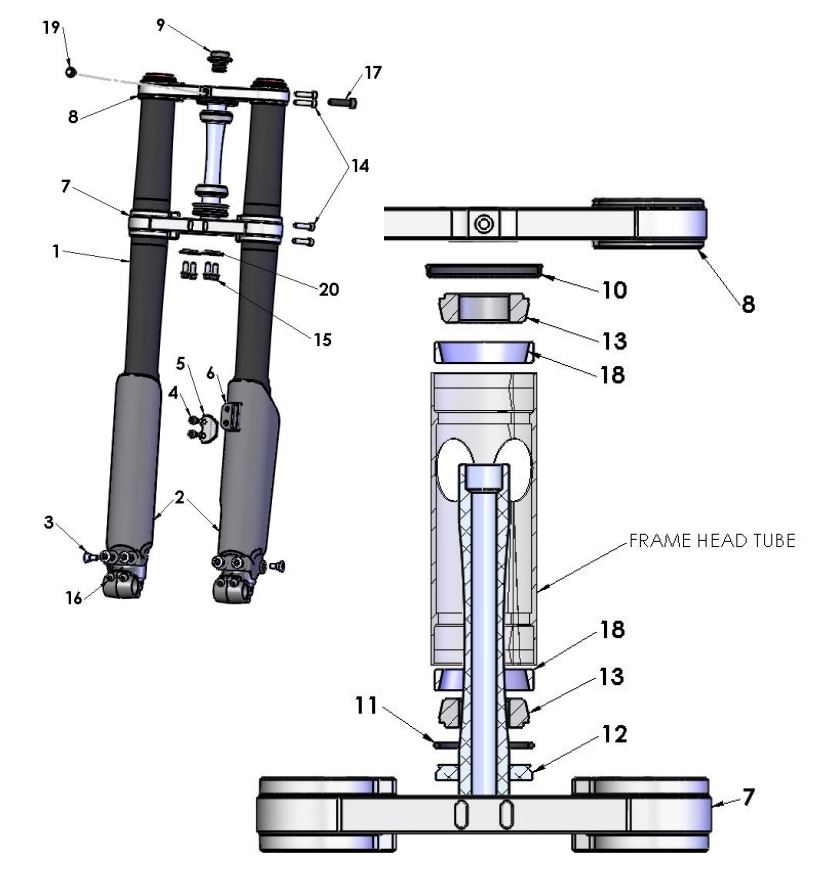

| Ref | Part Number | Description | Retail | |
|---|
| 1 | KAC62013 | FORK SET COMPLETE CX65 37MM | $ 834.42 |
|
| 2 | KCC60014 | OBSOLETE - GUARD - FORK - SET CX65 - 2009 - 2021 | $ 29.91 |
|
| 3 | HCSP0610 | BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR | $ 3.2 |
|
| 4 | HCBC0612 | M6 X 12 SHCS ZINC | $ 1.09 |
|
| 5 | BCC60015 | BRAKELINE CLAMP | $ 5.54 |
|
| 6 | HCNS0601 | M6 NUT DIN 934 CLASS 8 - ZINC CLEAR | $ 0.53 |
|
| 7 | FAC60024 | TRIPLE CLAMP BOTTOM ASSY CX65 37MM - 2019 | $ 211.3 |
|
| 8 | FCC60079 | TRIPLE CLAMP TOP - 2019 | $ 154.54 |
|
| 9 | FCMU0074 | BOLT - STEERING STEM - ALUMINUM - 2019 | $ 32.14 |
|
| 10 | FCMU0079 | DUST SEAL - STEERING HEAD - SMALL ID | $ 9.88 |
|
| 11 | FCMU0044 | O-RING - 51 X 45 X 3 - STEERING HEAD | $ 2.09 |
|
| 12 | FCC60081 | SPACER - ORING HOLDER - BOTTOM TRIP CLAMP - CX65 | $ 25.46 |
|
| 13 | FCMU0004 | BEARING - STEERING TAPERED | $ 16.56 |
|
| 14 | HCBC0625 | M6 X 25 SHCS ZINC | $ 1.09 |
|
| 15 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 16 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 17 | HCBC0806 | R/B HCBC0830 - M8 X 30 SHCS ZINC | $ 1.09 |
|
| 18 | FCMU0011 | RACE FOR STEERING HEAD | $ 8.77 |
|
| 19 | HCBF0612 | R/B HCBF1612 - 6 X 12 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 20 | TCC60021 | SPACER FENDER FRONT | $ 4.43 |
|
| ACCESSORY | FKMU0008 | KIT - STEERING STEM SEALS AND BEARINGS | $ 54.39 |
|
