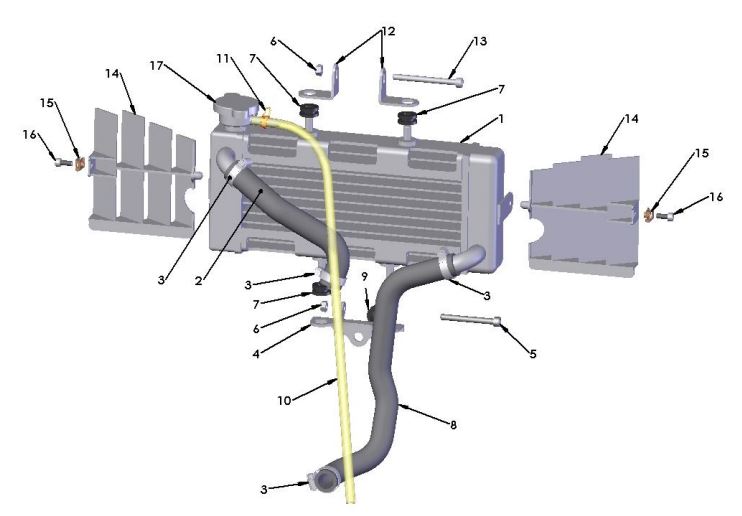

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FACJ0005 | RADIATOR - JR/P3 2017 - 2024 | $ 205.73 |
|
| 2 | FCCJ0046 | HOSE - RADIATOR - LEFT SIDE - VENOM JR 2018 | $ 22.24 |
|
| 3 | MCMUCL07 | HOSE CLAMP (14 - 27MM) | $ 2.76 |
|
| 4 | EACJ0001 | BRACKET ASSY BOTTOM RAD - JR/P3 | $ 22.12 |
|
| 5 | HCBC0608 | R/B HCBC0655 - M6 X 55 SHCS ZINC | $ 1.09 |
|
| 6 | HCNL0601 | M6 LOCKNUT | $ 1.09 |
|
| 7 | MCKGGR00 | GROMMET-UNIVERSAL-COBRA | $ 2.2 |
|
| 8 | FCCJ0029 | HOSE - RADIATOR - RIGHT SIDE - VENOM ENGINE | $ 22.24 |
|
| 9 | MCKGGR00 | GROMMET-UNIVERSAL-COBRA | $ 2.2 |
|
| 10 | FCMU0049 | HOSE RADIATOR OVERFLOW JR/P3 | $ 11.88 |
|
| 11 | MCMUCL05 | CLAMP-CARB HOSE 10MM | $ 0.53 |
|
| 12 | ECHA0109 | MOUNT - RADIATOR UPPER - JR/P3 | $ 8.77 |
|
| 13 | HCBC0665 | M6 X 65 SHCS ZINC | $ 1.54 |
|
| 14 | FCCJ0002 | LOUVERS SET RADIATOR LEFT & RIGHT | $ 25.46 |
|
| 15 | HCCN0000 | 5MM EXTRUDED ``U`` NUT | $ 2.09 |
|
| 16 | HCBC0501 | R/B HCBC0512 - M5 X 12 SHCS ZINC | $ 1.09 |
|
| 17 | FCMU0052 | RADIATOR CAP 1.3 BAR - WITH RIBS | $ 17.67 |
|
| TOOL | MCMUTL16 | TOOL - RADIATOR CAP REMOVAL | $ 22.24 |
|
