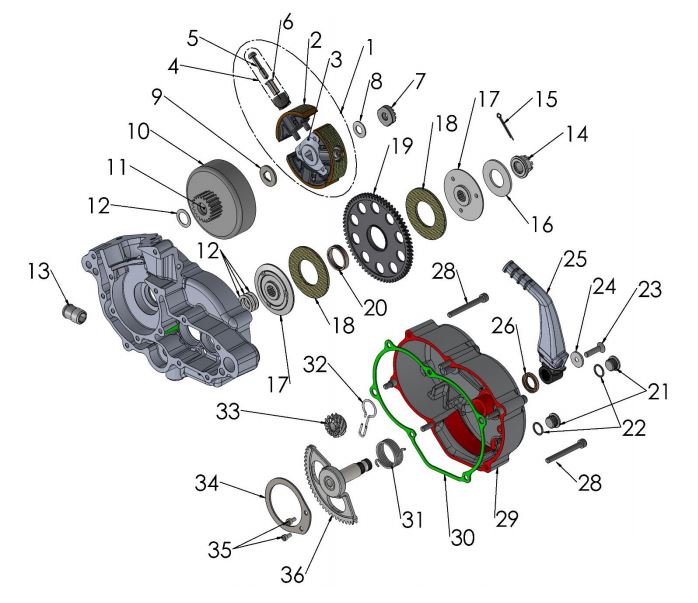

| Ref | Part Number | Description | Retail | |
|---|
| 1 | CACJ0100 | CLUTCH - JR/P3 - COMPLETE ASSY - 5GX - BLACK BAG | $ 328.88 |
|
| 2 | CACJ0010 | 3 SHOES & STACKS W BOLTS - JR/P3 - 5GX - BLACK BAG | $ 208.88 |
|
| 3 | CCMU0005 | CLUTCH ARBOR - TRI-SIDE | $ 127.84 |
|
| 4 | CACJ0001 | WASHER STACKS - JR/P3 - SET OF 3 - CLUTCH 5GX - BLACK BAG | $ 41.88 |
|
| 5 | HCBT0001 | BOLT - TORX - 5GX CLUTCH - M6 X 29 - SPECIAL | $ 8.77 |
|
| 6 | CCMU0008 | SLEEVE - CLUTCH STACK 5GX | $ 4.32 |
|
| 7 | ECMU0018 | CRANKSHAFT START NUT - CLUTCH NUT | $ 31.02 |
|
| 8 | ECDC0030 | BELLVILLE - LOCK WASHER - 10MM | $ 3.2 |
|
| 9 | CCMU0007 | SHIM - CLUTCH BACKING SPACER - 3 SPLINE | $ 14.33 |
|
| 10 | ECMU0120 | CLUTCH BASKET NEDL BRNG - V4 | $ 99.57 |
|
| 11 | ECMU0119 | BEARING - NEEDLE - CLUTCH 3 SHOE | $ 14.33 |
|
| 12 | ECMU0040 | SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15 | $ 2.76 |
|
| 13 | ECMU0132 | FITTING-COOLANT | $ 27.68 |
|
| 14 | ECMU0307 | NUT V3 CFD | $ 20.56 |
|
| 15 | HCCP0002 | R/B HCCP0010 COTTERPIN 3/32 X 1 1/2\" | $ 0.53 |
|
| 16 | ECMU0308 | BELLEVILLE SPRING V3 CFD | $ 10.99 |
|
| 17 | ECMU0306 | SLIP HUB V3 CFD | $ 42.82 |
|
| 18 | ECMU0249 | FRICTION MATERIAL V3 CFD THICK | $ 18.78 |
|
| 19 | ECMU0301 | GEAR V3 CFD | $ 176.8 |
|
| 20 | ECMU0305 | BUSHING V3 CFD 7MM | $ 16.22 |
|
| 21 | ECMU0272 | PLUG - OIL FILL - OIL DRAIN - COOLANT - VENOM | $ 12.11 |
|
| 22 | ZCMUB014 | O-RING - KICK SHAFT & OIL FILL PLUG | $ 1.42 |
|
| 23 | HCFH0616 | M6 X 16 FLAT HEAD W ZINC | $ 1.09 |
|
| 24 | ECMU0250 | WASHER - KICK ARM | $ 9.88 |
|
| 25 | EAMU0011 | LEVER KICK START ASSEMBLY | $ 83.32 |
|
| 26 | ECDC0078 | SEAL - KICKSTARTER | $ 4.32 |
|
| 28 | HCBC0608 | R/B HCBC0655 - M6 X 55 SHCS ZINC | $ 1.09 |
|
| 29 | ECMU0263 | COVER -CLUTCH MACHINED W SEAL AND PIN - CX50 VENOM | $ 154.54 |
|
| 30 | ZCMU0017 | GASKET - CLUTCH COVER - CX50 VENOM | $ 14.78 |
|
| 31 | ECMU0273 | SPRING - KICKSTART RETURN - CX50 VENOM | $ 15.56 |
|
| 32 | ECMUSP01 | SPRING - KICK START DOG-SM.SPRING | $ 8.88 |
|
| 33 | ECMU0207 | KICKSTARTER SMALL GEAR | $ 37.7 |
|
| 34 | ECMU0278 | BRACKET - KICK SHAFT - CX50 VENOM | $ 7.21 |
|
| 35 | HCBC0508 | M5 X 8mm SHCS CLEAR ZINC | $ 4.43 |
|
| 36 | ECMU0269 | GEAR - KICKSTART - CX50 VENOM | $ 110.03 |
|
| KIT | HKCP0001 | COTTERPIN PACK OF 10 1/8\" X 1 1/4\" | $ 4.43 |
|
| KIT | EKMU0002 | KICKSTART PIVOT KIT SPRING-BALL-SCREW | $ 7.65 |
|
| KIT | HKAM0022 | HARDWARE KIT - CLUTCH SHIM | $ 29.5 |
|
| KIT | EKMU0033 | V3 CFD REFRESH KIT FOR 2011 & LATER | $ 50.61 |
|
| TOOL | MCMUTL40 | TOOL - CFD - CHECK STOP PIN - VENOM | $ 27.68 |
|
| TOOL | MCMUTL18 | TOOL - SPROCKET SOCKET - HIGH TORQUE | $ 43.26 |
|
| TOOL | ECMU0078 | TOOL - SOCKET - CLUTCH NUT - CX50 | $ 35.59 |
|
| TOOL | MCMUTL03 | TOOL - PISTON STOP | $ 14.45 |
|
| TOOL | MCMUTL70 | TOOL - PULLER - CLUTCH & FLYWHEEL - CX50 | $ 27.68 |
|
