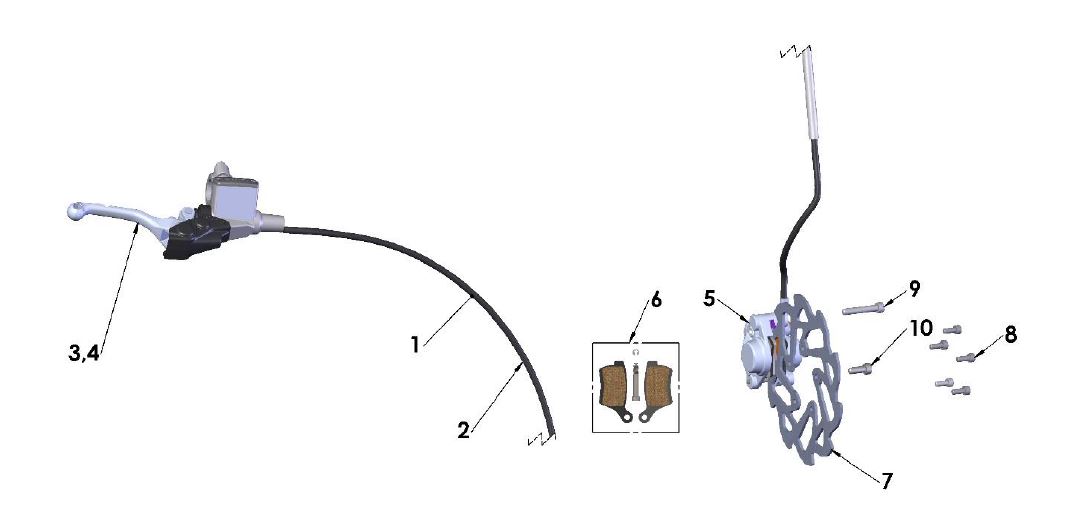

| Ref | Part Number | Description | Retail | |
|---|
| 1 | BAMU0007 | BRAKE ASSY - FRONT CARD - JR P3- 2 PISTON - BUSHING STYLE | $ 265.82 |
|
| 2 | BCMU0048 | HOSE - FRONT BRAKE - JR/P3 | $ 54.39 |
|
| 3 | BAMU0009 | LEVER ASSEMBLY - CARD FRONT BRAKE - THIN | $ 65.52 |
|
| 4 | BAMU0006 | MASTER CYL ASSY - 11.0 FRONT BRAKE - CARD | $ 210.18 |
|
| 4A | BKC60008 | CAP & BLADDER KIT W 2 SCREWS - BRAKE & CLUTCH - ZL150 | $ 9.88 |
|
| 4B | BCC60058 | M/C CLAMP ZL150 - BRAKE AND CLUTCH | $ 17.67 |
|
| 4C | HCBF1625 | M6 X 25 FLANGED HD HEX 8MM ZINC FOR CARD MASTER CYLINDERS | $ 1.09 |
|
| 4D | BCMU0060 | BOLT - LEVER PIVOT - CARD | $ 14.33 |
|
| 4E | BCC60017 | BOOT - BRAKE AND CLUTCH MASTER CYLINDER PISTON COVER | $ 3.87 |
|
| 4G | HCSS0520 | SET SCREW - M5x 0.8 x 20mm | $ 1.09 |
|
| 4H | HCNJ0501 | 5MM JAM NUT | $ 0.53 |
|
| 4I | CKC60005 | BOLT KIT - PIVOT - MALE & FEMALE | $ 10.99 |
|
| 4J | HCSS0610 | SET SCREW-M6-1 x 10mm LG FLAT POINT | $ 1.09 |
|
| 4K | BCMU0059 | LEVER - FRONT BRAKE - THIN FORMLY | $ 39.93 |
|
| 4L | CCC60026 | SPRING - LEVER RETURN - CLUTCH & BRAKE | $ 7.65 |
|
| 4M | CCC60025 | SPACER - SPRING CENTERING - LEVER PIVOT | $ 5.43 |
|
| 4F | BKC60015 | REBUILD KIT - FRONT CARD MASTER 11MM DIA - BUSHING STYL | $ 36.7 |
|
| 5 | BAMU0020 | CALIPER ASSY - FRONT - CARD 2 PISTON | $ 143.42 |
|
| 5A | BCMU0038 | SPRING - BRAKE PAD SEPARATING - CARD 2 PISTON | $ 9.88 |
|
| 5B | BKMU0006A | R/B BKMU0006-KIT - PISTON AND SEALS - CARD 2 PISTON - ALUM | $ 32.14 |
|
| 5C | BKMU0008 | BLEED SCREW W / CAP - CARD 2 PISTON | $ 13.67 |
|
| 5D | BKMU0007 | KIT - BANJO BOLT AND WASHERS - CARD 2 PISTON | $ 13.22 |
|
| 5E | BCMU0014 | SHIM BRAKE CALIPER MOUNT 12 x 0.2 x 6 | $ 1.09 |
|
| 6 | BKMU0009 | PAD KIT - ORGANIC 505 - CARD 2 PISTON - PADS BOLT AND CLIP | $ 32.8 |
|
| 7 | BCMU0222 | ROTOR - BRAKE - FRONT/REAR - 50CC CARD | $ 65.52 |
|
| 8 | HCBC0514 | M5 X 14 SHCS ZINC | $ 1.09 |
|
| 9 | HCBC0604 | R/B HCBC0635 - M6 X 35 SHCS ZINC | $ 1.09 |
|
| 10 | HCBC0602 | R/B HCBC0620 - M6 X 20 SHCS ZINC | $ 1.09 |
|
| 11 | BCMU0116 | COVER - BRAKE & CLUTCH M/C - ROLLER LEVER STYLE - ALL BIKES | $ 12.11 |
|
| CHEMICALS | MCMUBF03 | BRAKE FLUID - BEL-RAY - RACING - 355ml | $ 18 |
|
| TOOLS | BKMU0003 | TOOL - BLEEDING KIT - FORMULA - CARD - AJP | $ 43.26 |
|
