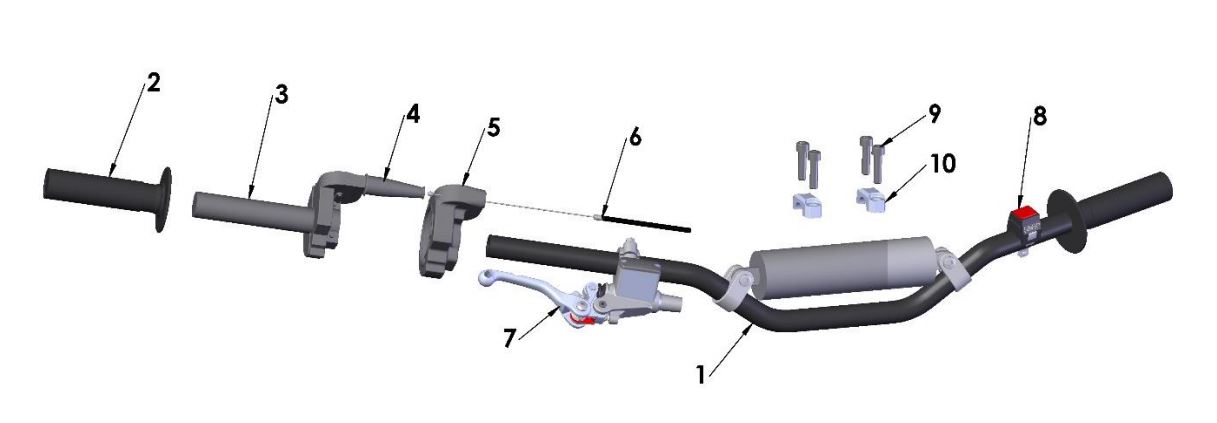

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FAMU0017 | HANDLEBARS - MICRO BARS - 50CC | $ 77.89 |
|
| 2 | TCMU0021 | GRIPS - MICRO - GREY - PAIR | $ 12.23 |
|
| 3 | FAMU0016 | THROTTLE ASSEMBLY - PRO TAPER MICRO | $ 99.03 |
|
| 3A | FAMU0015 | THROTTLE TUBE KIT - MICRO BARS | $ 77.89 |
|
| 3B | HCBC0525 | M5 x 0.8 x 25 - SHCS - DIN 912, ISO 4762, CL. 12.9 - ZINC | $ 1.09 |
|
| 3C | FCMU0041 | STOP RING - THROTTLE - MICRO BAR | $ 1.88 |
|
| 4 | FCPW0004 | THROTTLE HOUSING INLET BOOT | $ 7.77 |
|
| 5 | FCMU0021 | THROTTLE HOUSING COVER | $ 17.67 |
|
| 6 | FCMU0019 | CABLE - THROTTLE - MEDIUM | $ 14.78 |
|
| 6A | HCNJ0801 | 8MM X 1 JAMNUT | $ 0.64 |
|
| 7 | SEE BRAKE DIAGRAM | | $ |
|
| 8 | FCMU0171 | KILL SWITCH - 2021 KG & FWE | $ 22.24 |
|
| 9 | HCBC0806 | R/B HCBC0830 - M8 X 30 SHCS ZINC | $ 1.09 |
|
| 10 | TCMU0060BLK | BAR CLAMP - FORGED - BLACK | $ 9.88 |
|
| ACCESSORY | MCMUAM11 | GRIP DONUT - PAIR - PRO TAPER MICRO BAR | $ 4.43 |
|
| ACCESSORY | FKMU0004 | HANDLEBAR KIT - PRO TAPER MICRO - WITH COBRA THROTTLE | $ 166.91 |
|
| ACCESSORY | TCMU0061 | R/B TKMU0002 - HANDLE BAR RISER KIT - FORGED TRIPLE CLAMPS | $ 0 |
|
