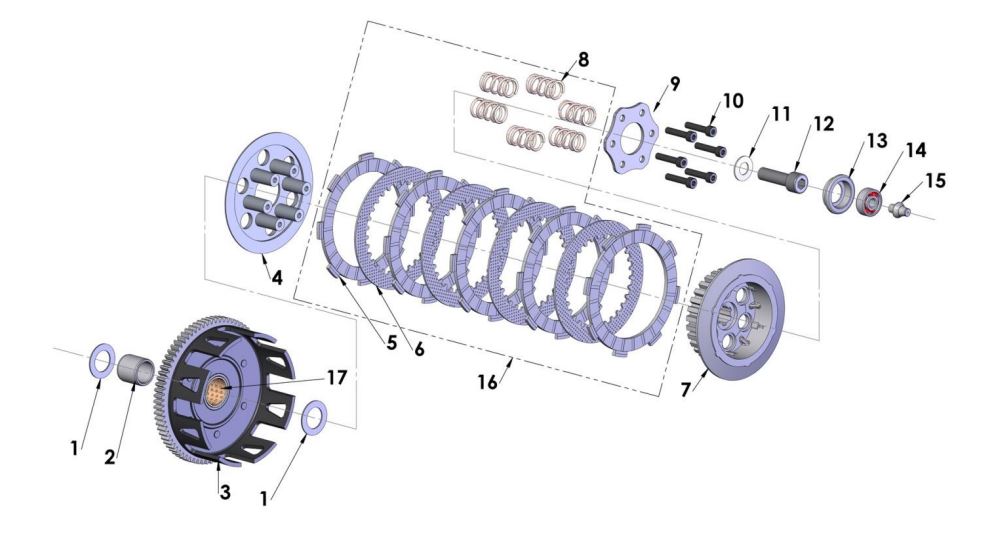

| Ref | Part Number | Description | Retail | |
|---|
| 1 | ECDC0063 | CLUTCH THRUST WASHER 1.0MM | $ 3.32 |
|
| 2 | ECDC0064 | CLUTCH BUSHING - STEEL | $ 7.77 |
|
| 3 | EAEX0003 | CLUTCH BASKET ASSY | $ 221.31 |
|
| 4 | ECDC0066 | CLUTCH PRESSURE PLATE | $ 54.39 |
|
| 5 | ECDC0068 | R/B ECDC0068W - CLUTCH DISC-FRICTION (5 REQ) | $ 9.66 |
|
| 6 | ECDC0067 | CLUTCH DISC-STEEL (4 REQ) | $ 11.08 |
|
| 7 | ECDC0069 | CLUTCH HUB | $ 65.62 |
|
| 8 | ECDC0070 | SPRING - CLUTCH (6 REQ) | $ 3.32 |
|
| 9 | ECDC0071 | PLATE - CLUTCH SPRING SINGLE | $ 15.44 |
|
| 10 | HCBC0525 | M5 x 0.8 x 25 - SHCS - DIN 912, ISO 4762, CL. 12.9 - ZINC | $ 1.09 |
|
| 11 | ECDC0030 | BELLVILLE - LOCK WASHER - 10MM | $ 3.2 |
|
| 12 | HCBF1030 | M10 X 30 FLANGE HEAD - FINE THRD | $ 3.2 |
|
| 13 | ECDC0019 | SEAT - THROW OUT BEARING | $ 21.01 |
|
| 14 | ECDC0018 | BEARING - CLUTCH THROW OUT | $ 9.88 |
|
| 15 | ECC60190 | CLUTCH PUSH ROD - 2015 | $ 18.78 |
|
| 16 | CKMU0001 | CLUTCH KIT MANUAL SPRINGS FIBERS & STEELS | $ 94.45 |
|
| 17 | ECDC0167 | CLUTCH BASKET BUSH-BRONZ OUTR | $ 22.12 |
|
| ACCESSORY | CKC60002 | CLUTCH BASKET REPLACEMENT KIT | $ 111.14 |
|
