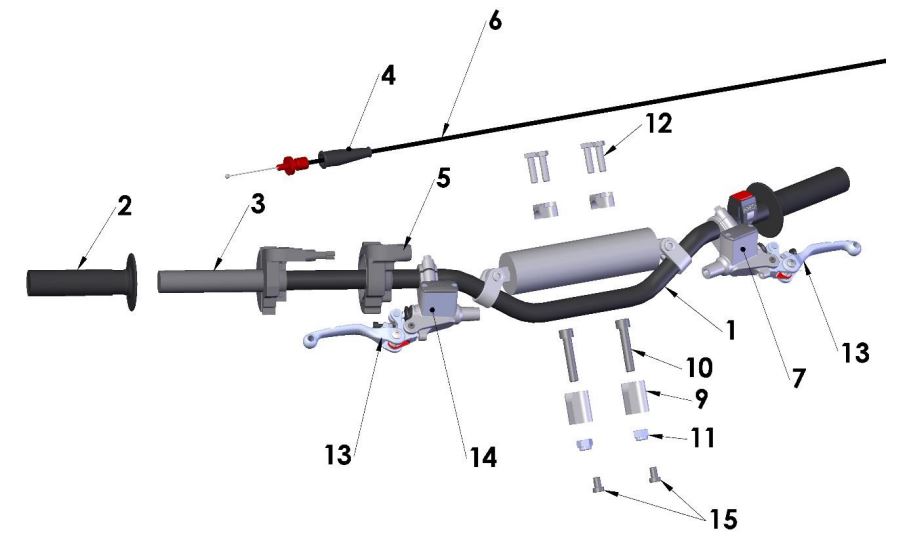

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FAC60023 | HANDLEBARS - CX65 | $ 77.89 |
|
| 1A | MCMU0001 | R/B TCMU0062 - CROSS BAR PAD - HANDLE BAR PAD | $ 14.33 |
|
| 2 | TCC60035 | GRIPS - 7/8INCH - HALF WAFFLE | $ 12.23 |
|
| 3 | FCMU0043 | THROTTLE ASSY - W CNC PULLEY | $ 46.6 |
|
| 3A | FCMU0042 | TUBE - THROTTLE - STANDARD COBRA | $ 14.33 |
|
| 4 | FCPW0004 | THROTTLE HOUSING INLET BOOT | $ 7.77 |
|
| 5 | FCMU0021 | THROTTLE HOUSING COVER | $ 17.67 |
|
| 6 | RAC60001 | CABLE - THROTTLE - CX65 | $ 17.78 |
|
| 7 | CCC60022 | MASTER CYLINDER - CLUTCH - 9.5mm MAGURA w/SHORT LEVER | $ 111.28 |
|
| 8 | FCMU0033 | KILL SWITCH | $ 22.24 |
|
| 9 | TKMU0404 | HANDLE BAR RISER KIT - SHORT (STOCK) | $ 48.83 |
|
| 9A | TKMU0403 | HANDLE BAR RISER KIT - TALL | $ 54.39 |
|
| 10 | HCBC1035 | 10X35 X 1.25 SHCS | $ 2.09 |
|
| 11 | HCNL1001 | M10 LOCKNUT-1.5 THREAD PITCH | $ 1.64 |
|
| 12 | HCBC0806 | R/B HCBC0830 - M8 X 30 SHCS ZINC | $ 1.09 |
|
| 13A | CCC60034 | LEVER - MAGURA CLUTCH - 2016 | $ 53.88 |
|
| 13B | CKC60004 | R/B BAMU0009 - LEVER ASSY - CLUTCH & BRAKE CARD M/C | $ 65.52 |
|
| 14 | BAC60010 | R/B BAMU0006 - MASTER CYLINDER ASSY - BRAKE FRONT CX65 ZL50 | $ 210.18 |
|
| 15 | HCBC0812 | M8 X 12 SHCS LOW PROFILE HEAD | $ 1.54 |
|
| KIT 1 | BKC60015 | REBUILD KIT - FRONT CARD MASTER 11MM DIA - BUSHING STYL | $ 36.7 |
|
| KIT 2 | CCC60038 | REBUILD KIT - CLUTCH MASTER CYLINDER 9.5 - MAGURA 2016 - | $ 63.88 |
|
