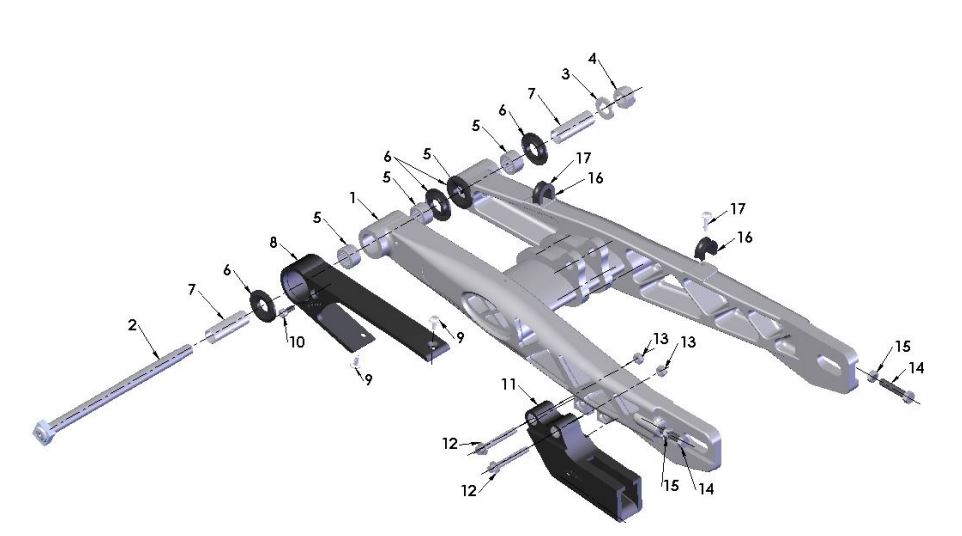

| Ref | Part Number | Description | Retail | |
|---|
| 1 | GKC60001 | SWINGARM ASSY - CX65 - COMPLETE | $ 610.79 |
|
| 2 | GCC60020 | BOLT - TITANIUM - SWINGARM PIVOT - CX65 | $ 143.42 |
|
| 3 | HCWF1202 | 12MM FLAT WASHER | $ 0.53 |
|
| 4 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| 5 | GCC60017 | BEARING - DRAWN CUP CAGED NEEDLE - SWINGARM PIVOT - 15 22 12 | $ 18.78 |
|
| 6 | GCC60018 | SEAL THRUST BEARING - SWINGARM PIVOT CX65 | $ 9.99 |
|
| 7 | GCC60019 | SPACER TUBE - SWINGARM PIVOT | $ 28.8 |
|
| 8 | TCC60004 | GUARD - CHAIN (TOP) - FOR SWINGARM | $ 21.01 |
|
| 9 | HCFH0516 | M5 X 16 FLAT HEAD | $ 1.09 |
|
| 10 | HCBC0501 | R/B HCBC0512 - M5 X 12 SHCS ZINC | $ 1.09 |
|
| 11 | PCC60004 | CHAIN GUIDE (BOTTOM) CX65 | $ 25.57 |
|
| 12 | HCBF0640 | M6 X 40 FLANGE HD HEX 8MM ZINC | $ 1.09 |
|
| 13 | HCNL0601 | M6 LOCKNUT | $ 1.09 |
|
| 14 | HCBH0701 | M7 X 35 HH ZINC | $ 1.09 |
|
| 15 | HCNS0701 | 7MM NUT | $ 0.64 |
|
| 16 | HCCC0005 | GUIDE - REAR BRAKE HOSE | $ 5.88 |
|
| 17 | HCPP0834 | #8X3/4 SELF TAPPING SCREW | $ 1.09 |
|
| 18 | GCMU0012 | GREASE FITTING SMALL - ZERK | $ 1.73 |
|
