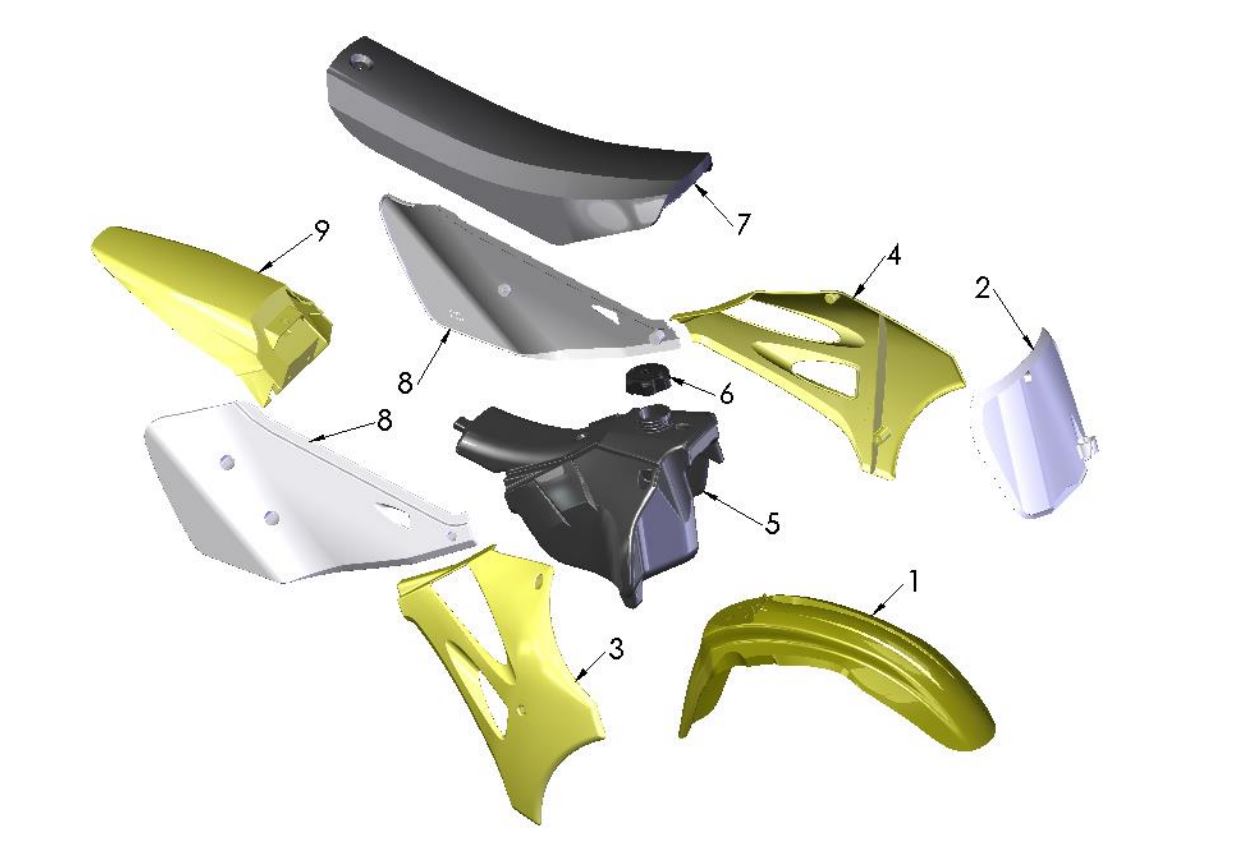

| Ref | Part Number | Description | Retail | |
|---|
| 1 | TCC60020FXX | FRONT FENDER 65CC - MEGA FLO YELLOW - 2019 | $ 33.25 |
|
| 1 | TCC60020BLK | FRONT FENDER 65CC - BLACK | $ 36.59 |
|
| 1 | TCC60020WHT | FRONT FENDER 65CC - WHITE | $ 36.59 |
|
| 1A | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 1B | TCC60021 | SPACER FENDER FRONT | $ 4.43 |
|
| 2 | TCC60002W | NUMBER PLATE FRONT- WHITE | $ 19.45 |
|
| 2 | TCC60002B | NUMBER PLATE FRONT- BLACK | $ 19.45 |
|
| 2 | TCC60002 | NUMBER PLATE FRONT - YELLOW | $ 19.45 |
|
| 2A | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 3 | TCC60023FXX | SHROUD RIGHT - FXX YELLOW CX65/KING 2010-2020 | $ 25.46 |
|
| 3A | HCSP0004 | SCREW - PLASCREW | $ 1.09 |
|
| 4 | TCC60022FXX | SHROUD LEFT - FXX YELLOW CX65/KING 2010 - 2020 | $ 25.46 |
|
| 4A | TCC60017 | WASHER - 5MM BODY PANEL | $ 4.32 |
|
| 4B | HCBC0516 | M5 x 0.8 x 16 - SHCS - DIN 912, ISO 4762, CL12.9 | $ 1.09 |
|
| 4C | HCCN0000 | 5MM EXTRUDED ``U`` NUT | $ 2.09 |
|
| 4D | HCCN0000 | 5MM EXTRUDED ``U`` NUT | $ 2.09 |
|
| 5 | TCC60024C | FUEL TANK - CX65/KING - CLEAR/NATURAL - 2010-2020 | $ 165.67 |
|
| 5A | HCBC0503 | R/B HCBC0530 - M5 X 30 SHCS ZINC | $ 1.09 |
|
| 5B | TCC60027 | BUSHING TANK MOUNT - 5MM | $ 7.65 |
|
| 5C | TCC60029 | SPACER - SEAT MOUNT | $ 14.33 |
|
| 5D | HCFH0620 | M6 X 20 FLAT HEAD W ZINC | $ 1.09 |
|
| 5E | TCMU0151 | PETCOCK - FUEL - NO RESERVE | $ 20.01 |
|
| 6 | TCHA0002 | CAP - FUEL TANK- 65/KING/JR/P3 | $ 22.12 |
|
| 6A | TCHA0003 | HOSE FUEL TANK CAP - 65/KING/JR/P3 | $ 2.76 |
|
| 7 | TAC60002 | SEAT ASSEMBLY 2010 -2021 CX65 | $ 143.42 |
|
| 7A | TCC60028 | SEAT COVER CX65 2010 - 2021 | $ 63.29 |
|
| 7B | HCBC0625 | M6 X 25 SHCS ZINC | $ 1.09 |
|
| 7C | TCC60018 | SEAT MOUNT SPACER REAR 65/50 | $ 13.33 |
|
| 8 | TCC60005WHT | NUMBER PLATES SIDE (SET) - CX65 - WHITE | $ 41.15 |
|
| 8 | TCC60005BLK | NUMBER PLATES SIDE (SET) - CX65 - BLACK | $ 41.15 |
|
| 8 | TCC60005 | NUMBER PLATES SIDE (SET) - CX65 - YELLOW | $ 41.15 |
|
| 8A | HCBC0516 | M5 x 0.8 x 16 - SHCS - DIN 912, ISO 4762, CL12.9 | $ 1.09 |
|
| 8B | HCBF0630 | M6 X 30 FLANGE HD HEX 8MM ZINC | $ 1.09 |
|
| 8C | TCC60017 | WASHER - 5MM BODY PANEL | $ 4.32 |
|
| 8D | TCC60016 | WASHER - 6MM BODY PANEL | $ 3.87 |
|
| 9 | TCC60007FXX | FENDER REAR - FXX YELLOW CX65 2010 - 2021 | $ 32.8 |
|
| 9 | TCC60007BLK | FENDER REAR - BLACK CX65 | $ 32.8 |
|
| 9 | TCC60007WHT | FENDER REAR - WHITE CX65 | $ 32.8 |
|
| 9A | HCSP0004 | SCREW - PLASCREW | $ 1.09 |
|
| 9B | HCBC0516 | M5 x 0.8 x 16 - SHCS - DIN 912, ISO 4762, CL12.9 | $ 1.09 |
|
| 9C | HCWP0002 | WASHER ID5MM THICK | $ 0.31 |
|
