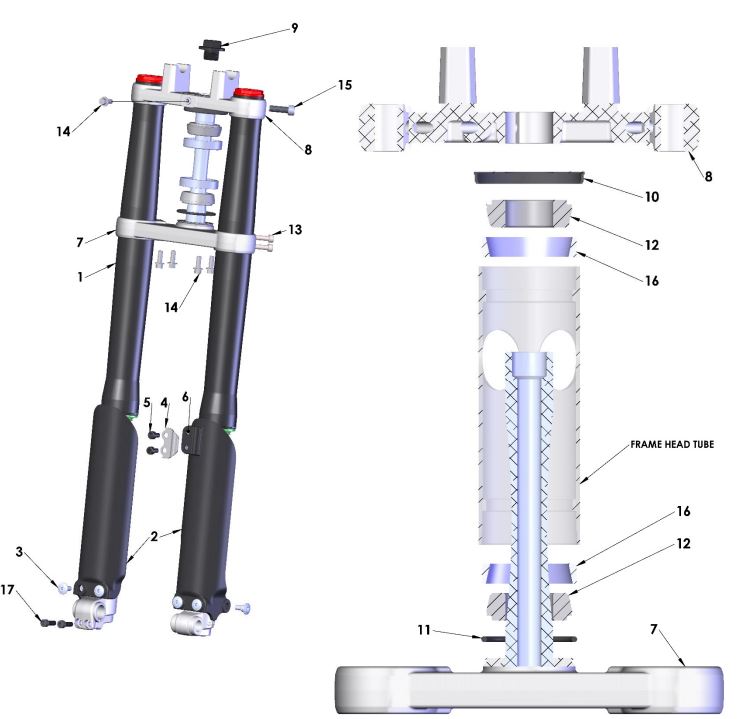

| Ref | Part Number | Description | Retail | |
|---|
| 1 | KACJ2018 | FORK SET COMPLETE - JR - HOLLOW AXLE 32MM | $ 984.25 |
|
| 2 | KCMU0035 | GUARD - FORK - SET 50CC - 2021 - (NO HARDWARE) - BLACK | $ 29.91 |
|
| 3 | HCSP0610 | BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR | $ 3.2 |
|
| 4 | KCMU0036 | CLAMP BLOCK - BRAKE CABLE - FORK GUARD 50CC - BLACK | $ 5.43 |
|
| 5 | HCSP0004 | SCREW - PLASCREW | $ 1.09 |
|
| 6 | HCBC0806 | R/B HCBC0830 - M8 X 30 SHCS ZINC | $ 1.09 |
|
| 7 | FAMU0020 | TRIPLE CLAMP BOTTOM ASM - 32MM - 2021 - CURRENT | $ 205.73 |
|
| 8 | FCMU0071 | TRIPLE CLAMP - TOP - 2019 | $ 143.42 |
|
| 9 | FCMU0074 | BOLT - STEERING STEM - ALUMINUM - 2019 | $ 32.14 |
|
| 10 | FCMU0079 | DUST SEAL - STEERING HEAD - SMALL ID | $ 9.88 |
|
| 11 | FCMU0044 | O-RING - 51 X 45 X 3 - STEERING HEAD | $ 2.09 |
|
| 12 | FCMU0004 | BEARING - STEERING TAPERED | $ 16.56 |
|
| 13 | HCBC0625 | M6 X 25 SHCS ZINC | $ 1.09 |
|
| 14 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 15 | HCBC0525 | M5 x 0.8 x 25 - SHCS - DIN 912, ISO 4762, CL. 12.9 - ZINC | $ 1.09 |
|
| 16 | FCMU0011 | RACE FOR STEERING HEAD | $ 8.77 |
|
| 17 | HCBC0602 | R/B HCBC0620 - M6 X 20 SHCS ZINC | $ 1.09 |
|
| ACCESSORY 1 | FKMU0008 | KIT - STEERING STEM SEALS AND BEARINGS | $ 54.39 |
|
| TOOL 1 | MCMUTL44 | TOOL - STEERING STEM BEARING AND SEAL INSTALLER AS | $ 72.2 |
|
