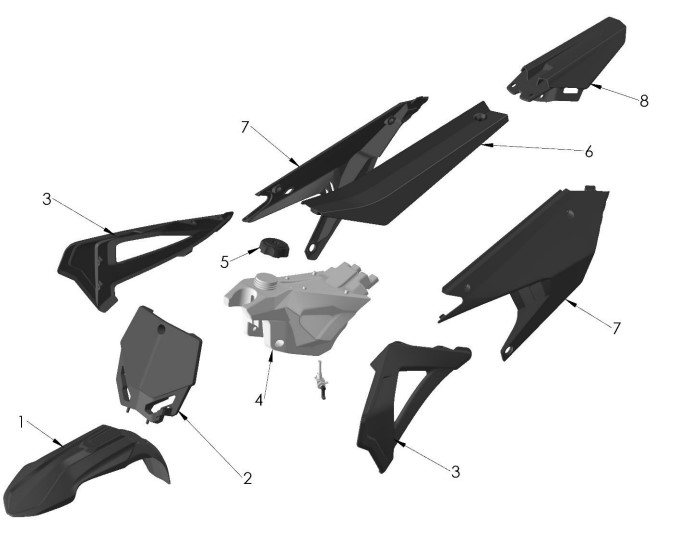

| Ref | Part Number | Description | Retail | |
|---|
| 1A | HCSP0610BLK | BOLT - SHOULDER - 6MM ALUMINUM - BLACK | $ 3.2 |
|
| 1 | TCC60020BLK | FRONT FENDER 65CC - BLACK | $ 36.59 |
|
| 2 | TCMU0041B | | $ |
|
| 2A | HCSP0610BLK | BOLT - SHOULDER - 6MM ALUMINUM - BLACK | $ 3.2 |
|
| 3 | TCMU0043BLK | SHROUD SET - LEFT & RIGHT - BLACK | $ 47.72 |
|
| 3A | HCSP0004 | SCREW - PLASCREW | $ 1.09 |
|
| 4A | HCFH0675 | M6 X 75 FLAT HEAD W ZINC | $ 1.09 |
|
| 4B | TCMU0047 | BUSHING-MOUNTING - FLAT HEAD FASTENER | $ 7.65 |
|
| 4C | TCMU0017 | BUSHING - TANK MOUNT - SQUARE THREADED NUT | $ 9.88 |
|
| 4D | TCC60029 | SPACER - SEAT MOUNT | $ 14.33 |
|
| 4E | HCFH0620 | M6 X 20 FLAT HEAD W ZINC | $ 1.09 |
|
| 4F | TCMU0151 | PETCOCK - FUEL - NO RESERVE | $ 20.01 |
|
| 4 | TCMU0048 | TANK - BLACK X LINK - FW/65 | $ 186.88 |
|
| 5 | TCHA0002 | CAP - FUEL TANK- 65/KING/JR/P3 | $ 22.12 |
|
| 5A | TCHA0003 | HOSE FUEL TANK CAP - 65/KING/JR/P3 | $ 2.76 |
|
| 6 | TAC60003 | R/B TAC62024 - SEAT ASSEMBLY - CX65 -2022-2023 | $ 143.48 |
|
| 6A | TCC60040 | SEAT COVER - CX65 | $ 66.68 |
|
| 6B | HCHF0650 | | $ |
|
| 6C | TCMU0046 | SEAT WASHER | $ 3.88 |
|
| 7 | TCC60039BLK | NUMBER PLATE SET - SIDE - CX65 - 2022 - BLACK | $ 41.08 |
|
| 7A | HCBC0502 | R/B HCBC0520 - M5 x 0.8 - 20 - SHCS - DIN 912 - ISO 4762, | $ 1.09 |
|
| 7B | HCSP0701 | 7MM TORX FLAT HEAD | $ 2.76 |
|
| 7C | TCC60017 | WASHER - 5MM BODY PANEL | $ 4.32 |
|
| 7D | FCMU109 | | $ |
|
| 8 | TCMU0045BLK | R/B TCMU0055BLK - FENDER - REAR - 2021 KG & 65 - BLACK | $ 33.25 |
|
| 8A | HCSP0610BLK | BOLT - SHOULDER - 6MM ALUMINUM - BLACK | $ 3.2 |
|
| 8B | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $ 2.2 |
|
