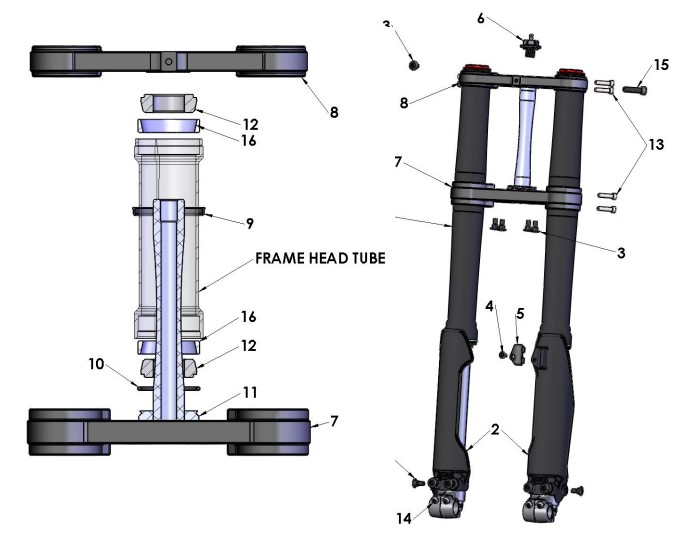

| Ref | Part Number | Description | Retail | |
|---|
| 1 | KAC62013 | FORK SET COMPLETE CX65 37MM | $ 834.42 |
|
| 2 | KCC60071 | GUARD - FORK - SET CX65 | $ 29.91 |
|
| 3 | HCSP0610BLK | BOLT - SHOULDER - 6MM ALUMINUM - BLACK | $ 3.2 |
|
| 4 | HCSP0004 | SCREW - PLASCREW | $ 1.09 |
|
| 5 | KCMU0036 | CLAMP BLOCK - BRAKE CABLE - FORK GUARD 50CC - BLACK | $ 5.43 |
|
| 6 | FCMU0111 | BOLT - STEERING STEM - SMALL DIAMETER - 65 | $ 32.18 |
|
| 7 | FAC60028BLK | TRIPLE CLAMP BOTTOM ASSY - BLACK - CX65 2022 | $ 211.3 |
|
| 8 | FCC60084BLK | TRIPLE CLAMP TOP - 22 mm OFFSET | $ 154.54 |
|
| 9 | FCMU0079 | DUST SEAL - STEERING HEAD - SMALL ID | $ 9.88 |
|
| 10 | FCMU0044 | O-RING - 51 X 45 X 3 - STEERING HEAD | $ 2.09 |
|
| 11 | FCC60081 | SPACER - ORING HOLDER - BOTTOM TRIP CLAMP - CX65 | $ 25.46 |
|
| 12 | FCMU0004 | BEARING - STEERING TAPERED | $ 16.56 |
|
| 13 | HCBC0625 | M6 X 25 SHCS ZINC | $ 1.09 |
|
| 14 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 15 | HCBC0806 | R/B HCBC0830 - M8 X 30 SHCS ZINC | $ 1.09 |
|
| 16 | FCMU0011 | RACE FOR STEERING HEAD | $ 8.77 |
|
| KIT | FKMU0006 | KIT - STEERING STEM SEALS AND SPACERS 2016-2018 | $ 99.02 |
|
