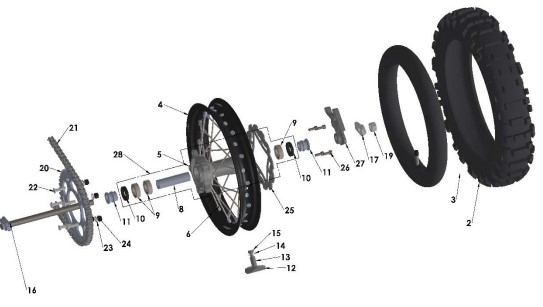

| Ref | Part Number | Description | Retail | |
|---|
| 1 | WAC6R018 | R/B WAC6R018P - WHEEL ASSEMBLY - REAR - CX65 2018 | $ 521.77 |
|
| 2 | WCC6R012D32 | R/B WCC6R012D33 - TIRE - REAR - 80/100-12 - DUNLOP MX3S | $ 47.27 |
|
| 3 | WCDCTU12 | TUBE - 275-80/100-12 REAR | $ 15.88 |
|
| 4 | WCMU1218BLK | 12IN RIM - BLACK - 2018 THRU NEW (28 spoke) | $ 110.03 |
|
| 5 | WCC60134 | R/B WAC6R118 - REAR HUB - 28 SPOKE - 2018 - CURRENT | $ 377.1 |
|
| 6 | WKC6R018 | REAR SPOKE W/ NIPPLE (1pc) - 28 PC WHEEL - 2018 THRU 2022 | $ 3.56 |
|
| 8 | WCC60037 | SPACER - REAR WHEEL BEARING | $ 22.12 |
|
| 9 | WCMU0120 | BEARING - WHEEL-SEALED HD | $ 20.01 |
|
| 10 | WCC60035 | SEAL - REAR HUB - 23 x 35 x 7 | $ 14.45 |
|
| 11 | WCC60036 | SPACER - L&R REAR WHEEL | $ 10.99 |
|
| 12 | WCMU0110 | R/B WCMU0019 - RIM LOCK NARROW 1.4/1.6 | $ 12.22 |
|
| 13 | WCDC0008 | RIM LOCK SPACER | $ 4.32 |
|
| 14 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 15 | HCNS0801 | 8MM NUT | $ 0.64 |
|
| 16 | WCC60010 | AXLE - REAR TITANIUM - CX65 | $ 143.42 |
|
| 17 | GCC60010 | CHAIN ADJUST BLOCK OFFSET | $ 22.12 |
|
| 19 | WCC60011 | NUT - REAR AXLE - ALUMINUM | $ 27.24 |
|
| 20 | PCC61837 | SPROCKET - 37T ALUM - CX65 2018 THRU NEW | $ 64.88 |
|
| 21 | PCMU0116 | CHAIN 420H 116L CX65 14/45 | $ 25.46 |
|
| 22 | HCSP0701 | 7MM TORX FLAT HEAD | $ 2.76 |
|
| 23 | HCWF0701 | 7MM FLAT WASHER | $ 0.53 |
|
| 24 | HCNL0701 | M7 LOCKNUT | $ 1.09 |
|
| 25 | BCC60004 | BRAKE ROTOR REAR | $ 74.42 |
|
| 26 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 27 | BCC60093 | CARRIER - BRAKE CALIPER - CX65 - CARD 2 PISTON | $ 76.65 |
|
| 28 | WAC6R118 | HUB ASSEMBLY - REAR - CX65 2018 - 28 SPOKE | $ 377.1 |
|
| TOOL | MCMUTL17 | TOOL - SPOKE NIPPLE WRENCH - ALUMINUM SPLINED | $ 15.44 |
|
