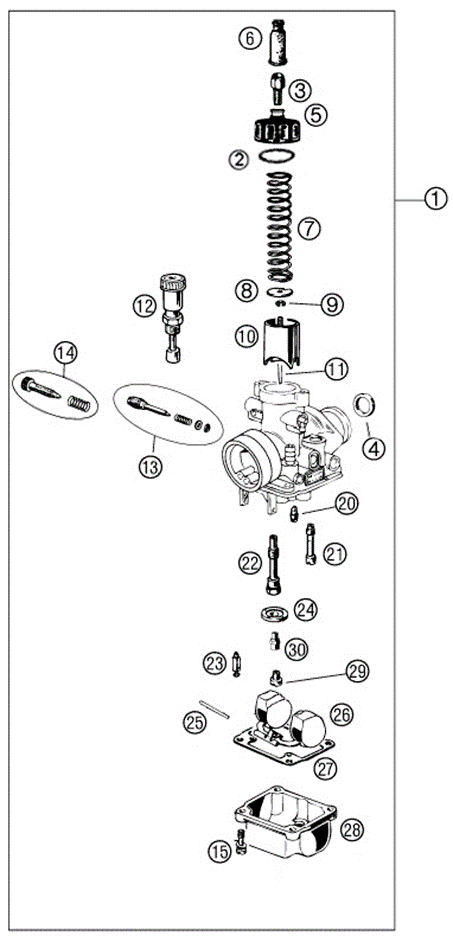

| Ref | Part Number | Description | Retail | |
|---|
| 1 | RACJ5014 | R/B RACJ0014 - CARBURETOR - 14MM - DEEP WELL 50 SLIDE | $ 181.88 |
|
| 2 | RCMU0307 | GASKET - CARB - TOP - DELLORTO - PHBG | $ 4.48 |
|
| 3 | RCMU0003 | CARB - CABLE ADJUSTER DELLORTO STRAIGHT | $ 3.2 |
|
| 4 | RCCM0314 | RESTRICTOR - 14MM CARB - CURRENT | $ 29.91 |
|
| 5 | RCMU0046 | TOP - CARB - THREAD ON - DELL\'ORTO PHBG | $ 14.88 |
|
| 6 | RCMU0102 | CARB - RUBBER CABLE CAP SEAL-#8 - DELLORTO | $ 3.87 |
|
| 7 | RCMU0004L | SPRING - SLIDE - DELLORTO - LIGHT | $ 9.88 |
|
| 8 | RCMU0028 | CARB - NEEDLE RETAINER PLATE #13 | $ 6.54 |
|
| 9 | RCMU0007 | CARB - NEEDLE CLIP #14 | $ 2.2 |
|
| 10 | RCMU0350 | SLIDE #50 - CUT - CARB - DELLORTO | $ 44.38 |
|
| 11 | RCMU0601 | NEEDLE - W7 - DELLORTO CARB | $ 14.33 |
|
| 12 | RCMU0204 | CARB - CHOKE ASSY - DELLORTO | $ 16.56 |
|
| 12 A | RCMU0209 | O-RING - CHOKE ASSEMBLY - DELLORTO | $ 1.09 |
|
| 13 | RCMU0009 | CARB - FUEL MIXTURE SCREW #16 | $ 14.33 |
|
| 14 | RCMU0011 | CARB - IDLE ADJUSTMENT SCREW #18 | $ 5.43 |
|
| 15 | RCMU0201 | CARB - FLOAT BOWL SCREW - DELLORTO | $ 1.98 |
|
| 20 | SEE PILOT JET BELOW | | $ |
|
| 22 | RCMU0262 | ATOMIZER AU262 FOR DELL\'ORTO PHBG STANDARD | $ 18.78 |
|
| 23 | RCMU0107 | CARB - FLOAT NEEDLE - DELLORTO | $ 7.21 |
|
| 24 | RCMU0012 | DIFFUSER - DELLORTO PHBG STANDARD 1.6 | $ 5.43 |
|
| 25 | RCMU0016 | CARB - FLOAT RETAINER PIN #22 | $ 2.2 |
|
| 26 | RCMU0301 | CARB - FLOAT #7 | $ 25.46 |
|
| 27 | RCMU0103 | CARB - FLOAT BOWL GASKET - DELLORTO | $ 5.43 |
|
| 28 | RCMU0306 | BOWL - CARB FLOAT - DEEP WELL - DELLORTO PHBG | $ 28.8 |
|
| 29 | SEE MAIN JET BELOW | | $ |
|
| 30 | RCMU0044 | EXTENSION - MAIN JET - DELLORTO PHBG | $ 8.77 |
|
| ACCESSORY 1 | RCMU0330 | SLIDE #30 - CUT - CARB - DELLORTO | $ 44.38 |
|
| ACCESSORY 2 | RCMU0340 | SLIDE #40 - CUT - CARB - DELLORTO | $ 44.38 |
|
| ACCESSORY 3 | RCMU0360 | SLIDE #60 - CUT - CARB - DELLORTO | $ 44.38 |
|
| ACCESSORY 4 | RCMU0026 | NEEDLE - W4 - DELLORTO CARB | $ 13.67 |
|
| ACCESSORY 5 | RCMU0602 | NEEDLE - W16 - DELLORTO CARB | $ 14.33 |
|
| Main Jet 0 | RCMU0097 | MAIN JET - 97 - DELLORTO | $ 6.32 |
|
| Main Jet 1 | RCMU0088 | MAIN JET - 88 - DELLORTO | $ 6.32 |
|
| Main Jet 1 | RCMU0098 | MAIN JET - 98 - DELLORTO | $ 6.32 |
|
| Main Jet 2 | RCMU0089 | MAIN JET - 89 - DELLORTO | $ 6.32 |
|
| Main Jet 3 | RCMU0090 | MAIN JET - 90 - DELLORTO | $ 6.32 |
|
| Main Jet 4 | RCMU0091 | MAIN JET - 91 - DELLORTO | $ 6.32 |
|
| Main Jet 5 | RCMU0092 | MAIN JET - 92 - DELLORTO | $ 6.32 |
|
| Main Jet 6 | RCMU0093 | MAIN JET - 93 - DELLORTO | $ 6.32 |
|
| Main Jet 7 | RCMU0094 | MAIN JET - 94 - DELLORTO | $ 6.32 |
|
| Main Jet 8 | RCMU0095 | MAIN JET - 95 - DELLORTO | $ 6.32 |
|
| Main Jet 9 | RCMU0096 | MAIN JET - 96 - DELLORTO | $ 6.32 |
|
| NOT SHOWN 1 | RCCM1301 | CARB - VELOCITY STACK-50CC | $ 21.01 |
|
| NOT SHOWN 2 | RCCS0006 | FUEL LINE KING 50 2010 AND NEWER | $ 2.2 |
|
| NOT SHOWN 3 | MCMUCL04 | HOSE CLAMP 8MM | $ 2.2 |
|
| NOT SHOWN 4 | RCMU0020 | ELBOW - CARB VENT | $ 4.32 |
|
| NOT SHOWN 5 | RAMU0001 | CANNULUS - Y STYLE CARB VENT SYSTEM - DELLORTO | $ 16.56 |
|
| Pilot Jet 1 | RCMU0048 | PILOT JET - 48 - DELLORTO | $ 6.32 |
|
| Pilot Jet 2 | RCMU0050 | PILOT JET - 50 - DELLORTO | $ 6.32 |
|
| Pilot Jet 3 | RCMU0052 | PILOT JET - 52 - DELLORTO | $ 6.32 |
|
| Pilot Jet 4 | RCMU0055 | PILOT JET - 55 - DELLORTO | $ 6.32 |
|
| Pilot Jet 5 | RCMU0060 | PILOT JET - 60 - DELLORTO | $ 16.88 |
|
| Pilot Jet 6 | RCMU0065 | PILOT JET - 65 - DELLORTO | $ 6.32 |
|
