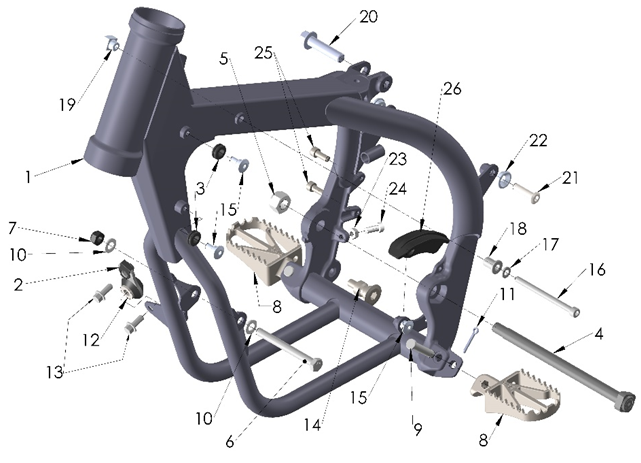

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FACS2021 | R/B FACS2022 - FRAME - 2021 CX50 SR KING VENOM | $ 664.21 |
|
| 2 | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $ 2.2 |
|
| 3 | MCMUGR12 | GROMMET - RADIATOR MOUNT - 50SR/65 | $ 4.98 |
|
| 4 | GCMU0022 | BOLT - STEEL - SWINGARM PIVOT - 2021 CX50 SHORTER | $ 32.14 |
|
| 5 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| 6 | HCBH0880 | M8 X 80 HH ZINC | $ 6.66 |
|
| 7 | HCNL0801 | R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL | $ 1.09 |
|
| 8 | TCMU0139 | ULTRAWIDE FOOTPEG KIT 50cc / 65cc | $ 77.76 |
|
| 9 | FCMU0031 | CLEVIS PIN - FOOTPEG | $ 4.32 |
|
| 10 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 11 | HCCP0008 | COTTERPIN - 1/8` X 3/4` 316 STAINLESS | $ 0.53 |
|
| 12 | XCMU0033 | ISOLATION MOUNT | $ 18.34 |
|
| 13 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 14 | BCMU0027 | PIVOT BOLT - ALUM BRAKE PEDAL | $ 22.12 |
|
| 15 | HCSP0610 | BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR | $ 3.2 |
|
| 16 | HCFH0675 | M6 X 75 FLAT HEAD W ZINC | $ 1.09 |
|
| 18 | TCMU0047 | BUSHING-MOUNTING - FLAT HEAD FASTENER | $ 7.65 |
|
| 19 | TCMU0017 | BUSHING - TANK MOUNT - SQUARE THREADED NUT | $ 9.88 |
|
| 20 | HCBF1040 | R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER | $ 7.65 |
|
| 21 | HCSP0701 | 7MM TORX FLAT HEAD | $ 2.76 |
|
| 22 | FCMU0109 | COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021 | $ 10.55 |
|
| 23 | HCNL0601 | M6 LOCKNUT | $ 1.09 |
|
| 24 | HCBC0602 | R/B HCBC0620 - M6 X 20 SHCS ZINC | $ 1.09 |
|
| 25 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 26 | TCMU0044 | CHAIN SLIDE - LOWER - 65/KING 2021 | $ 16.56 |
|
| ACCESSORY 1 | TCMU0106 | SPRING - FOOTPEG STD KING/JR PEG | $ 5.43 |
|
