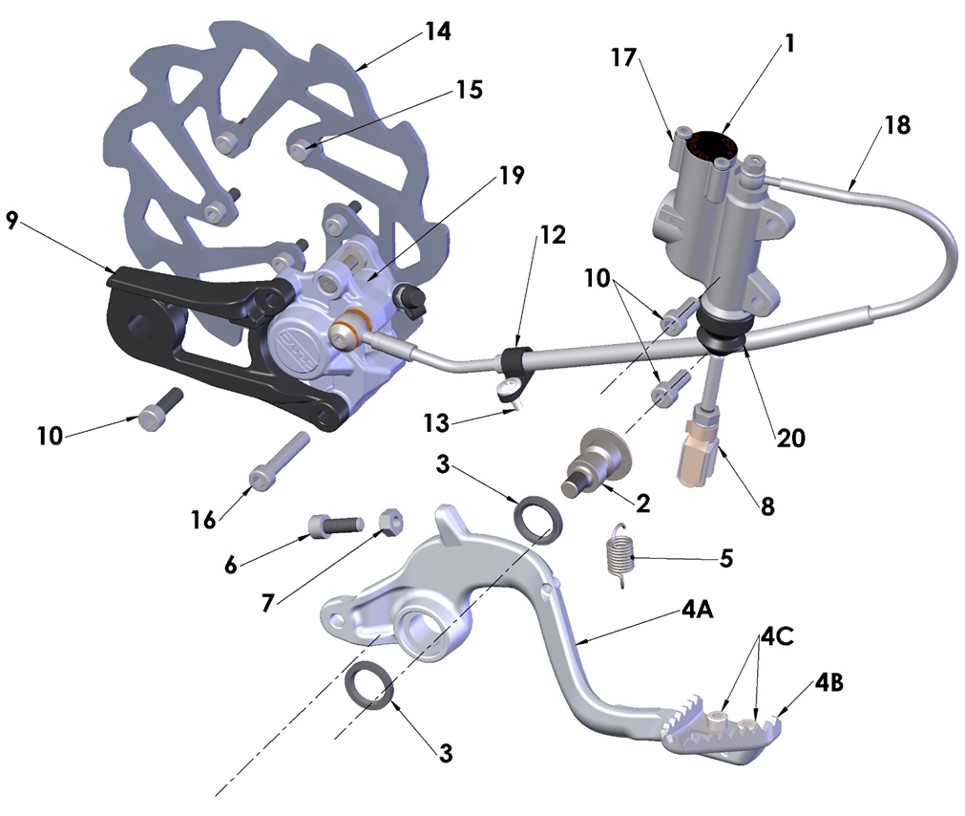

| Ref | Part Number | Description | Retail | |
|---|
| 1 | BAMU0003 | SEE NOTES BELOW - BRAKE ASSEMBLY - KING REAR - CARD 2 PISTON | $ 294.88 |
|
| 2 | BCMU0027 | PIVOT BOLT - ALUM BRAKE PEDAL | $ 22.12 |
|
| 3 | BCMU0501 | SEAL - BRAKE PEDAL | $ 3.2 |
|
| 4 A | BCMU0062 | PEDAL ASSEMBLY - REAR BRAKE - 2021 KG & 65 | $ 83.32 |
|
| 4 B | BCMU0023T | TOE PIECE - REAR BRAKE PEDAL | $ 18.9 |
|
| 4 C | HCBC0501 | R/B HCBC0512 - M5 X 12 SHCS ZINC | $ 1.09 |
|
| 5 | BCMUSP01 | SPRING-BRAKE PEDAL | $ 5.43 |
|
| 6 | HCBC0625 | M6 X 25 SHCS ZINC | $ 1.09 |
|
| 7 | HCNS0601 | M6 NUT DIN 934 CLASS 8 - ZINC CLEAR | $ 0.53 |
|
| 8 | BAC60004 | BRAKE PUSH ROD ASSEMBLY WITH CLEVIS | $ 17.88 |
|
| 9 | BCMU0045BLK | BRAKE CARRIER - 10IN REAR - CARD 2 PISTON - BLACK | $ 76.65 |
|
| 10 | HCBC0602 | R/B HCBC0620 - M6 X 20 SHCS ZINC | $ 1.09 |
|
| 12 | HCCC0000 | CABLE CLAMP-3/8 INCH | $ 1.09 |
|
| 13 | HCPP0832 | #8X1/2 SELF TAPPING SCREW | $ 1.09 |
|
| 14 | BCMU0222 | ROTOR - BRAKE - FRONT/REAR - 50CC CARD | $ 65.52 |
|
| 15 | HCBC0514 | M5 X 14 SHCS ZINC | $ 1.09 |
|
| 16 | HCBF0635 | M6 X 35 FLANGE HD HEX 8MM ZINC 8.8 | $ 1.09 |
|
| 17 | BAC60015 | R/B BAMU0013 - MASTER CYLINDER - REAR BRAKE - FORMULA | $ 154.54 |
|
| 18 | BCMU0047 | R/B BCMU0047B - REAR BRAKE - UNBENT - CARD KING | $ 54.39 |
|
| 19 | BAMU0010A | CALIPER ASSY - 50 REAR - CARD 2 PISTON - ALUMINUM ORG | $ 143.42 |
|
| 20 | BCMU0022 | BOOT - REAR BRAKE - MASTER CYLINDER BOTTOM | $ 14.33 |
|
| ACCESSORY 1 | BKMU0009 | PAD KIT - ORGANIC 505 - CARD 2 PISTON - PADS BOLT AND CLIP | $ 32.8 |
|
| ACCESSORY 10 | BKC60009 | R/B BAMU0013- REBUILD KIT - REAR - MASTER CYLINDER - 12.7MM | $ 36.7 |
|
| ACCESSORY 11 | BKMU0011 | REBUILD KIT - REAR BRAKE MASTER - CARD 11.0 | $ 36.7 |
|
| ACCESSORY 12 | BKMU0003 | TOOL - BLEEDING KIT - FORMULA - CARD - AJP | $ 43.26 |
|
| ACCESSORY 2 | BCMU0038 | SPRING - BRAKE PAD SEPARATING - CARD 2 PISTON | $ 9.88 |
|
| ACCESSORY 3 | BKMU0006A | R/B BKMU0006-KIT - PISTON AND SEALS - CARD 2 PISTON - ALUM | $ 32.14 |
|
| ACCESSORY 4 | BKMU0008 | BLEED SCREW W / CAP - CARD 2 PISTON | $ 13.67 |
|
| ACCESSORY 5 | BCC60034 | CAP - BRAKE/CLUTCH BLEED SCREW | $ 5.08 |
|
| ACCESSORY 6 | BCKG0016 | BRAKE-MSTR CYL RES. & CAP KIT-FORMULA | $ 22.12 |
|
| ACCESSORY 7 | BKMU0007 | KIT - BANJO BOLT AND WASHERS - CARD 2 PISTON | $ 13.22 |
|
| ACCESSORY 8 | BCMU0014 | SHIM BRAKE CALIPER MOUNT 12 x 0.2 x 6 | $ 1.09 |
|
| ACCESSORY 9 | BCKG0015 | REBUILD KIT - MSTR CYL 11 - FORMULA REAR | $ 36.59 |
|
