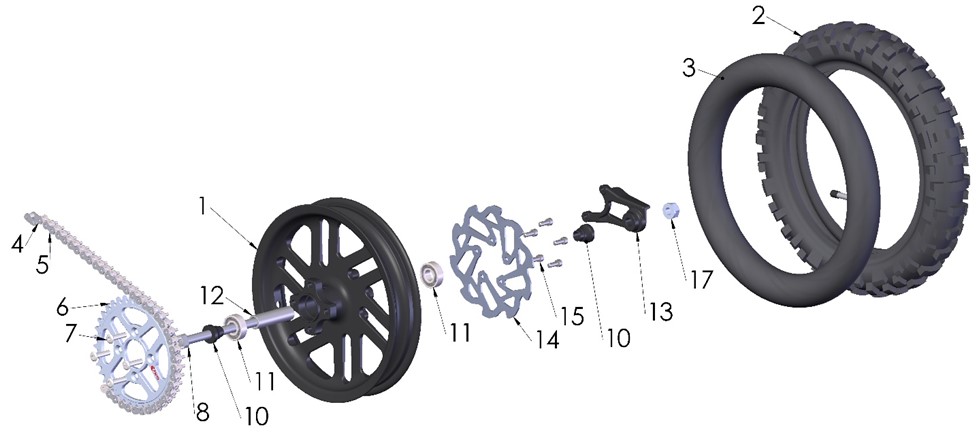

| Ref | Part Number | Description | Retail | |
|---|
| 1 | WAMUR021BLK | WHEEL ASSEMBLY- REAR - BLK | $ 360.41 |
|
| 2 | WCMU1075D32 | R/B WCMU1075D33 - TIRE - REAR - 70/100-10 - DUNLOP MX3S | $ 42.27 |
|
| 3 | WCMUTU10 | TUBE - 250/275 - 10 INCH | $ 9.43 |
|
| 4 | PCMU0001 | CHAIN - MASTER LINK | $ 2.2 |
|
| 5 | PCMU0102 | R/B PCMU0106 - CHAIN - CX50 - 102L NEEDS CUT FOR KING/JR/P3 | $ 24.35 |
|
| 6 | PCC50238BLK | SPROCKET 38T - 415 - BLACK ANODIZE - PDM BOLTS | $ 69.88 |
|
| 6 A | PCC502XX | | $ |
|
| 7 | HCSP0701 | 7MM TORX FLAT HEAD | $ 2.76 |
|
| 7 A | HCWF0701 | 7MM FLAT WASHER | $ 0.53 |
|
| 7 B | HCNL0701 | M7 LOCKNUT | $ 1.09 |
|
| 8 | GCMU0020 | BOLT - TITANIUM - SWINGARM PIVOT and AXLE - CX50 | $ 143.42 |
|
| 10 | WCMU0101BLK | SPACER WHEEL FR & RR LH - BLACK | $ 14.33 |
|
| 11 | WCMU0120 | BEARING - WHEEL-SEALED HD | $ 20.01 |
|
| 12 | WCMU0041 | SPACER - WHEEL BEARING - REAR 50CC - 2018 - CURRENT | $ 14.33 |
|
| 13 | BCMU0045 | BRAKE CARRIER - 10IN REAR - CARD 2 PISTON | $ 76.65 |
|
| 14 | BCMU0222 | ROTOR - BRAKE - FRONT/REAR - 50CC CARD | $ 65.52 |
|
| 15 | HCBC0514 | M5 X 14 SHCS ZINC | $ 1.09 |
|
| 17 | WCMU0038 | NUT - 12MM ACORN - ALUM | $ 20.79 |
|
| ACCESSORY 1 | HKMU0002 | BOLT KIT - REAR SPROCKET - FLAT HEAD- CX50 | $ 16.67 |
|
| X | DENOTES TEETH (34-35) | | $ |
|
