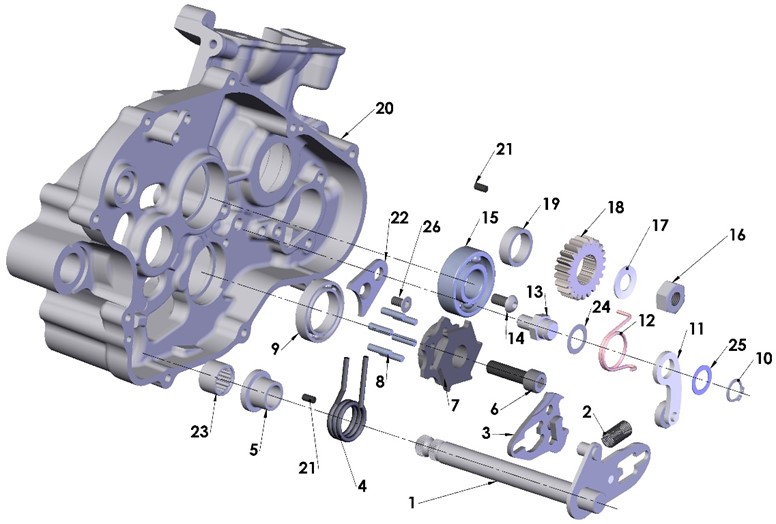

| Ref | Part Number | Description | Retail | |
|---|
| 1 | EAC60017 | SHIFTER SHAFT W/ PIVOT PLATE - 2015 - 2023 | $ 98.24 |
|
| 2 | ECDC0055 | SHIFTER SPRING | $ 13.88 |
|
| 3 | EAC60018 | SHIFT SLIDING PLATE - 2015 & NEWER | $ 61.07 |
|
| 4 | ECC60124 | SPRING - SHIFT SHAFT CENTERING - 2015 - CURRENT | $ 15.44 |
|
| 5 | ECC60146 | SPACER SHIFT SHAFT SPRING CENTERING | $ 6.09 |
|
| 6 | HCBC0806 | R/B HCBC0830 - M8 X 30 SHCS ZINC | $ 1.09 |
|
| 7 | ECC60189 | CASSETTE - SHIFTING - 2015-CURRENT | $ 55.5 |
|
| 8 | ECDC0051 | DOWEL PIN 4X16.0 | $ 2.2 |
|
| 9 | ECDC0022 | BEARING - SHIFT DRUM | $ 22.12 |
|
| 10 | ECDC0035 | SNAP RING - EXT 12MM-GEAR RET | $ 2.2 |
|
| 11 | ECMU0545 | ASSY - SHIFT FOLLOWER ARM AND ROLLER | $ 27.68 |
|
| 12 | ECMU0546 | SPRING FOLLOWER ARM | $ 9.43 |
|
| 13 | ECC60096 | PIVOT - FOLLOWER ARM | $ 21.01 |
|
| 14 | HCBB1612 | M6 X 12 BUTTON HEAD BLACK OXIDE | $ 1.09 |
|
| 15 | ECMU0216 | R/B ECMU0016 - BEARING, PRIMARY CLUTCH SIDE | $ 17.67 |
|
| 16 | HCNS1001 | 10MM X 1.25 NUT | $ 1.09 |
|
| 17 | ECDC0030 | BELLVILLE - LOCK WASHER - 10MM | $ 3.2 |
|
| 18 | ECDC0073 | CRANK DRIVE GEAR | $ 32.14 |
|
| 19 | ECC60198 | SPACER - CRANK DRIVE GEAR - CX65 2015 | $ 10.99 |
|
| 20 | EKC62023 | ENGINE CASE SET - CX65 WITH BEARINGS AND SEALS | $ 758.88 |
|
| 21 | ECDC0053 | DOWEL PIN 4X8.0 | $ 3.32 |
|
| 22 | ECC60095 | R/B ECC60199 - RETAINER PLATE FOR SHIFT DRUM BEARING | $ 9.43 |
|
| 23 | ECMU0020 | BEARING TRANS. PRECISION NEEDLE | $ 16.56 |
|
| 24 | ECC60119 | SHIM WASHER 18 x 0.5 x 12 | $ 2.2 |
|
| 25 | ECC60152 | SHIM WASHER 18 x 0.2 x 12 | $ 2.2 |
|
| 26 | ECC60153 | SHIM WASHER 18 x 0.3 x 12 | $ 2.2 |
|
| 27 | HCFH0512 | M5 X 12 FLAT HEAD ZINC | $ 1.09 |
|
| NOT SHOWN | ECC60028 | BUSHING - ENGINE PIVOT - 12MM | $ 13.22 |
|
