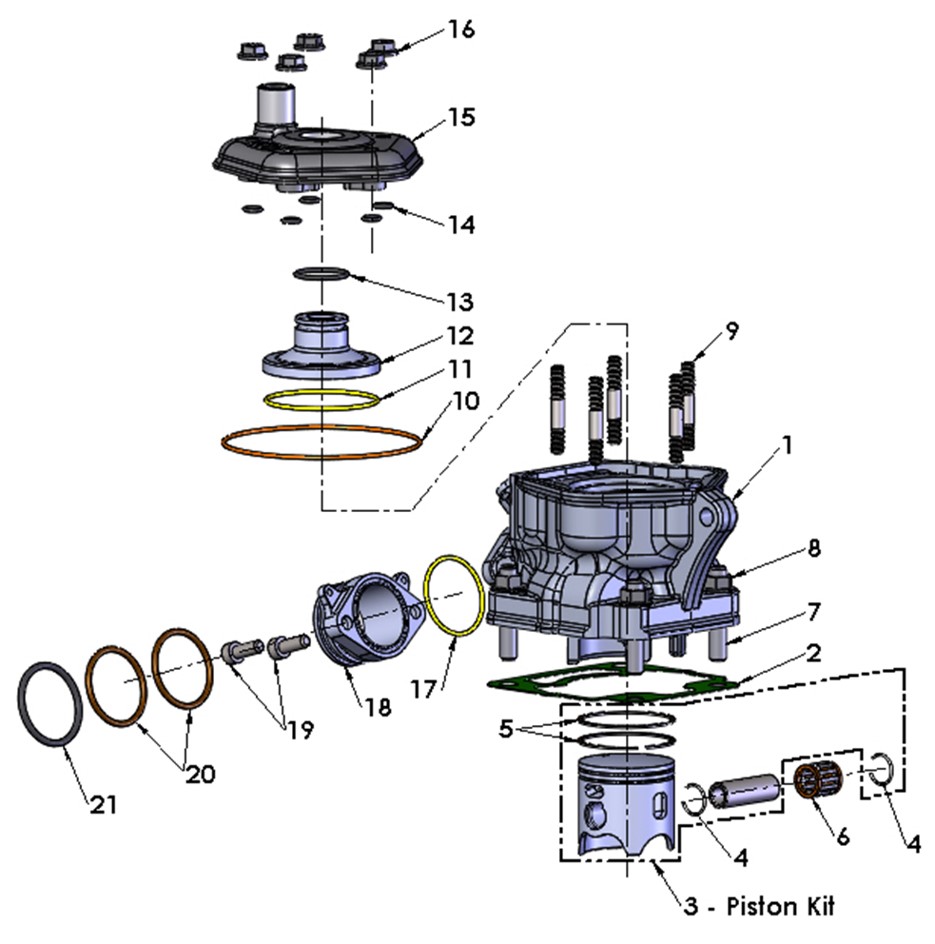

| Ref | Part Number | Description | Retail | |
|---|
| 1 | ECC60557 | CYLINDER KIT - CX65 - 2022 | $ 644.18 |
|
| 2 A | ZCC60302 | GASKET - 0.2MM - CYLINDER BASE - 65CC 2013 - 2023 | $ 12.11 |
|
| 2 B | ZCC60303 | GASKET - 0.3MM - CYLINDER BASE - 65CC 2013 - 2023 | $ 12.11 |
|
| 2 C | ZCC60304 | GASKET - 0.4MM - CYLINDER BASE - 65CC 2013 - 2023 | $ 12.11 |
|
| 2 D | ZCC60305 | GASKET - 0.5MM - CYLINDER BASE - 65CC 2013 - 2023 | $ 12.11 |
|
| 2 E | ZCC60306 | GASKET - 0.6MM - CYLINDER BASE - 65CC 2013 - 2023 | $ 12.11 |
|
| 2 F | ZCC60307 | 0.7MM GASKET | $ 12.11 |
|
| 2 G | ZCC60308 | GASKET - 0.8MM - CYLINDER BASE - 65CC 2013 - 2023 | $ 12.11 |
|
| 3 B | ECC60208WP | WRIST PIN - PISTON - CAST 44.5MM 65 | $ 18.88 |
|
| 3 | ECC60208A | PISTON KIT 65 44.5MM BORE SIZE A- NON BRIDGED | $ 110.03 |
|
| 4 | ECC60222 | CIRCLIP - PAIR - CAST PISTON - 44.5MM | $ 4.43 |
|
| 5 | ECC60221 | RINGS - FOR CAST PISTON - 44.5 | $ 32.14 |
|
| 6 | ECDC0061 | BEARING - WRISTPIN 65CC | $ 14.11 |
|
| 7 | ECC60109 | STUD - CYLINDER 8MM X 44.5MM | $ 7.21 |
|
| 8 | HCNF0801 | 8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS | $ 1.09 |
|
| 9 | ECC60107 | STUD - CYLINDER HEAD 6MM X 41MM | $ 5.43 |
|
| 10 | ZCC60009 | O-RING - CYL HEAD LARGE - 65CC & VENOM | $ 7.65 |
|
| 11 | ZCMUOR05 | O-RING - HEAD - MEDIUM 50CC | $ 8.88 |
|
| 12 | ECC60207 | CYLINDER HEAD INSERT - 2015 & LATER | $ 105.58 |
|
| 13 | ZCMUOR23 | ORING - HEAD INSERT - VITON | $ 4.98 |
|
| 14 | ZCMUOR03 | O-RING 6.07X1.78 SILICONE | $ 1.09 |
|
| 15 | ECC60149 | CYLINDER HEAD OUTER - 65CC & VENOM | $ 98.9 |
|
| 16 | HCNF0601 | 6MM FLANGE NUT-ZINC - CLASS 10 | $ 0.64 |
|
| 17 | ZCMUOR07 | O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP | $ 4.43 |
|
| 18 | ECMU0262 | FLANGE - EXHAUST CX50 VENOM & 65 2017-2025 | $ 49.94 |
|
| 19 | HCBC0612 | M6 X 12 SHCS ZINC | $ 1.09 |
|
| 20 | ZCMOTE11 | O-RING - EXHAUST FLANGE | $ 3.2 |
|
| 21 | ZCMUOR11 | O`RING - EXHAUST PIPE CUSHION - CX65 | $ 2.54 |
|
| ENGINE | EAC62022 | ENGINE - 2022 CX65 PV | $ 2920.88 |
|
| NOT SHOWN | ZKMUOR13 | ORING KIT - TOP END - CX65 2013 TO CURRENT & ALL VENOM | $ 16.11 |
|
