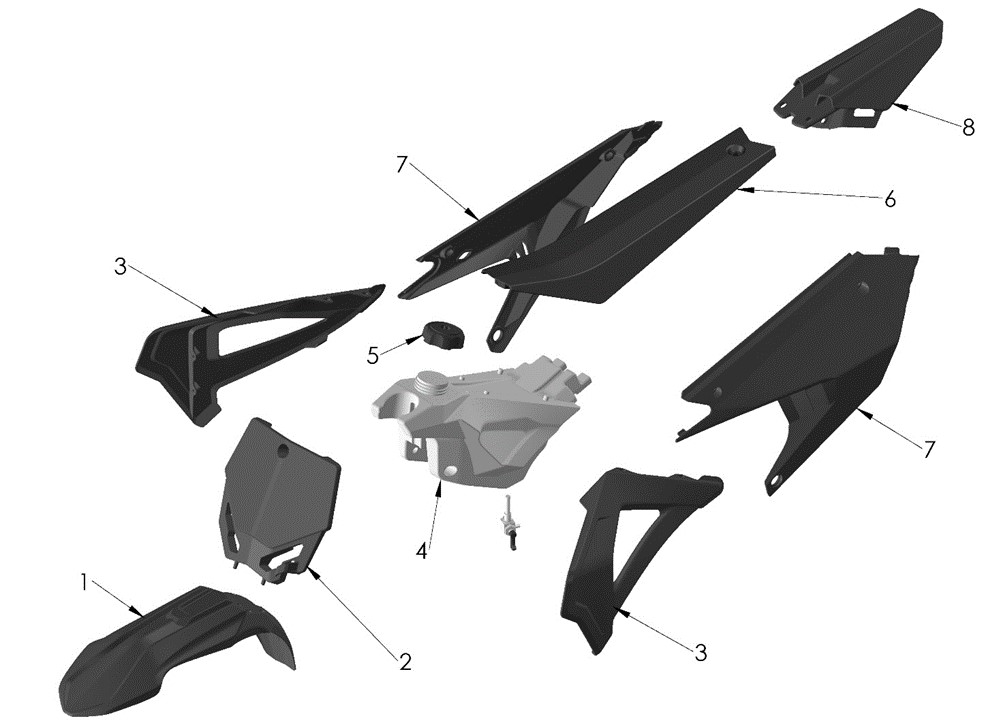

| Ref | Part Number | Description | Retail | |
|---|
| 1 A | TCCS0009FXX | FENDER - FRONT - 2021 AND NEWER - FXX | $ 34.36 |
|
| 1 D | HCSP0610BLK | BOLT - SHOULDER - 6MM ALUMINUM - BLACK | $ 3.2 |
|
| 1 B | TCCS0009BLK | FENDER - FRONT - 2021 AND NEWER - BLACK | $ 34.36 |
|
| 1 C | TCCS0009WHT | FENDER - FRONT - 2021 AND NEWER - WHITE | $ 34.36 |
|
| 2 D | HCSP0610BLK | BOLT - SHOULDER - 6MM ALUMINUM - BLACK | $ 3.2 |
|
| 2 A | TCMU0041BLK | NUMBER PLATE - FRONT - 2021 - BLACK | $ 22.79 |
|
| 2 B | TCMU0041WHT | NUMBER PLATE - FRONT - 2021 - WHITE | $ 20.56 |
|
| 2 C | TCMU0041GRY | NUMBER PLATE - FRONT - 2021 - GREY | $ 22.79 |
|
| 3 A | TCMU0043BLK | SHROUD SET - LEFT & RIGHT - BLACK | $ 47.72 |
|
| 3 B | TCMU0043FXX | SHROUD SET - LEFT & RIGHT - FXX | $ 47.72 |
|
| 3 C | TCMU0043WHT | SHROUD SET - LEFT & RIGHT - WHITE | $ 47.72 |
|
| 3 D | HCSP0004 | SCREW - PLASCREW | $ 1.09 |
|
| 4 | TCMU0042 | R/B TCMU0048 - FUEL TANK - BLACK- 2021 KING & 65 | $ 176.8 |
|
| 4 A | HCFH0675 | M6 X 75 FLAT HEAD W ZINC | $ 1.09 |
|
| 4 B | TCMU0047 | BUSHING-MOUNTING - FLAT HEAD FASTENER | $ 7.65 |
|
| 4 C | TCMU0017 | BUSHING - TANK MOUNT - SQUARE THREADED NUT | $ 9.88 |
|
| 4 D | TCC60029 | SPACER - SEAT MOUNT | $ 14.33 |
|
| 4 E | HCFH0620 | M6 X 20 FLAT HEAD W ZINC | $ 1.09 |
|
| 4 F | TCMU0151 | PETCOCK - FUEL - NO RESERVE | $ 20.01 |
|
| 5 | TCHA0002 | CAP - FUEL TANK- 65/KING/JR/P3 | $ 22.12 |
|
| 5 A | TCHA0003 | HOSE FUEL TANK CAP - 65/KING/JR/P3 | $ 2.76 |
|
| 6 | TAC60003 | R/B TAC62024 - SEAT ASSEMBLY - CX65 -2022-2023 | $ 143.48 |
|
| 6 A | TCC60040 | SEAT COVER - CX65 | $ 66.68 |
|
| 6 B | HCFH0650 | M6 X 50 FLAT HEAD W ZINC | $ 1.09 |
|
| 6 C | TCMU0046 | SEAT WASHER | $ 3.88 |
|
| 7 A | TCC60039WHT | NUMBER PLATE SET - SIDE - CX65 - 2022 - WHITE | $ 41.08 |
|
| 7 B | TCC60039BLK | NUMBER PLATE SET - SIDE - CX65 - 2022 - BLACK | $ 41.08 |
|
| 7 D | HCBC0502 | R/B HCBC0520 - M5 x 0.8 - 20 - SHCS - DIN 912 - ISO 4762, | $ 1.09 |
|
| 7 E | HCSP0701 | 7MM TORX FLAT HEAD | $ 2.76 |
|
| 7 F | TCC60017 | WASHER - 5MM BODY PANEL | $ 4.32 |
|
| 7 C | TCC60039GRY | NUMBER PLATE SET - SIDE - CX65 - 2022 - GRAY | $ 41.08 |
|
| 7 G | FCMU0109 | COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021 | $ 10.55 |
|
| 8 | TCMU0045FXX | R/B TCMU0055FXX - FENDER - REAR - 2021 KG & 65 - FXX | $ 33.25 |
|
| 8 | TCMU0045BLK | R/B TCMU0055BLK - FENDER - REAR - 2021 KG & 65 - BLACK | $ 33.25 |
|
| 8 | TCMU0045WHT | FENDER - REAR - 2021 KG & 65 - WHITE | $ 33.25 |
|
| 8 A | HCSP0610BLK | BOLT - SHOULDER - 6MM ALUMINUM - BLACK | $ 3.2 |
|
| 8 B | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $ 2.2 |
|
| GRAPHIC KIT | TCC62023 | GRAPHICS KIT - 2023 - CX65 | $ 110.08 |
|
