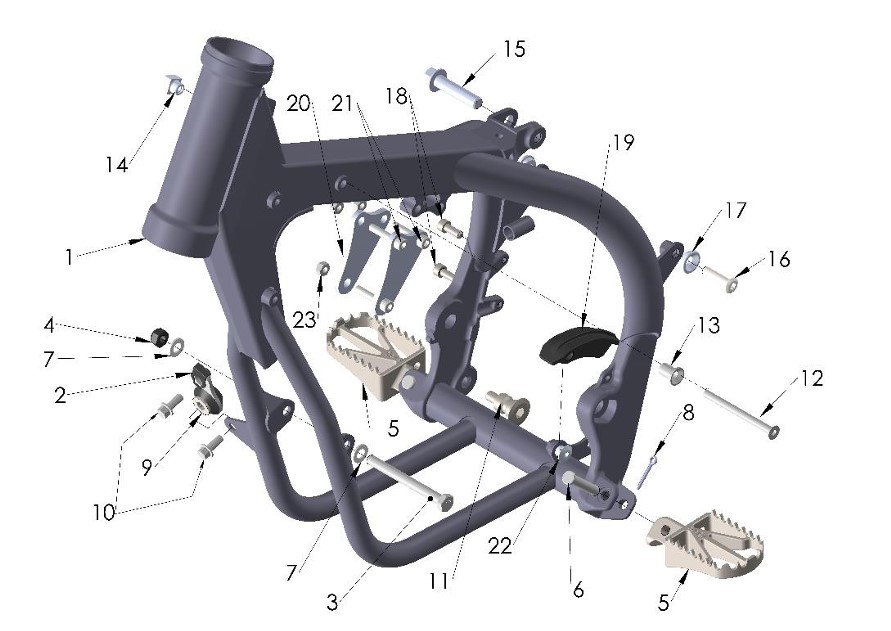

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FACS2024 | FRAME - 2024 - CX50 FWE KING VENOM | $ 664.21 |
|
| 1 ANNIV | FACS2024ANV | FRAME - 2024 ANNIVERSARY CX50 FWE KING VENOM | $ 694.21 |
|
| 2 | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $ 2.2 |
|
| 3 | HCBH0880 | M8 X 80 HH ZINC | $ 6.66 |
|
| 4 | HCNL0803 | M8 LOCKNUT 8MM TALL | $ 2.2 |
|
| 5 | TCMU0139 | ULTRAWIDE FOOTPEG KIT 50cc / 65cc | $ 77.76 |
|
| 5A | TCC60012 | SPRING - FOOTPEG ULTRA WIDE | $ 5.43 |
|
| 6 | FCMU0031 | CLEVIS PIN - FOOTPEG | $ 4.32 |
|
| 7 | HCWF0802 | 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. | $ 0.53 |
|
| 8 | HCCP0008 | COTTERPIN - 1/8` X 3/4` 316 STAINLESS | $ 0.53 |
|
| 9 | XCMU0033 | ISOLATION MOUNT | $ 18.34 |
|
| 10 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 11 | BCMU0027 | PIVOT BOLT - ALUM BRAKE PEDAL | $ 22.12 |
|
| 12 | HCFH0675 | M6 X 75 FLAT HEAD W ZINC | $ 1.09 |
|
| 13 | TCMU0047 | BUSHING-MOUNTING - FLAT HEAD FASTENER | $ 7.65 |
|
| 14 | TCMU0017 | BUSHING - TANK MOUNT - SQUARE THREADED NUT | $ 9.88 |
|
| 15 | HCBF1040 | R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER | $ 7.65 |
|
| 16 | HCSP0701 | 7MM TORX FLAT HEAD | $ 2.76 |
|
| 17 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 18 | TCMU0044 | CHAIN SLIDE - LOWER - 65/KING 2021 | $ 16.56 |
|
| 19 | TCMU0044 | CHAIN SLIDE - LOWER - 65/KING 2021 | $ 16.56 |
|
| 20 | FCCS0075 | HEAD STAY - FW DUAL - 2024 | $ 26.23 |
|
| 21 | HCBF0630 | M6 X 30 FLANGE HD HEX 8MM ZINC | $ 1.09 |
|
| 22 | HCSP0610BLK | BOLT - SHOULDER - 6MM ALUMINUM - BLACK | $ 3.2 |
|
| 23 | HCNL0601 | M6 LOCKNUT | $ 1.09 |
|
