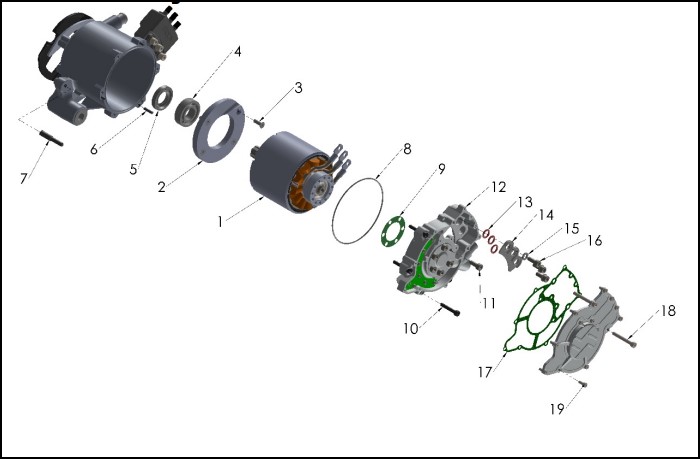

| Ref | Part Number | Description | Retail | |
|---|
| 2 | JCCE50038 | STUFFER - PUMP - COBRA MOTOR | $ 15.88 |
|
| 3 | HCFH0516 | M5 X 16 FLAT HEAD | $ 1.09 |
|
| 4 | ECKGBR01 | BEARING OUTPUT- 50 & 65 | $ 29.91 |
|
| 5 | JCCE50031 | SEAL - MOTOR HOUSING 20x38x7 HSMSA10 RG | $ 12.88 |
|
| 6 | ECDC0051 | DOWEL PIN 4X16.0 | $ 2.2 |
|
| 7 | DCCE10011 | STUD - REAR BATTERY MOUNT M8 TO M6 | $ 4.95 |
|
| 7 A | ECC60107 | STUD - CYLINDER HEAD 6MM X 41MM | $ 5.43 |
|
| 8 | ZCCE5OR03 | ORING - 2 mm WIDE - 102 mm ID | $ 9.88 |
|
| 9 | ZCCE50002 | GASKET - STATOR TUBE TO CASE - .4 THICK | $ 9.88 |
|
| 10 | HCBC0504 | M5 X 40 SHCS ZINC | $ 1.09 |
|
| 11 | HCBC0503 | R/B HCBC0530 - M5 X 30 SHCS ZINC | $ 1.09 |
|
| 12 | JCCEMU001 | HOUSING - MOTOR - WIRE SIDE | $ 148.88 |
|
| 13 | ZCCEMUOR1 | ORING - 2.0mm X 9.5mm ID - MOTOR HOUSING | $ 2.28 |
|
| 14 | JCCE50037 | INSULATOR - PHASE - COBRA MOTOR | $ 2.88 |
|
| 15 | HCWF0601 | M6 FLAT WASHER DIN 125A - ZINC CLEAR | $ 0.53 |
|
| 16 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 17 | ZCCEMU001 | GASKET - PHASE COVER TO CASE | $ 15.88 |
|
| 18 | HCBC0504 | M5 X 40 SHCS ZINC | $ 1.09 |
|
| 19 | HCBC0410 | M4 x 0.7 x 10 - SHCS - ZINC | $ 1.09 |
|
| 19 A | HCBC0408 | M4 x 0.7 x 8 - SHCS - ZINC | $ 1.09 |
|
| FLUID | MCMUMF32 | ELECTRIC MOTOR FLUID - 32 OZ BOTTLE | $ 28.88 |
|
