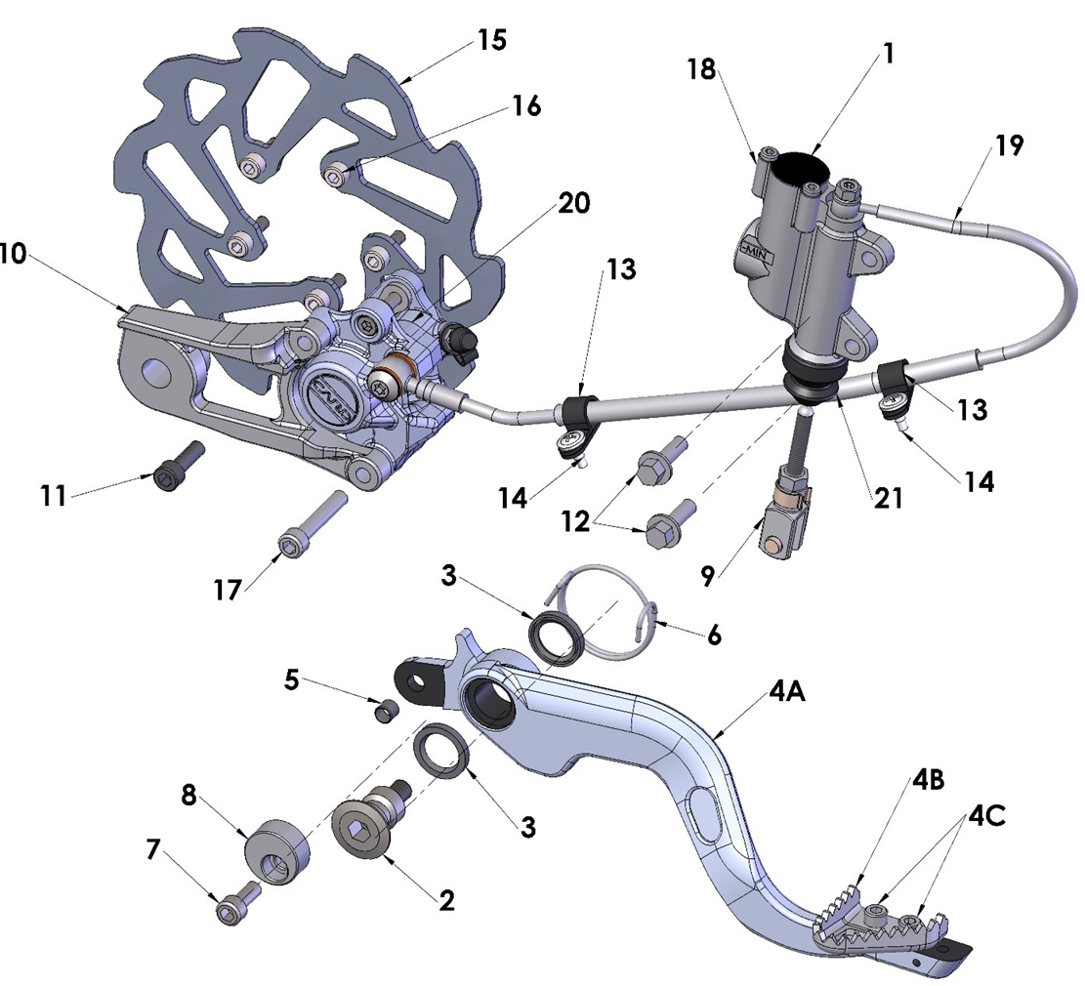

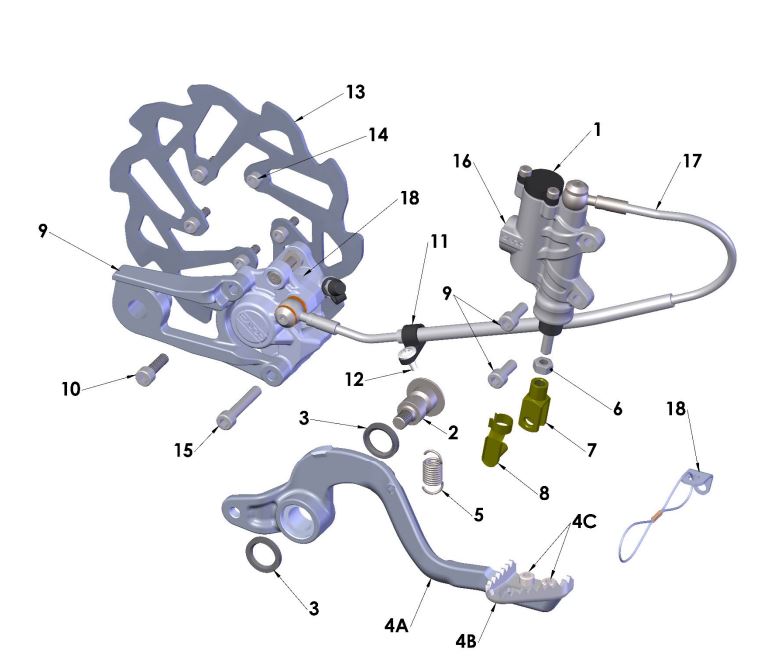

| Ref | Part Number | Description | Retail | |
|---|
| 1 | BACJ0004 | COMPLETE ASSY - JR 2024 -2025 REAR BRAKE - CAPTURED CLEVIS | $ 294.88 |
|
| 2 | BCMU0027 | PIVOT BOLT - ALUM BRAKE PEDAL | $ 22.12 |
|
| 3 | BCMU0501 | SEAL - BRAKE PEDAL | $ 3.2 |
|
| 4 A | BCMU0069 | ASM - PEDAL - BRAKE - IN TIGHT NO STOP | $ 83.32 |
|
| 4 B | BCMU0023T | TOE PIECE - REAR BRAKE PEDAL | $ 18.9 |
|
| 4 C | HCBC0512 | M5 X 12 SHCS ZINC | $ 1.09 |
|
| 5 | BCMUSP01 | SPRING-BRAKE PEDAL | $ 5.43 |
|
| 6 | HCNS0601 | M6 NUT DIN 934 CLASS 8 - ZINC CLEAR | $ 0.53 |
|
| 7 | BCMU0015A | BRAKE CLEVIS | $ 5.88 |
|
| 8 | BCMU0015B | BRAKE RETAINING SPRING PIN | $ 5.43 |
|
| 9 | BCMU0045 | BRAKE CARRIER - 10IN REAR - CARD 2 PISTON | $ 76.65 |
|
| 10 | HCBC0620 | M6 X 20 SHCS ZINC | $ 1.09 |
|
| 11 | HCCC0000 | CABLE CLAMP-3/8 INCH | $ 1.09 |
|
| 12 | HCPP0832 | #8X1/2 SELF TAPPING SCREW | $ 1.09 |
|
| 13 | BCMU0222 | ROTOR - BRAKE - FRONT/REAR - 50CC CARD | $ 65.52 |
|
| 14 | HCBC0514 | M5 X 14 SHCS ZINC | $ 1.09 |
|
| 15 | HCBF0635 | M6 X 35 FLANGE HD HEX 8MM ZINC 8.8 | $ 1.09 |
|
| 16 | BACJ0006 | MASTER CYLINDER - JR REAR thru 2024 - CAPTURED CLEVIS | $ 164.88 |
|
| 17 | BCMU0047B | HOSE - REAR BRAKE - BENT - CARD KING | $ 54.39 |
|
| 18 | BAMU0010A | CALIPER ASSY - 50 REAR - CARD 2 PISTON - ALUMINUM ORG | $ 143.42 |
|
| 19 | BAMU0015 | ASSEMBLY - BRAKE SNAKE - CX50 | $ 14.88 |
|
| ACCESSORY 0 | BCMU0014 | SHIM BRAKE CALIPER MOUNT 12 x 0.2 x 6 | $ 1.09 |
|
| ACCESSORY 1 | BKMU0009 | PAD KIT - ORGANIC 505 - CARD 2 PISTON - PADS BOLT AND CLIP | $ 32.8 |
|
| ACCESSORY 2 | BCMU0038 | SPRING - BRAKE PAD SEPARATING - CARD 2 PISTON | $ 9.88 |
|
| ACCESSORY 3 | BKMU0006 | KIT - PISTON AND SEALS - CARD 2 PISTON - STAINLESS | $ 32.14 |
|
| ACCESSORY 4 | BKMU0008 | BLEED SCREW W / CAP - CARD 2 PISTON | $ 13.67 |
|
| ACCESSORY 5 | BCC60034 | CAP - BRAKE/CLUTCH BLEED SCREW | $ 5.08 |
|
| ACCESSORY 6 | HCBB0640 | M6 X 40 BUTTON HEAD CS SS316 | $ 2.88 |
|
| ACCESSORY 7 | BKMU0013 | KIT - CAP AND DIAPHRAGM - REAR CARD MASTER CYL | $ 15.88 |
|
| ACCESSORY 8 | BKMU0014 | REBUILD KIT - REAR - MASTER CYLINDER - CAPTURED 35&40mm | $ 36.7 |
|
| ACCESSORY 9 | BKMU0007 | KIT - BANJO BOLT AND WASHERS - CARD 2 PISTON | $ 13.22 |
|
| TOOL | BKMU0003 | TOOL - BLEEDING KIT - FORMULA - CARD - AJP | $ 43.26 |
|
