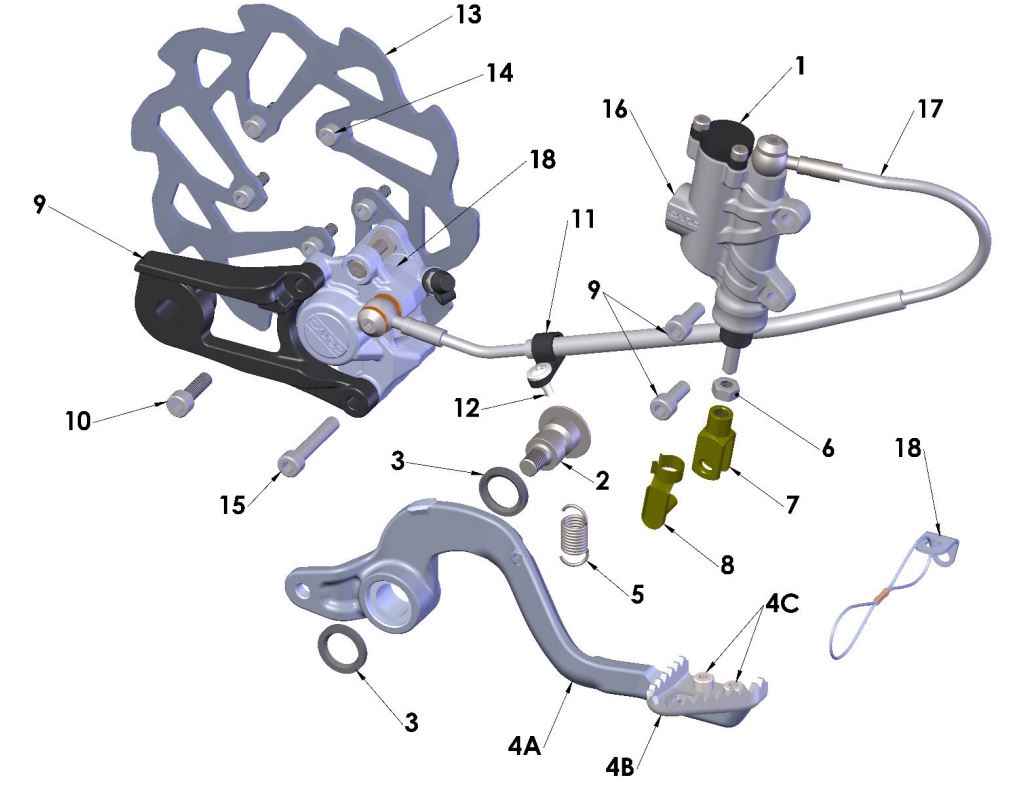

| Ref | Part Number | Description | Retail | |
|---|
| 1 | BACS0002 | ASSY - REAR BRAKE -CAPTURD CLEVIS -KG FWE 2024 | $ 294.88 |
|
| 2 | BCMU0027 | PIVOT BOLT - ALUM BRAKE PEDAL | $ 22.12 |
|
| 3 | BCMU0501 | SEAL - BRAKE PEDAL | $ 3.2 |
|
| 4 | BCMU0069 | ASM - PEDAL - BRAKE - IN TIGHT NO STOP | $ 83.32 |
|
| 4B | BCMU0023T | TOE PIECE - REAR BRAKE PEDAL | $ 18.9 |
|
| 4C | HCBC0512 | M5 X 12 SHCS ZINC | $ 1.09 |
|
| 5 | BCMUSP01 | SPRING-BRAKE PEDAL | $ 5.43 |
|
| 6 | BCMU0015A | BRAKE CLEVIS | $ 5.88 |
|
| 7 | BCMU0015B | BRAKE RETAINING SPRING PIN | $ 5.43 |
|
| 8 | BCMU0045BLK | BRAKE CARRIER - 10IN REAR - CARD 2 PISTON - BLACK | $ 76.65 |
|
| 9 | HCBC0620 | M6 X 20 SHCS ZINC | $ 1.09 |
|
| 10 | HCCC0000 | CABLE CLAMP-3/8 INCH | $ 1.09 |
|
| 11 | HCPP0832 | #8X1/2 SELF TAPPING SCREW | $ 1.09 |
|
| 12 | BCMU0222 | ROTOR - BRAKE - FRONT/REAR - 50CC CARD | $ 65.52 |
|
| 13 | HCBC0514 | M5 X 14 SHCS ZINC | $ 1.09 |
|
| 14 | HCBF0635 | M6 X 35 FLANGE HD HEX 8MM ZINC 8.8 | $ 1.09 |
|
| 15 | BAMU0013 | MASTER CYLINDER REAR - COMPLETE -CARD 11 | $ 154.54 |
|
| 16 | BCMU0047B | HOSE - REAR BRAKE - BENT - CARD KING | $ 54.39 |
|
| 17 | BAMU0010A | CALIPER ASSY - 50 REAR - CARD 2 PISTON - ALUMINUM ORG | $ 143.42 |
|
| 18 | BAMU0015 | ASSEMBLY - BRAKE SNAKE - CX50 | $ 14.88 |
|
| BRAKE PADS | BKMU0009 | PAD KIT - ORGANIC 505 - CARD 2 PISTON - PADS BOLT AND CLIP | $ 32.8 |
|
| CALIPER 1 | BCMU0038 | SPRING - BRAKE PAD SEPARATING - CARD 2 PISTON | $ 9.88 |
|
| CALIPER 2 | BKMU0006A | R/B BKMU0006-KIT - PISTON AND SEALS - CARD 2 PISTON - ALUM | $ 32.14 |
|
| CALIPER 3 | BKMU0008 | BLEED SCREW W / CAP - CARD 2 PISTON | $ 13.67 |
|
| CALIPER 4 | BCC60034 | CAP - BRAKE/CLUTCH BLEED SCREW | $ 5.08 |
|
| CALIPER 5 | BKMU0013 | KIT - CAP AND DIAPHRAGM - REAR CARD MASTER CYL | $ 15.88 |
|
| CALIPER 6 | BKMU0007 | KIT - BANJO BOLT AND WASHERS - CARD 2 PISTON | $ 13.22 |
|
| CALIPER 7 | BCMU0014 | SHIM BRAKE CALIPER MOUNT 12 x 0.2 x 6 | $ 1.09 |
|
| MASTER KIT | BKMU0014 | REBUILD KIT - REAR - MASTER CYLINDER - CAPTURED 35&40mm | $ 36.7 |
|
| NOT SIOWN | BKMU0002 | ASSEMBLY - BRAKE SNAKE - WITH E MOTO BRACKET | $ 14.88 |
|
| TOOL | BKMU0003 | TOOL - BLEEDING KIT - FORMULA - CARD - AJP | $ 43.26 |
|
