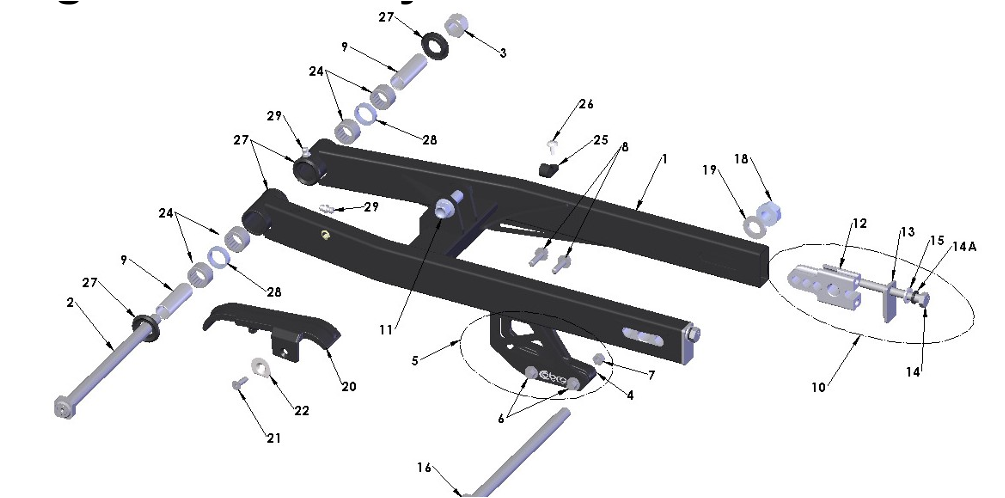

| Ref | Part Number | Description | Retail | |
|---|
| 1 | GACS2025 | SWINGARM WELDED ASSY- NEEDLE BRNG - 2025 - | $ 264.88 |
|
| 2 | GCMU0021 | BOLT - TITANIUM - SWINGARM PIVOT - 2021 CX50 SHORTER | $ 143.42 |
|
| 3 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| 4 | PCMU0060MP | CHAIN GUIDE - COMBINED SLIDER BOTTOM AND INSIDE | $ 10.99 |
|
| 5 | PAMU0001 | CHAIN GUIDE ASSY - 50s AND MICRO e | $ 49.98 |
|
| 6 | HCBF0625 | M6 X 25 FLANGED HD HEX 8MM ZINC | $ 1.09 |
|
| 7 | HCNL0601 | M6 LOCKNUT | $ 1.09 |
|
| 8 | HCBF0620 | M6 X 20 FLANGE HD HEX 8MM ZINC 8.8 | $ 1.09 |
|
| 9 | GCC60019 | SPACER TUBE - SWINGARM PIVOT | $ 28.8 |
|
| 10 | FAMU0005 | WHEEL PULL ASSEMBLY | $ 32.25 |
|
| 11 | HCBF1040 | R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER | $ 7.65 |
|
| 12 | FCMU0203 | WHEEL PULL | $ 24.35 |
|
| 13 | FCMU0202 | ENDCAP - WHEEL PULL - KING & CM | $ 8.77 |
|
| 14 | HCBH0810 | R/B HCBH1865 M8 X 65 HH FULL THREADS ZINC | $ 1.54 |
|
| 14 A | HCWL0801 | 8MM LOCK WASHER STANDARD | $ 0.53 |
|
| 15 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 16 | GCMU0020 | BOLT - TITANIUM - SWINGARM PIVOT and AXLE - CX50 | $ 143.42 |
|
| 18 | WCMU0038 | NUT - 12MM ACORN - ALUM | $ 20.79 |
|
| 19 | HCWF1202 | 12MM FLAT WASHER | $ 0.53 |
|
| 20 | GCMU0041 | SWINGARM CHAIN GUARD - CX50 - WITH MOHAWK AND FOOT | $ 16.56 |
|
| 21 | HCFH0516 | M5 X 16 FLAT HEAD | $ 1.09 |
|
| 22 | GCMU0038 | WASHER - RETAINING - SWINGARM GUARD | $ 4.32 |
|
| 23 | HCNL0501 | M5 LOCKNUT | $ 1.09 |
|
| 24 | GCC60017 | BEARING - DRAWN CUP CAGED NEEDLE - SWINGARM PIVOT - 15 22 12 | $ 18.78 |
|
| 25 | HCCC0006 | CABLE CLAMP-7/16 INCH BLACK | $ 1.09 |
|
| 26 | HCPP0801 | #8X1/2 SELF THREAD CUTTING SCREW - FLAT HEAD - TORX | $ 1.09 |
|
| 27 | GCMU0047 | SEAL THRUST BEARING - SWINGARM - ALL 2025 | $ 9.88 |
|
| 28 | GCMU0048 | SPACER - SWINGARM NEEDLE BEARING - 50CC | $ 29.88 |
|
| 29 | GCMU0012 | GREASE FITTING SMALL - ZERK | $ 1.73 |
|
| TOOL | MCMUTL26 | TOOL - BEARING REMOVAL - NEEDLE SWINGARM | $ 74.88 |
|
