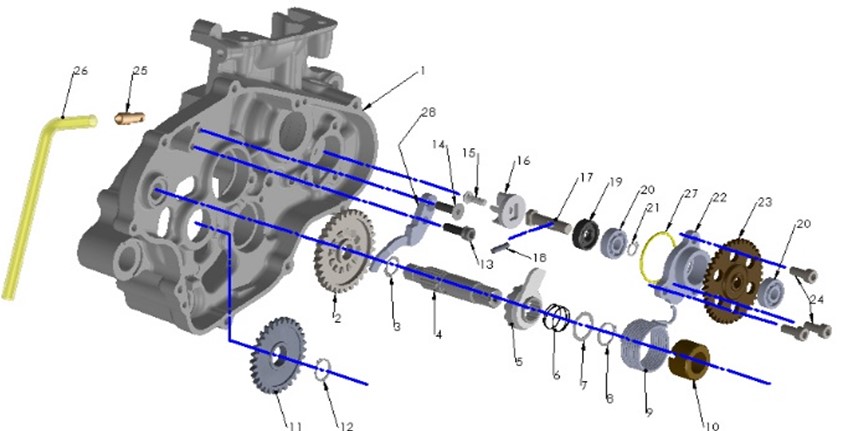

| Ref | Part Number | Description | Retail | |
|---|
| 1 | EKC62024 | ENGINE CASE SET - CX65 WITH BEARINGS AND SEALS | $ 758.88 |
|
| 2 | ECDC0033 | GEAR - KICKSTARTER | $ 68.86 |
|
| 3 | ECDC0035 | SNAP RING - EXT 12MM-GEAR RET | $ 2.2 |
|
| 4 | ECC60203 | SHAFT - KICK STARTER - THREADED V3 | $ 77.76 |
|
| 5 | ECC60201 | GEAR - KICK RAMP - NO ARMS | $ 53.28 |
|
| 6 | ECDC0042 | SPRING RAMP KICK START MANUAL | $ 6.66 |
|
| 7 | ECDC0043 | WASHER - KICKSTART BACKUP | $ 2.2 |
|
| 8 | ECDC0036 | SNAP RING - EXT 16MM - SPRING RET | $ 2.2 |
|
| 9 | ECC60067 | SPRING KICK START CX65 | $ 43.26 |
|
| 10 | ECC60202 | SPACER - KICK SPRING CENTERING - 2015 | $ 9.88 |
|
| 11 | ECDC0032 | GEAR - KICK STARTER IDLER | $ 73.31 |
|
| 12 | ECDC0037 | SNAP RING - EXT 15MM - IDLER RET | $ 2.2 |
|
| 13 | ECMU0174 | HOLDER - KICK SPRING - M6 X 20 | $ 9.43 |
|
| 14 | HCFH0616 | M6 X 16 FLAT HEAD W ZINC | $ 1.09 |
|
| 15 | HCBB0403 | M4X8 BUTTON HEAD SS | $ 1.09 |
|
| 16 | ECKG0073 | WATERPUMP IMPELLER ALUMINUM | $ 33.25 |
|
| 17 | ECC60173 | SHAFT - WATERPUMP - 2015 | $ 21.01 |
|
| 18 | ECDC0051 | DOWEL PIN 4X16.0 | $ 2.2 |
|
| 19 | ECC60175 | SEAL - WATERPUMP 8x22x7TC | $ 6.66 |
|
| 20 | ECC60174 | BEARING - WATERPUMP 608 - 2015 | $ 9.88 |
|
| 21 | ECC60176 | SNAP RING - WATERPUMP - 2015 | $ 0.53 |
|
| 22 | ECC60177 | HOUSING - WATERPUMP - 2015 | $ 43.26 |
|
| 23 | ECC60172 | GEAR - WATERPUMP DRIVE - PLASTIC - 2015 | $ 33.25 |
|
| 24 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 25 | ECMU0233 | R/B ECMU0233P - VENT HOSE NIPPLE (LARGE) | $ 9.88 |
|
| 26 | ECMU0534 | HOSE CRANKCASE VENT - pre 2010 50 and up to current 65 | $ 1.64 |
|
| 27 | ZCMUOR07 | O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP | $ 4.43 |
|
| 28 | ECC60200 | RAMP W STOP - KICK MECHANISM | $ 22.12 |
|
